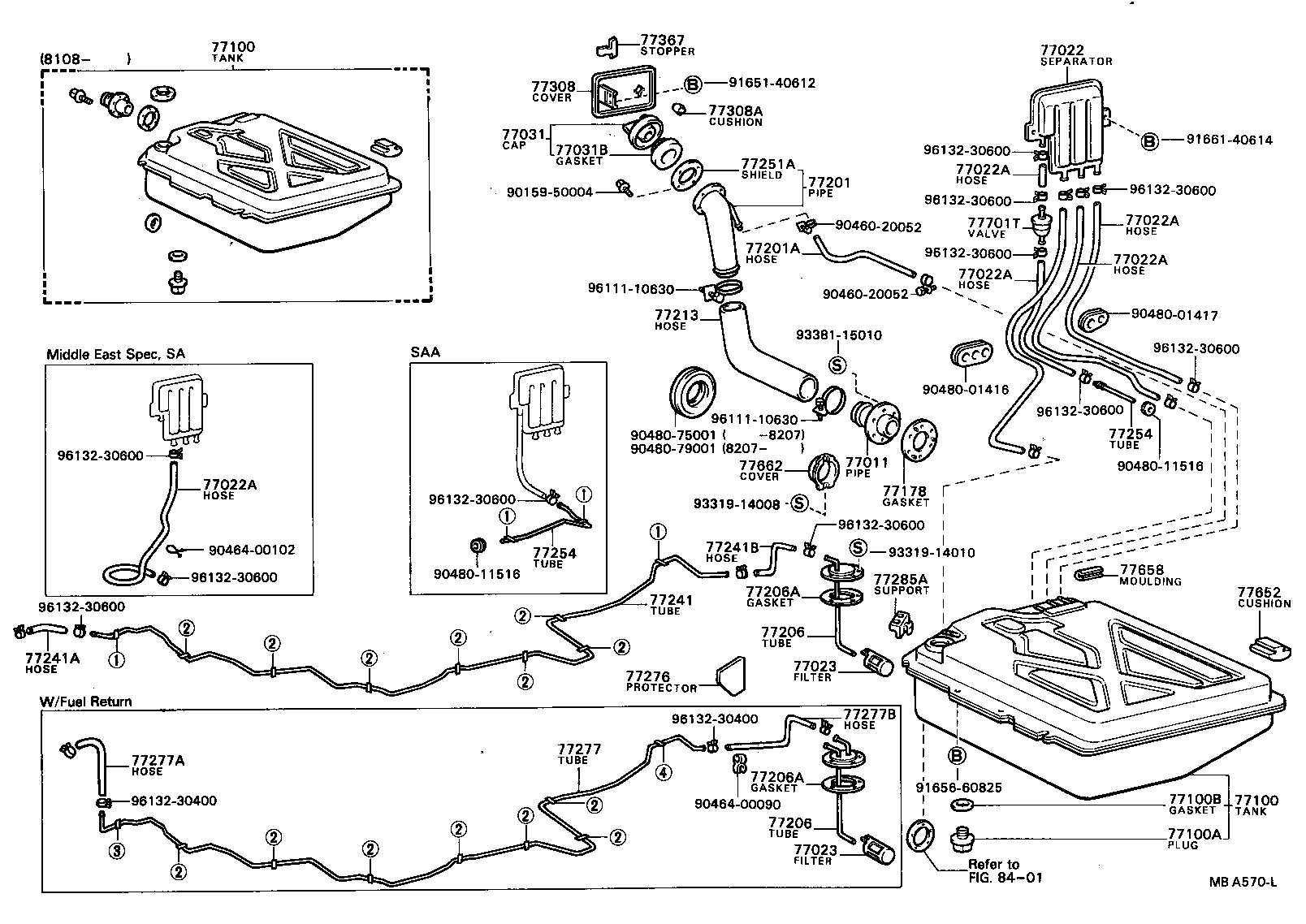

TE71RG-EWHDS (1979)
Toyota Corolla
(7908-8305)DV,WG..EUR,GEN,SA,SAA ; (8305-8408)DV,WG..GEN,SA,SAA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-13010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-13010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
KE70,TE71..DV,WG *H,L=50 |
1 | ||
| 90445-12040 |
KE70,TE71..DV,WG L=630 |
1 | ||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
KE70,TE71..DV,WG *H,L=50 |
1 | ||
| 90445-12040 |
KE70,TE71..DV,WG L=630 |
1 | ||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
KE70,TE71..DV,WG *H,L=50 |
1 | ||
| 90445-12040 |
KE70,TE71..DV,WG L=630 |
1 | ||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
KE70,TE71..DV,WG *H,L=50 |
1 | ||
| 90445-12040 |
KE70,TE71..DV,WG L=630 |
1 | ||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
KE70,TE71..DV,WG *H,L=50 |
1 | ||
| 90445-12040 |
KE70,TE71..DV,WG L=630 |
1 | ||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AE71,KE70,TE7# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AE71,KE70,TE7# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12090 |
KE70,TE7# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AE71,CE70,KE70,TE7# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77101-13900 |
KE70,TE71..DV,WG |
1 | ||
| 77101-19025 |
KE70,TE71..(DV,WG)..(EUR,GEN,SAA) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77101-13900 |
KE70,TE71..DV,WG |
1 | ||
| 77101-19025 |
KE70,TE71..(DV,WG)..(EUR,GEN,SAA) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
KE70,TE7# OD=46 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
KE70,TE7# OD=42 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-13070 |
KE70,TE71..DV,WG |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-18002 |
KE70,TE71..DV,WG |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-13050 |
KE70,TE71..DV,WG |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-13050 |
KE70,TE71..DV,WG |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
AE71,CE70,KE70,TE7# |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
AE71,CE70,KE70,TE7# |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-13040 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-13041 |
KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA) |
1 | ||
| 77251-13040 |
KE70,TE71..DV,WG |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
AE71,KE70,TE7# *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90445-12085 |
KE70,TE71..DV,WG L=220 |
1 | ||
| 77251A - SHIELD, FUEL TANK, INLET, NO.2 | ||||
| 77291-22010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-13031 |
KE70,TE71..DV,WG |
1 | ||
| 77263-13031 |
KE70,TE71..(DV,WG)..(EUR,GEN,SA) |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-13031 |
KE70,TE71..DV,WG |
1 | ||
| 77263-13031 |
KE70,TE71..(DV,WG)..(EUR,GEN,SA) |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-13020 |
AE71,KE70,TE71..DV,WG |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-13020 |
KE70,TE71..DV,WG |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06001 |
AE71,CE70,KE70,TE71..DV,WG |
2 | ||
| 77367 - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-13010 |
KE70,TE71..DV,WG |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-13020 |
AE71,CE70,KE70,TE71..DV,WG |
3 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-12010 |
AE71,CE70,KE70,TE7# |
2 | ||
| 77662 - COVER, FUEL TANK GAGE | ||||
| 77662-13010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA |
1 | ||
| Common parts | ||||
| 90159-50004 | ||||
| 90460-20052 | ||||
| 90464-00090 | ||||
| 90464-00102 | ||||
| 90480-01416 | ||||
| 90480-01417 | ||||
| 90480-11516 | ||||
| 90480-75001 | ||||
| 90480-79001 | ||||
| 91651-40612 | ||||
| 91656-60825 | ||||
| 91661-40614 | ||||
| 93319-14008 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96111-10630 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-12111 | ||||
| 90461-12142 | ||||
| 90461-12143 | ||||
| 90461-12144 | ||||
| 90461-12224 | ||||
| 90461-12243 | ||||
| 90461-12275 | ||||
| 90480-01062 | ||||
| 90480-01085 | ||||
| 90480-01086 | ||||
| 90480-01087 | ||||
| 90480-01088 | ||||
| 90480-01092 | ||||
| 90480-01144 | ||||
| 90480-07002 | ||||
| 91651-40614 | ||||
| 96222-20714 | ||||
| Linked diagrams | ||||
| 8716 | ||||
