TE71R-ELKDSW (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1980
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7908-8406)CP,LB..RHD

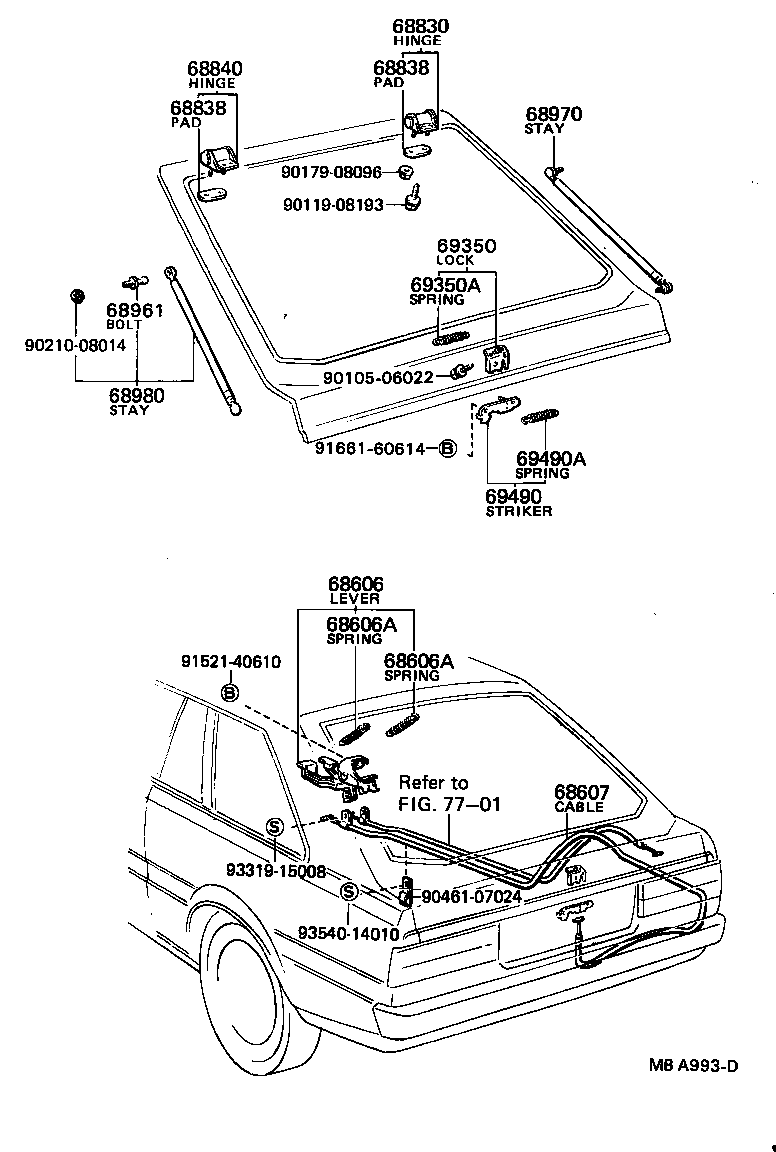

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68801-14020 |
KE70,TE7#..CP,LB |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-14020 |
KE70,TE7#..CP,LB |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-14020 |
KE70,TE7#..CP,LB |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68801-14020 |
KE70,TE7#..CP,LB |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-14010 |
KE70,TE7#..CP,LB |
4 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19125 |
KE70,TE7#..LB W/RR WINDOW WIPER |
1 | ||
| 68950-19115 |
KE70,TE7#..LB..(EUR,GEN,SA,SAA) |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68950-19125 |
KE70,TE7#..LB W/RR WINDOW WIPER |
1 | ||
| 68950-19115 |
KE70,TE7#..LB..(EUR,GEN,SA,SAA) |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-20010 |
KE70,TE7#..CP,LB |
1 | ||
| 69350A - SPRING(FOR BACK DOOR LOCK) | ||||
| 90506-07006 |
KE70,TE7#..CP,LB |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-20020 |
KE70,TE7#..CP,LB |
1 | ||
| 69490A - SPRING(FOR BACK DOOR LOCK STRIKER) | ||||
| 90506-08001 |
KE70,TE7#..CP,LB |
1 | ||
| Common parts | ||||
| 90105-06022 | ||||
| 90119-08193 | ||||
| 90179-08096 | ||||
| 90210-08014 | ||||
| 90461-07024 | ||||
| 91521-40610 | ||||
| 91661-60614 | ||||
| 93319-15008 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 7701 | ||||
