TE71R-EEMNBN (1980)
Toyota Corolla
Production
Jul 1980
-
Apr 1982
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

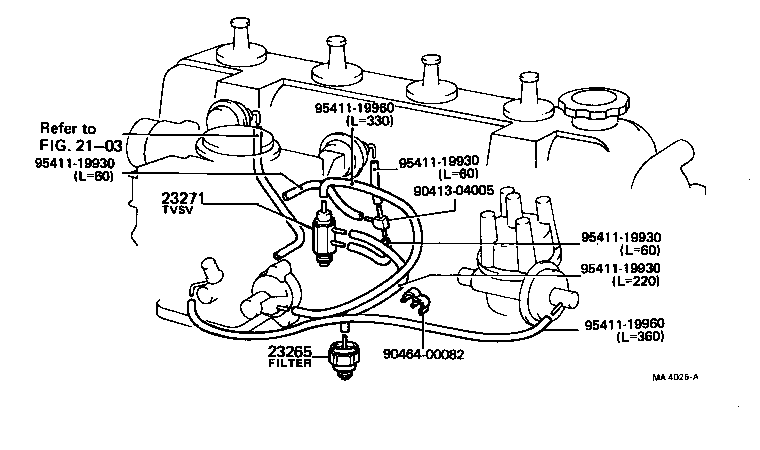

(7908-8108)2T,3T..GEN,SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
2T,3T..TE7#..SA |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02048 |
2T,3T#..TE7# |
1 | ||
| 90925-02048 |
2T,3T..TE7#..SA |
1 | ||
| 90925-02048 |
2T,3T..TE7# |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||

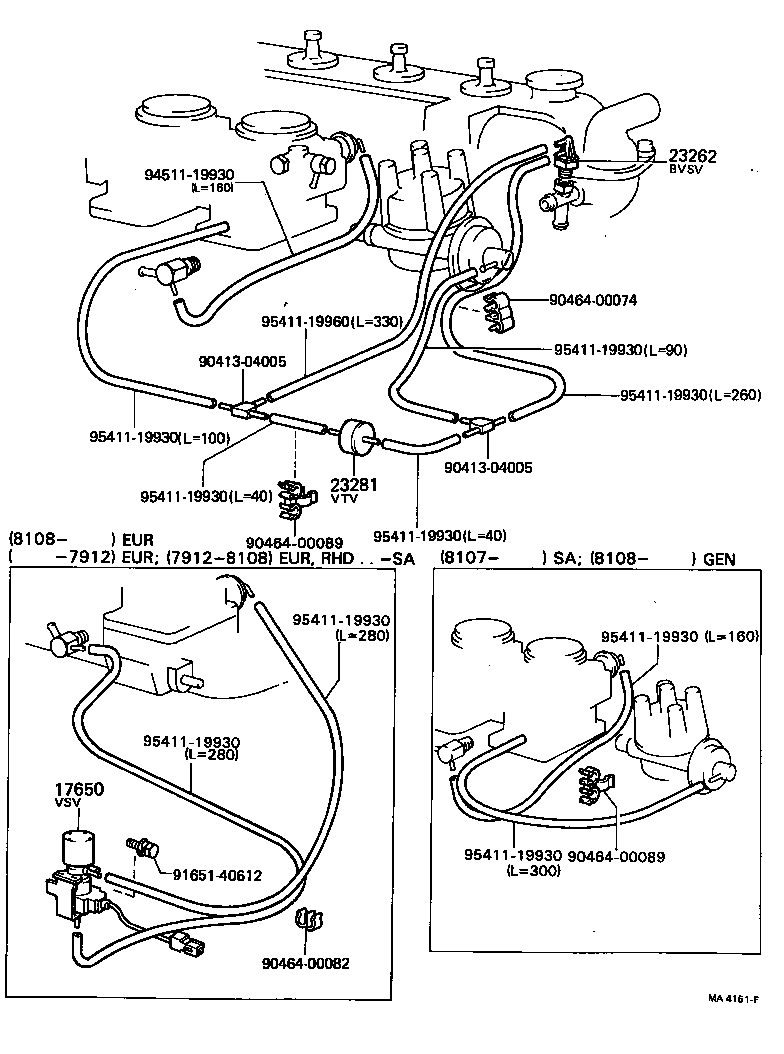

(7908-8305)2TB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05044 |
2TB..TE71 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
2TB..TE71 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 91651-40612 | ||||
| 94511-19930 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
