TE71R-EEMNBN (1980)
Toyota Corolla
Production
Jul 1980
-
Apr 1982
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8007-8012)2T,2TB..SA

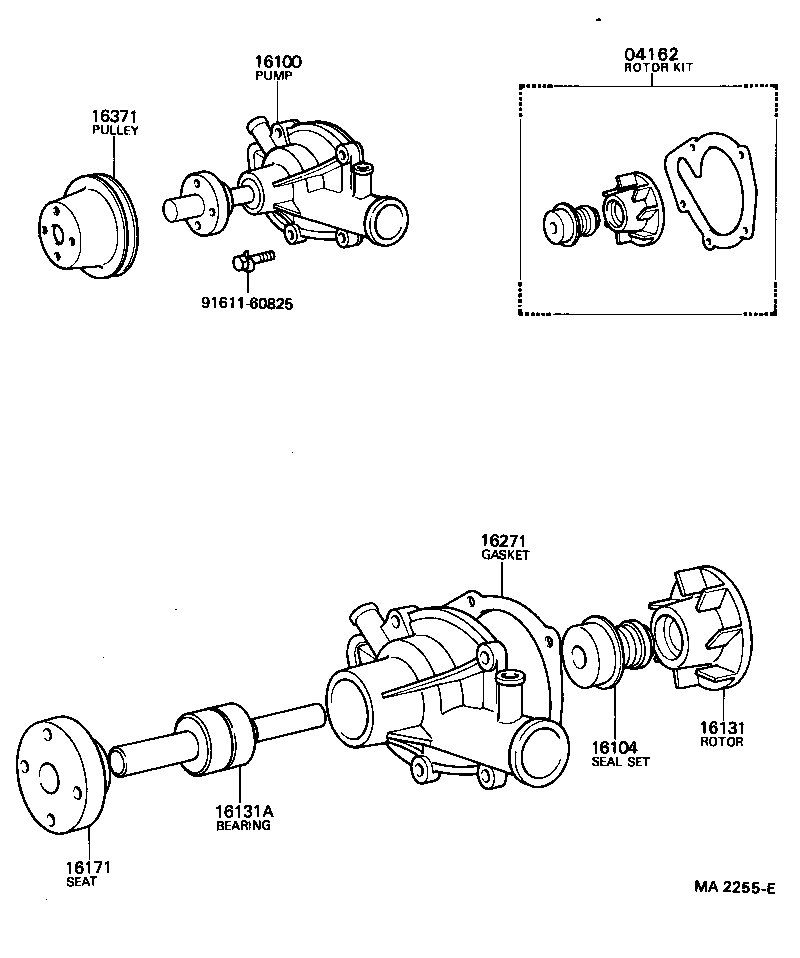

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04162 - ROTOR KIT, WATER PUMP | ||||
| 04162-28010 |
2T#,3T#..TE7# |
1 | ||
| 04162-28020 |
2T#,3T#..TE7# |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-25012 |
2T,2TB..TE71..SA |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41110 |
2T,2TB,3T#..TE7# |
1 | ||
| 16104-22010 |
2T,2TB..TE71..SA |
1 | ||
| 16104-41110 |
2T#,3TC..TE7# |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-25011 |
2T,2TB..TE71..SA |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30035 |
2T,2TB..TE71..SA |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-31030 |
2T,2TB..TE71..SA |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16129-25011 |
2T,2TB,3TC..TE7# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-25010 |
2T,2TB..TE71..SA |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
(7908-8012)2T,2TB,3TC..ARL,EUR,GEN ; (8007-8012)3T ; (8012-8502)2T,2TB,3T#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-28010 |
2T#,3T#..TE7# |
1 | ||
| 04161-28011 |
2T#,3T#..TE7# |
1 | ||
| 04162 - ROTOR KIT, WATER PUMP | ||||
| 04162-28010 |
2T#,3T#..TE7# |
1 | ||
| 04162-28020 |
2T#,3T#..TE7# |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-25012 |
2T,2TB..TE71..SA |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41110 |
2T,2TB,3T#..TE7# |
1 | ||
| 16104-22010 |
2T,2TB..TE71..SA |
1 | ||
| 16104-41110 |
2T#,3TC..TE7# |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-25011 |
2T,2TB..TE71..SA |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30035 |
2T,2TB..TE71..SA |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-31030 |
2T,2TB..TE71..SA |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 90116-06008 |
2T#,3TC..TE7# |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16129-25011 |
2T,2TB,3TC..TE7# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-25010 |
2T,2TB..TE71..SA |
1 | ||
| Common parts | ||||
| 90116-08029 | ||||
| 90170-08008 | ||||
| 90179-06070 | ||||
| 90339-16007 | ||||
| 91611-60825 | ||||
| 94531-00800 | ||||
| 96112-10250 | ||||
