TE71R-EEHDS (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )RHD

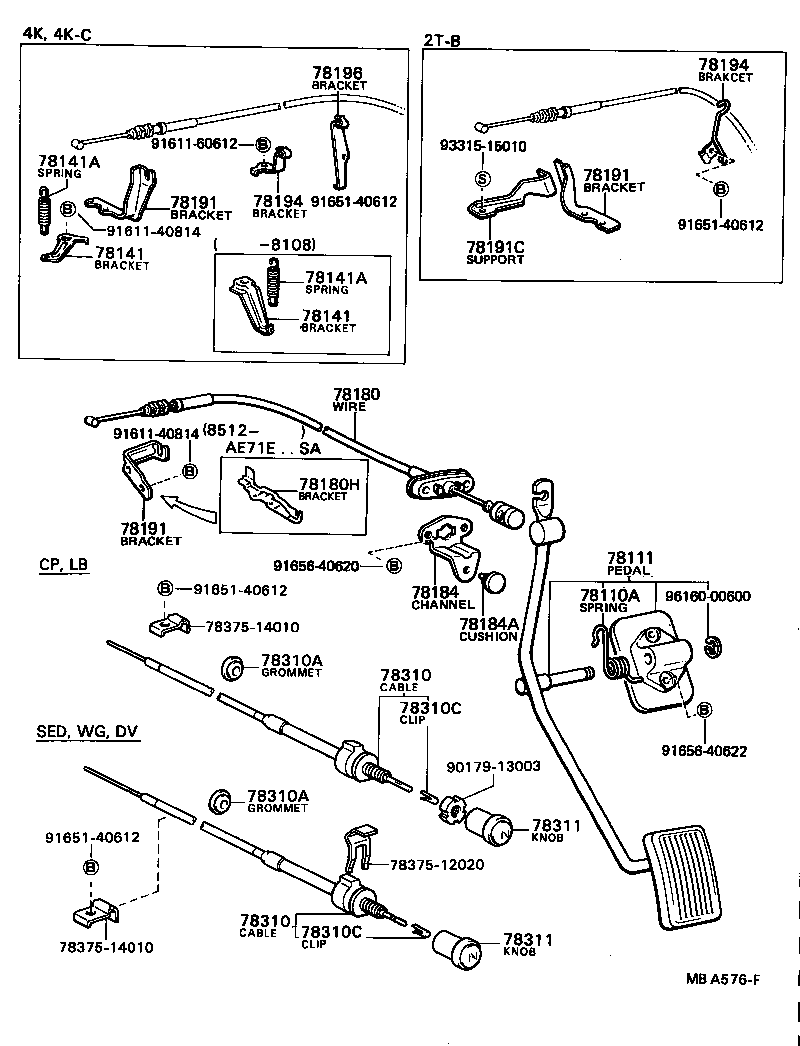

Click highlighted areas on diagram

diagram 78110A 78111 78141 78141 78141A 78141A 78180 78180H 78184 78184A 78191 78191 78191 78191C 78194 78194 78196 78310 78310 78310A 78310A 78310C 78310C 78311 78311 7837512020 7837514010 7837514010 9017913003 9161140814 9161140814 9161160612 9165140612 9165140612 9165140612 9165140612 9165640620 9165640622 9331515010 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18398

KE70..RHD;AE71,CE70,TE7#

 1
78111 - PEDAL, ACCELERATOR
78010-12040

AE71,KE70,TE7#..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-12350

TE71..RHD..(GL,SE,SR,XE)

 1
78180-12290

TE71..RHD..(DX,GL,STD)

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78181-12051

TE7#;KE70..RHD

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

KE70..RHD;AE71,CE70,TE7#

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-12070

TE71..RHD..(GL,SE,SR,XE)

 1
78184-12050

TE71..RHD..(DX,GL,STD)

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-12070

TE71..RHD..(GL,SE,SR,XE)

 1
78184-12050

TE71..RHD..(DX,GL,STD)

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-12070

TE71..RHD..(GL,SE,SR,XE)

 1
78184-12050

TE71..RHD..(DX,GL,STD)

 1
78191C - REINFORCEMENT, ACCELERATOR CONTROL CABLE
78198-12010

TE71..RHD..(GL,SE,SR,XE)

 1
78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2
78186-12100

TE71..RHD..(GL,SE,SR,XE)

 1
78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2
78186-12100

TE71..RHD..(GL,SE,SR,XE)

 1
78310 - CABLE ASSY, CHOKE
78310-12400

TE71..RHD..(SE,SR,XE)

 1
78310-12401

TE71..RHD..(SE,SR,XE)

 1
78310 - CABLE ASSY, CHOKE
78310-12400

TE71..RHD..(SE,SR,XE)

 1
78310-12401

TE71..RHD..(SE,SR,XE)

 1
78310C - CLIP (FOR CHOKE CABLE)
78312-12010

TE71..RHD..SR..EUG;TE71..LHD..(GT,SR,XE)..EUG;TE71..(GL,GT,SE,SR,XE)..(GEN,SA)

 1
78310C - CLIP (FOR CHOKE CABLE)
78312-12010

TE71..RHD..SR..EUG;TE71..LHD..(GT,SR,XE)..EUG;TE71..(GL,GT,SE,SR,XE)..(GEN,SA)

 1
78311 - KNOB, CHOKE CONTROL CABLE
78311-12020

TE71..(GL,GT,SE,SR,XE)..(GEN,SA)

 1
78311 - KNOB, CHOKE CONTROL CABLE
78311-12020

TE71..(GL,GT,SE,SR,XE)..(GEN,SA)

 1
Common parts
78375-12020
78375-14010
90179-13003
91611-40814
91611-60612
91651-40612
91656-40620
91656-40622
93315-15010
96160-00600
