TE71R-EEHDS (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8401)TE7#..3FC

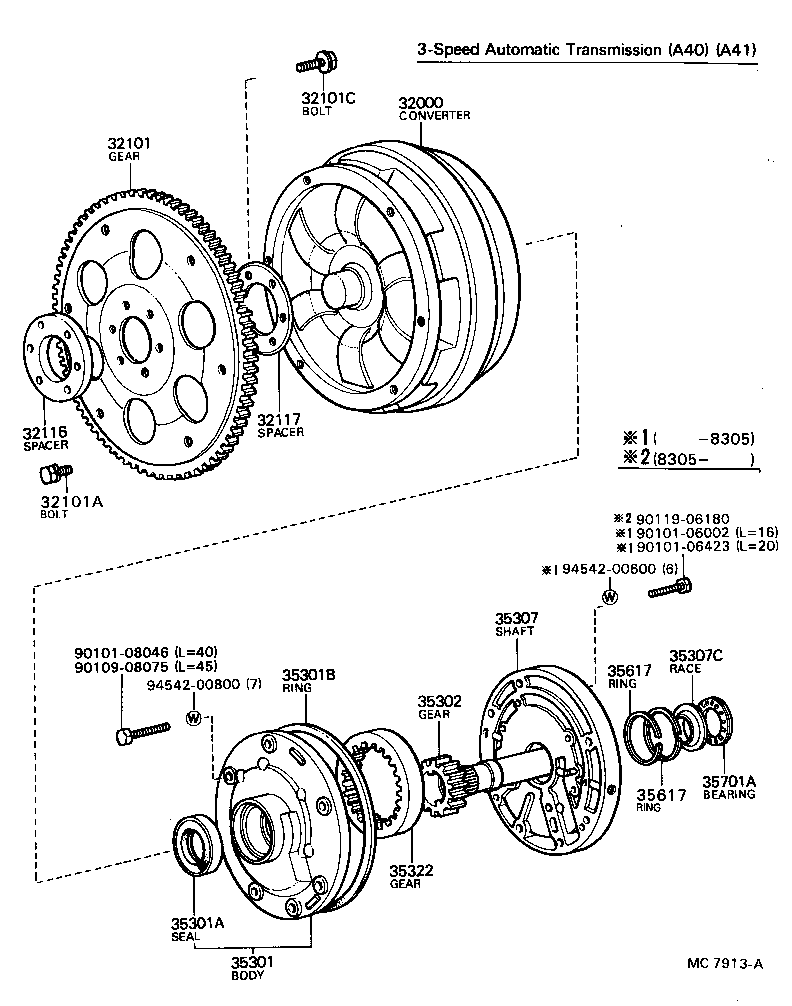

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35302 35307 35307C 35322 35617 35617 35701A 9010106002 9010106423 9010108046 9010908075 9011906180 9454200600 9454200800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-12030

TE7#..3FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-14030

TE7#..ATM

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08223

KE70,TE7#..ATM

*8-1.25PX10.5-6.5

 6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10006

TE7#..3FC

*10-1.25X23-14.5

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-14011

TE7#..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-14011

TE7#..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-22012

TE7#..3FC

 1
35301-30030

TE7#..3FC

 1
35301-22011

TE71..3FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38129

TE7#..3FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

TE7#..3FC

 1
35147-22010

TE71..3FC

 1
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-22010

TE7#..3FC

 1
35307 - SHAFT SUB-ASSY, STATOR
35307-22011

TE7#..3FC

 1
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-22010

TE7#..3FC

T=4.3

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

TE7#..3FC

T=15.286-15.235

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22010

TE7#..3FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22010

TE7#..3FC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-23012

TE7#..3FC

 1
Common parts
90101-06002
90101-06423
90101-08046
90109-08075
90119-06180
94542-00600
94542-00800
