TE71R-EEHDS (1979)
Toyota Corolla
Production
Aug 1979
-
Aug 1981
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7908-8108)3FC

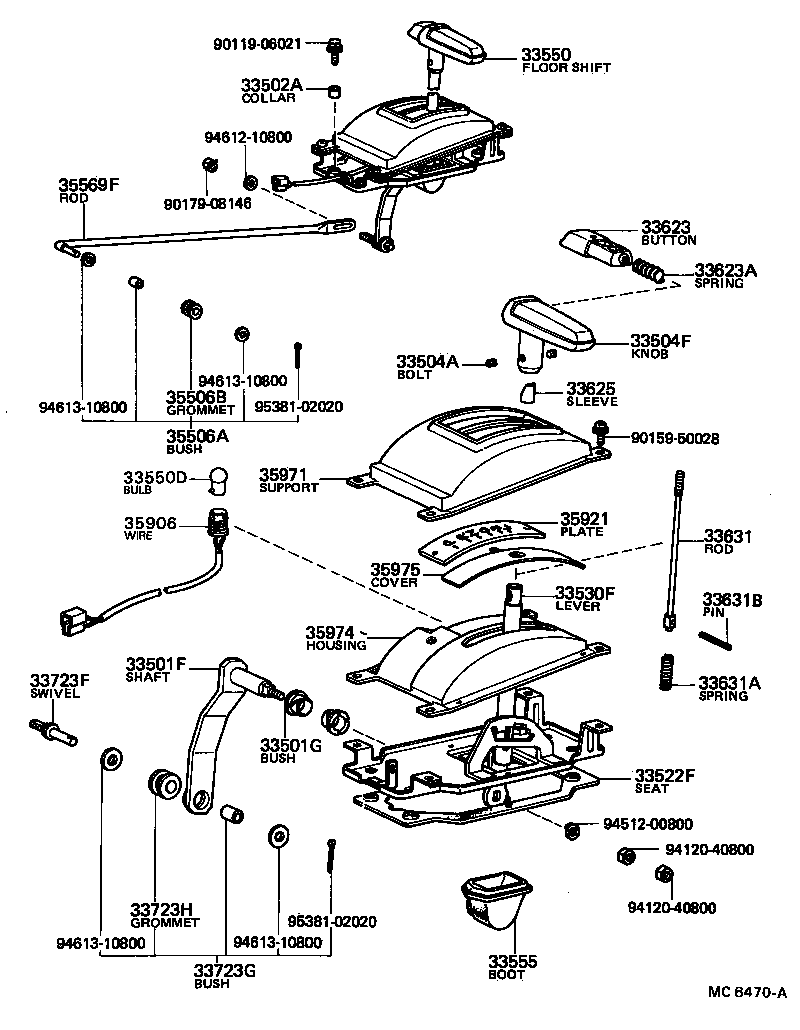

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33501-12100 |
AE71,TE7#..3FC |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-16045 |
AE71,KE70,TE7#..ATM |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06005 |
TE7#..ATM |
1 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
TE7#..ATM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1209001 |
KE70,TE7#..ATM BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT) | ||||
| 33522-12050 |
KE70,TE71..ATM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-12120 |
TE7#..RHD..3FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-12160 |
TE7#..RHD..3FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-11017 |
AE71,KE70,TE7#..ATM 12V 1.7W,12V 1.7W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-12080 |
AE71,KE70,TE7#..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12031 |
KE70,TE7#..ATM |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-09009 |
KE70,TE7#..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
AE71,KE70,TE7#..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-12050 |
KE70,TE7#..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
AE71,KE70,TE7#..ATM |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90254-04017 |
KE70,TE7#..ATM |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
TE7#..3FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
TE7#..3FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
TE7#..3FC |
1 | ||
| 35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90999-99017 |
AE71,TE7#..3FC |
1 | ||
| 35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90480-17177 |
AE71,TE7#..3FC |
1 | ||
| 35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT) | ||||
| 33675-12030 |
TE7#..3FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12030 |
AE71,KE70,TE7#..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12110 |
TE7#..RHD..3FC |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-12050 |
KE70,TE7#..RHD..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12040 |
KE70,TE7#..RHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12070 |
KE70,TE7#..ATM |
1 | ||
| Common parts | ||||
| 90119-06021 | ||||
| 90159-50028 | ||||
| 90179-08146 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
