TE71R-ECMXBW (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )CP,LB,WG ; (8305- )DV

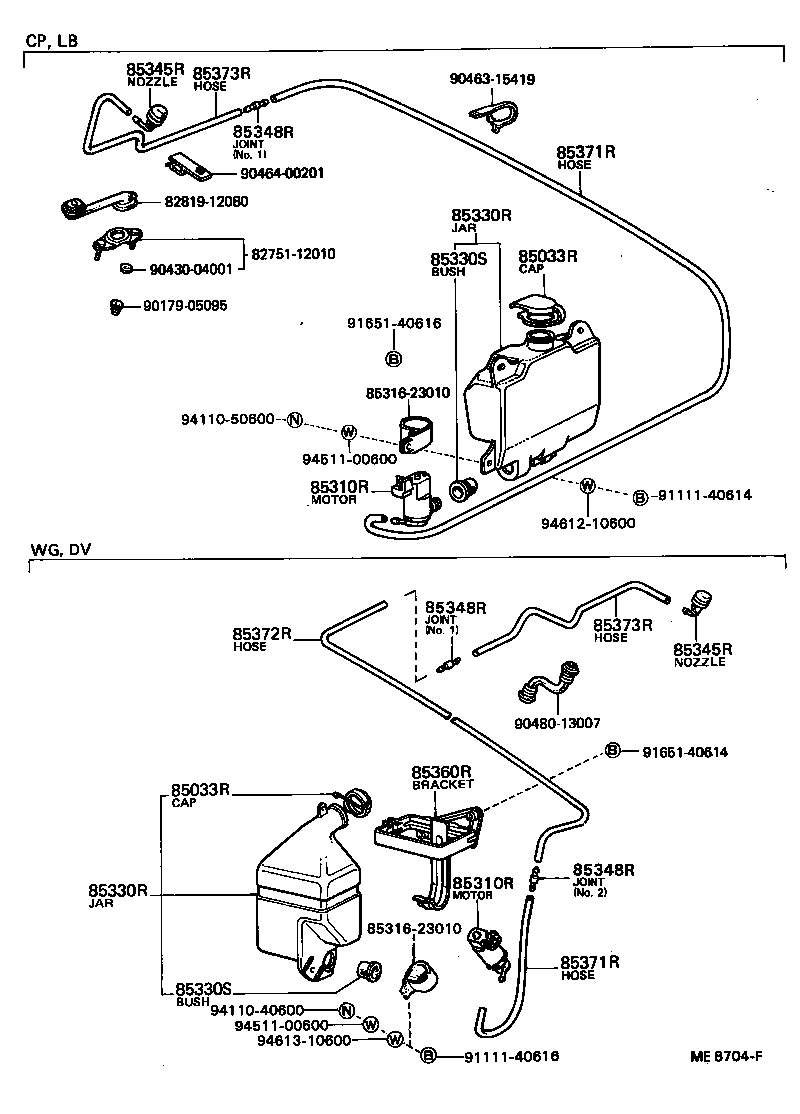

Click highlighted areas on diagram

diagram 8275112010 8281912080 85033R 85033R 85310R 85310R 8531623010 8531623010 85330R 85330R 85330S 85330S 85345R 85345R 85348R 85348R 85348R 85360R 85371R 85371R 85372R 85373R 85373R 9017905095 9043004001 9046315419 9046400201 9048013007 9111140614 9111140616 9165140614 9165140616 9411040600 9411050600 9451100600 9451100600 9461210600 9461310600
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85332-1201006

KE70,TE7#..CP,LB

DARK BROWN,BROWN,TRIM4#

 1
85332-1201004

KE70,TE7#..CP,LB

BLUE,BLUE,TRIM8#

 1
85332-1201001

KE70,TE7#..CP,LB

BLACK,BLACK,TRIM0#,2#

 1
85033R - CAP ASSY, REAR WASHER
85332-1201006

KE70,TE7#..CP,LB

DARK BROWN,BROWN,TRIM4#

 1
85332-1201004

KE70,TE7#..CP,LB

BLUE,BLUE,TRIM8#

 1
85332-1201001

KE70,TE7#..CP,LB

BLACK,BLACK,TRIM0#,2#

 1
85330R - JAR ASSY, REAR WASHER
85330-12110

KE70,TE7#..CP,LB

 1
85330R - JAR ASSY, REAR WASHER
85330-12110

KE70,TE7#..CP,LB

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

AE71,CE70,KE70,TE7#..CP,LB,WG

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

AE71,CE70,KE70,TE7#..CP,LB,WG

 1
85345R - NOZZLE, REAR WASHER
85035-12110

KE70,TE7#..CP,LB,WG

 1
85035-23030

KE70,TE7#..(CP,LB,WG)..(EUR,GEN,SA,SAA)

 1
85345R - NOZZLE, REAR WASHER
85035-12110

KE70,TE7#..CP,LB,WG

 1
85035-23030

KE70,TE7#..(CP,LB,WG)..(EUR,GEN,SA,SAA)

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

AE71,CE70,KE70,TE7#..(CP,LB,WG)..(EUR,GEN,SA,SAA)

NO.1,NO.2

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

AE71,CE70,KE70,TE7#..(CP,LB,WG)..(EUR,GEN,SA,SAA)

NO.1,NO.2

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

AE71,CE70,KE70,TE7#..(CP,LB,WG)..(EUR,GEN,SA,SAA)

NO.1,NO.2

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06006

KE70,TE7#..CP,LB

*H,L=1600

 1
90446-06279

KE70,TE7#..CP,LB

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06006

KE70,TE7#..CP,LB

*H,L=1600

 1
90446-06279

KE70,TE7#..CP,LB

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

KE70,TE7#..CP,LB,WG

*H,L=400

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

KE70,TE7#..CP,LB,WG

*H,L=400

 1
Common parts
82751-12010
82819-12080
85316-23010
90179-05095
90430-04001
90463-15419
90464-00201
90480-13007
91111-40614
91111-40616
91651-40614
91651-40616
94110-40600
94110-50600
94511-00600
94612-10600
94613-10600
