TE71R-ECMXBW (1979)
Toyota Corolla

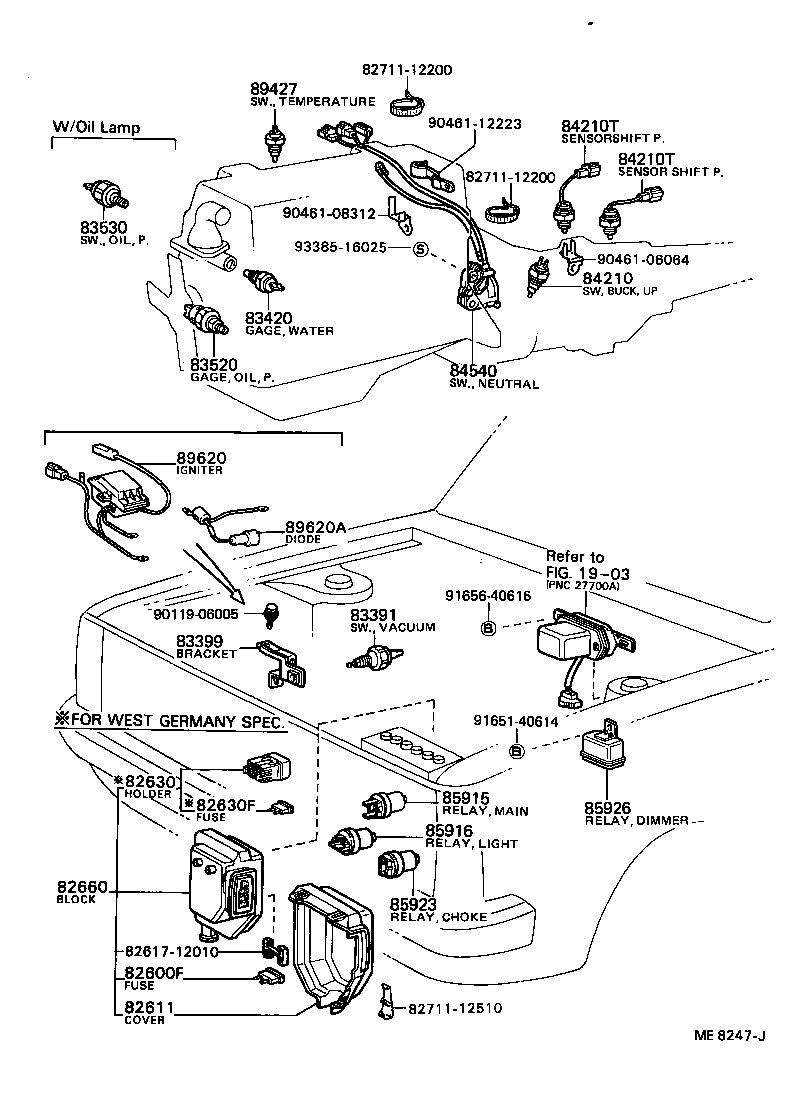

(7908-8502)TE7#..DX,GL,SE,SR,STD,XE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE71,CE70,KE70,TE7# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
AE71,CE70,KE70,TE7# 15A,15A |
12 | ||
| 90982-09002 |
AE71,CE70,KE70,TE7# 10A,10A |
13 | ||
| 90982-09001 |
AE71,KE70,TE7# 5A,5A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82661-12010 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82661-12011 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82611-12081 |
KE70,TE7#..RHD COWL SIDE,RH |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-12041 |
KE70,TE7#..RHD COWL SIDE,RH |
1 | ||
| 82660-12010 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12011 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12090 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
KE70,TE7# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14021 |
TE7#..GT,SE,SR,XE |
1 | ||
| 83520-14021 |
TE72..EUR;TE71..GT,SR,XE |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10051 |
TE72..MTM;TE71..5F..EUG;TE71..LHD..4F..EUG;TE71..MTM..(GEN,SA) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02001 |
KE70,TE7# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KE70,TE7# |
3 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12240 |
TE7#..(DX,SR,XE)..(EUG,SDN) |
1 | ||
| Common parts | ||||
| 82617-12010 | ||||
| 82711-12200 | ||||
| 82711-12510 | ||||
| 90119-06005 | ||||
| 90461-06064 | ||||
| 90461-08312 | ||||
| 90461-12223 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||

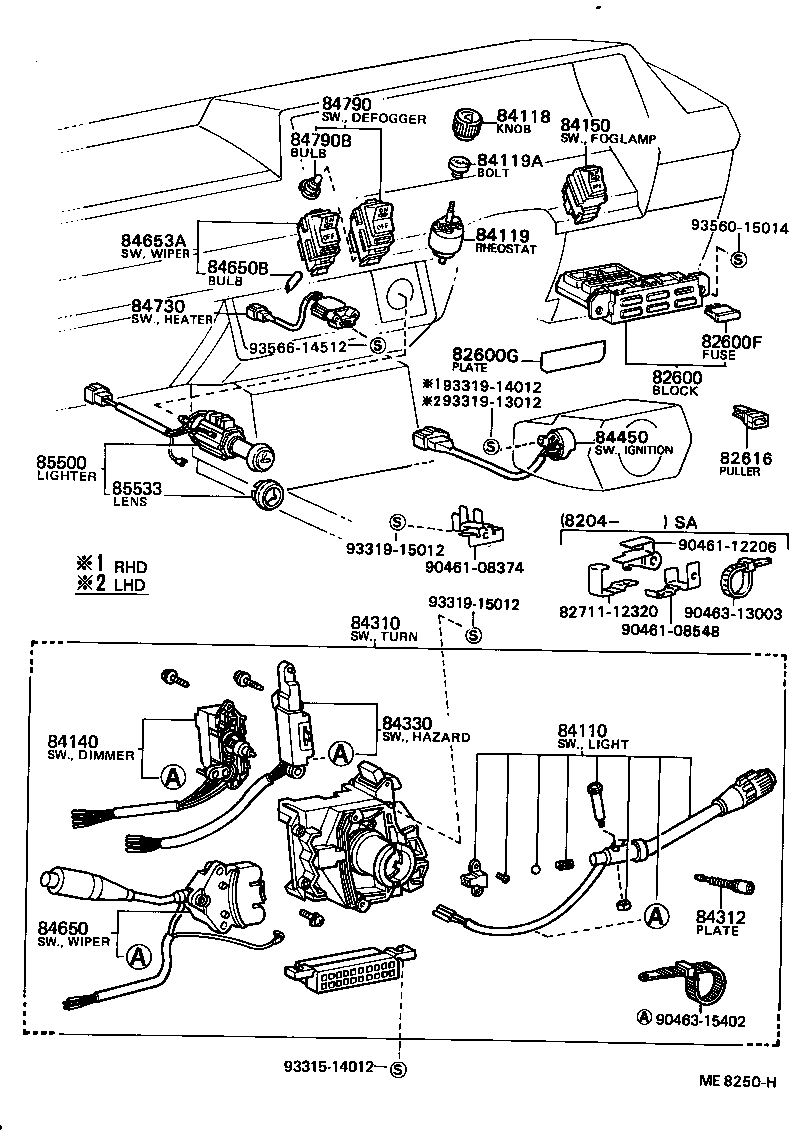

(7908-8406)CP,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-12110 |
KE70,TE7#..CP,LB |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE71,CE70,KE70,TE7# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
AE71,CE70,KE70,TE7# 15A,15A |
12 | ||
| 90982-09002 |
AE71,CE70,KE70,TE7# 10A,10A |
13 | ||
| 90982-09001 |
AE71,KE70,TE7# 5A,5A |
3 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19196 |
KE70,TE71..RHD..EUG MATSUSHITA |
1 | ||
| 84112-19185 |
KE70,TE71..RHD..EUG TOKAIRIKA |
1 | ||
| 84112-19186 |
KE70,TE71..RHD..EUG TOKAIRIKA |
1 | ||
| 84112-19195 |
KE70,TE71..RHD..EUG MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12021 |
KE70,TE7#..RHD MATSUSHITA |
1 | ||
| 84140-19035 |
KE70,TE71..RHD TOKAIRIKA |
1 | ||
| 84140-19036 |
KE70,TE7#..RHD TOKAIRIKA |
1 | ||
| 84140-12020 |
KE70,TE7#..RHD MATSUSHITA |
1 | ||
| 84140-19105 |
CE70,KE70,TE71..RHD..EUG W/*IW MATSUSHITA |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-12020 |
KE70,TE7#..(CP,LB)..(EUG,SDN) |
1 | ||
| 84160-12010 |
TE71..RHD..SR..EUG |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12360 |
KE70,TE71..RHD..EUG |
1 | ||
| 84310-12361 |
KE70,TE71..RHD..EUG |
1 | ||
| 84310-12362 |
KE70,TE71..RHD..EUG |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12030 |
KE70,TE7# MATSUSHITA |
1 | ||
| 84312-12030 |
KE70,TE71;TE72..(DX,SE)..(ARL,EUR) MATSUSHITA |
1 | ||
| 84312-12020 |
KE70,TE7# TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12060 |
KE70,TE7#..RHD MATSUSHITA |
1 | ||
| 84332-19035 |
KE70,TE7#..RHD TOKAIRIKA |
1 | ||
| 84332-19075 |
CE70,KE70,TE71..RHD..(DX,GL,SR,XE,XL)..(EUR,GEN) W/*IW,MATSUSHITA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12060 |
KE70,TE7#..RHD |
1 | ||
| 84450-12060 |
CE70,KE70,TE7#..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19215 |
KE70,TE71..RHD..EUG TOKAIRIKA |
1 | ||
| 84652-12240 |
KE70,TE71..RHD..EUG MATSUSHITA |
1 | ||
| 84652-19216 |
KE70,TE71..RHD..EUG |
1 | ||
| 84652-19545 |
KE70,TE71..RHD..EUG MATSUSHITA |
1 | ||
| 84650B - BULB, WINDSHIELD WIPER SWITCH | ||||
| 90981-11018 |
KE70,TE7#..CP,LB 12V 1.4W |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12040 |
KE70,TE7#..CP,LB |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12080 |
KE70,TE71..RHD..EUG |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12070 |
KE70,TE7#..CP,LB |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 |
KE70,TE7#..CP,LB 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12151 |
TE71..RHD..EUG |
1 | ||
| 85500-12151 |
TE71..RHD..EUG |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-12010 |
KE70,TE7#..(CP,LB)..RHD TOKAIRIKA |
1 | ||
| 85533-20010 |
TE71..RHD..EUG |
1 | ||
| Common parts | ||||
| 82711-12320 | ||||
| 90461-08374 | ||||
| 90461-08548 | ||||
| 90461-12206 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93560-15014 | ||||
| 93566-14512 | ||||
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
KE70,TE7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE71,CE70,KE70,TE7# 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
AE71,CE70,KE70,TE7# 15A,15A |
12 | ||
| 90982-09002 |
AE71,CE70,KE70,TE7# 10A,10A |
13 | ||
| 90982-09001 |
AE71,KE70,TE7# 5A,5A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82661-12010 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82661-12011 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82611-12081 |
KE70,TE7#..RHD COWL SIDE,RH |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-12041 |
KE70,TE7#..RHD COWL SIDE,RH |
1 | ||
| 82660-12010 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12011 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 82660-12090 |
KE70,TE7# ENGINE ROOM |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KE70,TE7# |
3 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12470 |
TE71..RHD..SR..EUG;TE71..LHD..(SR,XE)..EUG |
1 | ||
| Common parts | ||||
| 82617-12010 | ||||
| 90119-06122 | ||||
| 91651-40618 | ||||
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19397 |
TE72..GL,SE,XE;KE70..LHD..5F..2D;KE70..(CP,LB,SED)..RHD;KE70..LHD..5F..4D..GEN;KE70..(LB,SED)..LHD..ATM;KE70..(CP,LB,SED)..4F..EUG;KE70..SED..LHD..5F..4D..EUG;KE70..(CP,LB,SED)..LHD..4F..GEN;TE71..(CP,LB,SED)..(EUR,GEN,SA) W/LEVEL WARNING SWITCH |
1 | ||
| 83320-19417 |
TE71..RHD..SR..EUG;KE70,TE7#..(CP,LB,SED)..LHD..EUR W/LEVEL WARNING OR RUST-PROOF |
1 | ||
| 83320-19396 |
KE70,TE7#..CP,LB,SED W/LEVEL WARNING SWITCH |
1 | ||
| 83320-19417 |
KE70,TE71..(CP,LB,SED)..EUR W/LEVEL WARNING & RUST PROOF |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KE70,TE7# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12030 |
TE7#..GT,SE,SR,XE |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12030 |
TE7#..GT,SE,SR,XE |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-20020 |
TE7#..GT,SE,SR,XE |
2 | ||
| 84234-95500 |
TE7#..GT,SE,SR,XE |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20040 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
KE70,TE7# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84550-12020 |
AE71,CE70,KE70,TE7# |
1 | ||
| Common parts | ||||
| 90201-08456 | ||||
| 90201-15007 | ||||
| 90463-08187 | ||||
| 90463-08205 | ||||
| 90560-10021 | ||||
| 93319-14010 | ||||
(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81990 - RELAY ASSY, TURN SIGNAL | ||||
| 90987-03001 |
KE70,TE71..EUG |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-12050 |
KE70,TE7# TYPE : A |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-12050 |
KE70,TE7# TYPE : A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-12010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12020 |
KE70,TE7#..ARL,EUR |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-12050 |
KE70,TE71..EUG |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90179-06115 | ||||
| 91666-40616 | ||||
| 93385-16012 | ||||
| 93560-55016 | ||||
| 93566-15514 | ||||
