TE71R-ECMXBW (1979)
Toyota Corolla

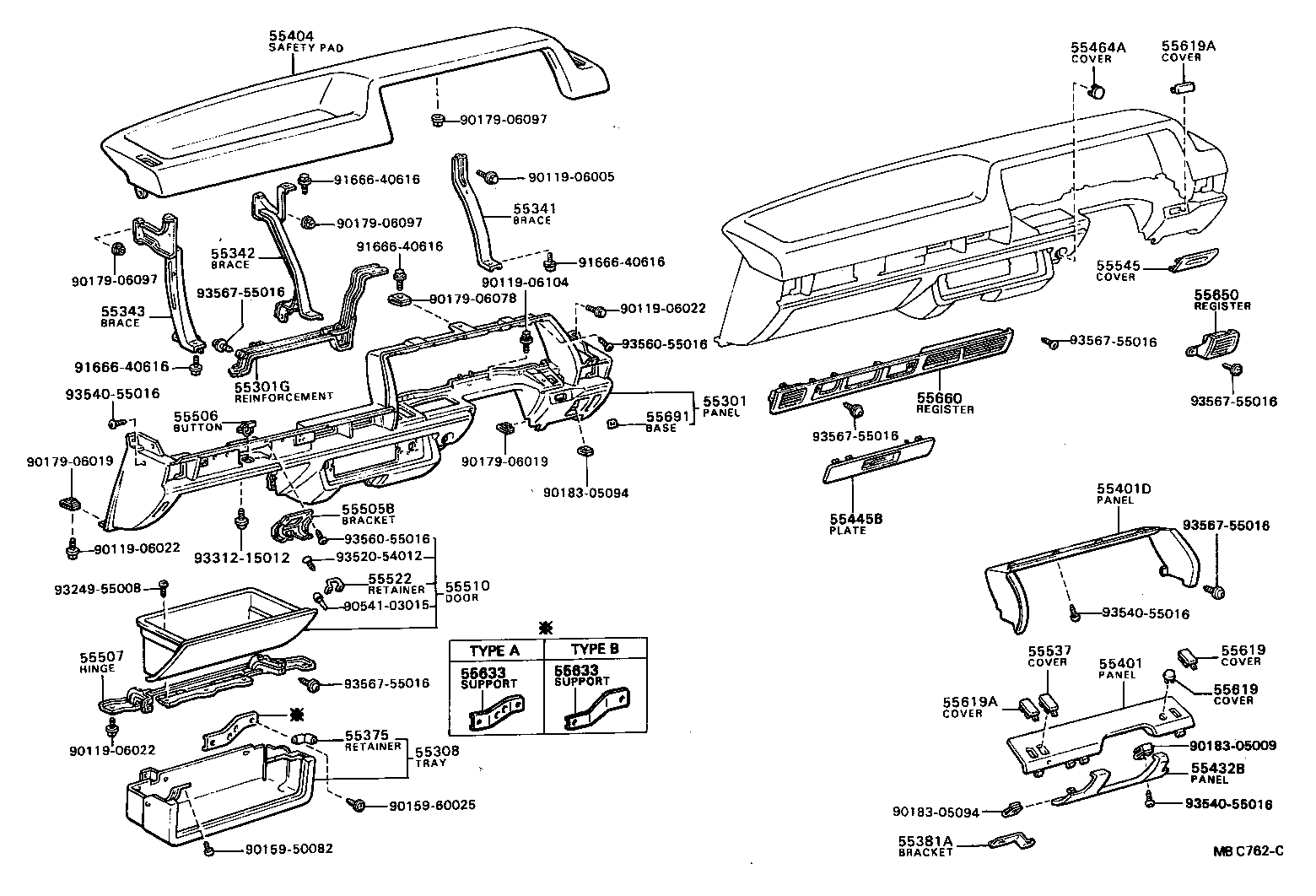

(7908-8108)CP,LB..RHD ; (8108-8204)SE..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-12060 |
TE71..RHD..EUG |
2 | ||
| 55061-12060 |
KE70,TE7#..CP,LB |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-12060 |
TE71..RHD..EUG |
2 | ||
| 55061-12060 |
KE70,TE7#..CP,LB |
2 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-1217001 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55311-1217004 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55311-1217006 |
KE70,TE7#..(CP,LB)..RHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55301G - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-12060 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-1209004 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55601-1209001 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55601-1209006 |
KE70,TE7#..(CP,LB)..RHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12110 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12040 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55307-12041 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55308-12111 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) |
1 | ||
| 55308-12110 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55375 - RETAINER, INSTRUMENT PANEL UNDER TRAY, UPPER | ||||
| 55375-12010 |
AE71,CE70,KE70,TE7#..(DX,GL,GT,SE,SR,XE,XL)..(EUR,GEN,SA,SAA) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12650 |
TE71..RHD..SR |
1 | ||
| 55401D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-12110 |
KE70,TE7#..CP,LB |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1210001 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55401-1210106 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) D-BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1210004 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1210006 |
KE70,TE7#..(CP,LB)..RHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1210104 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1210101 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-1207006 |
TE7#..RHD..2D D-BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1207004 |
TE7#..RHD..2D..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1207001 |
TE7#..RHD..2D..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55432-1207104 |
TE7#..RHD..2D..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-12050 |
KE70,TE7#..CP,LB |
1 | ||
| 55505B - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12070 |
KE70,TE7#..CP,LB |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12040 |
KE70,TE7#..CP,LB |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-12040 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1217001 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55550-1217004 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1217006 |
KE70,TE7#..(CP,LB)..RHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-12030 |
KE70,TE7#..CP,LB |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-1203006 |
KE70,TE7#..CP,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 55545-1202001 |
KE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55540-1203001 |
KE70,TE7#..CP,LB BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55540-1203004 |
KE70,TE7#..CP,LB BLUE,BLUE,TRIM8# |
1 | ||
| 55545-1202004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55539-12040 |
KE70,TE7#..(CP,LB)..RHD W/O RR FOG LAMP SWITCH |
1 | ||
| 55539-12030 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O RHEOSTAT SWITCH |
1 | ||
| 55619A - COVER, SWITCH HOLE, NO.2 | ||||
| 55539-12020 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O REAR WIPER SWITCH |
1 | ||
| 55619A - COVER, SWITCH HOLE, NO.2 | ||||
| 55539-12020 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O REAR WIPER SWITCH |
1 | ||
| 55633 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-12050 |
AE71,CE70,KE70,TE7# TYPE A |
1 | ||
| 55633 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-12050 |
AE71,CE70,KE70,TE7# TYPE A |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12080 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55650-12080 |
TE71..RHD..EUG |
1 | ||
| 55650-12081 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12120 |
TE71..RHD..EUG |
1 | ||
| 55660-12120 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55660-12121 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12050 |
TE71..RHD..EUG |
2 | ||
| 55670-12050 |
KE70,TE7#..CP,LB |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12050 |
TE71..RHD..EUG |
2 | ||
| 55670-12050 |
KE70,TE7#..CP,LB |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 58914-20010 |
KE70,TE7#..CP,LB |
1 | ||
| 55691 - BASE, INSTRUMENT PANEL NAME | ||||
| 55691-12040 |
KE70,TE7#..CP,LB |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06022 | ||||
| 90119-06104 | ||||
| 90159-50082 | ||||
| 90159-60025 | ||||
| 90179-06019 | ||||
| 90179-06078 | ||||
| 90179-06097 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90541-03015 | ||||
| 91666-40616 | ||||
| 93249-55008 | ||||
| 93312-15012 | ||||
| 93510-14010 | ||||
| 93520-54012 | ||||
| 93540-55016 | ||||
| 93560-55016 | ||||
| 93567-55016 | ||||

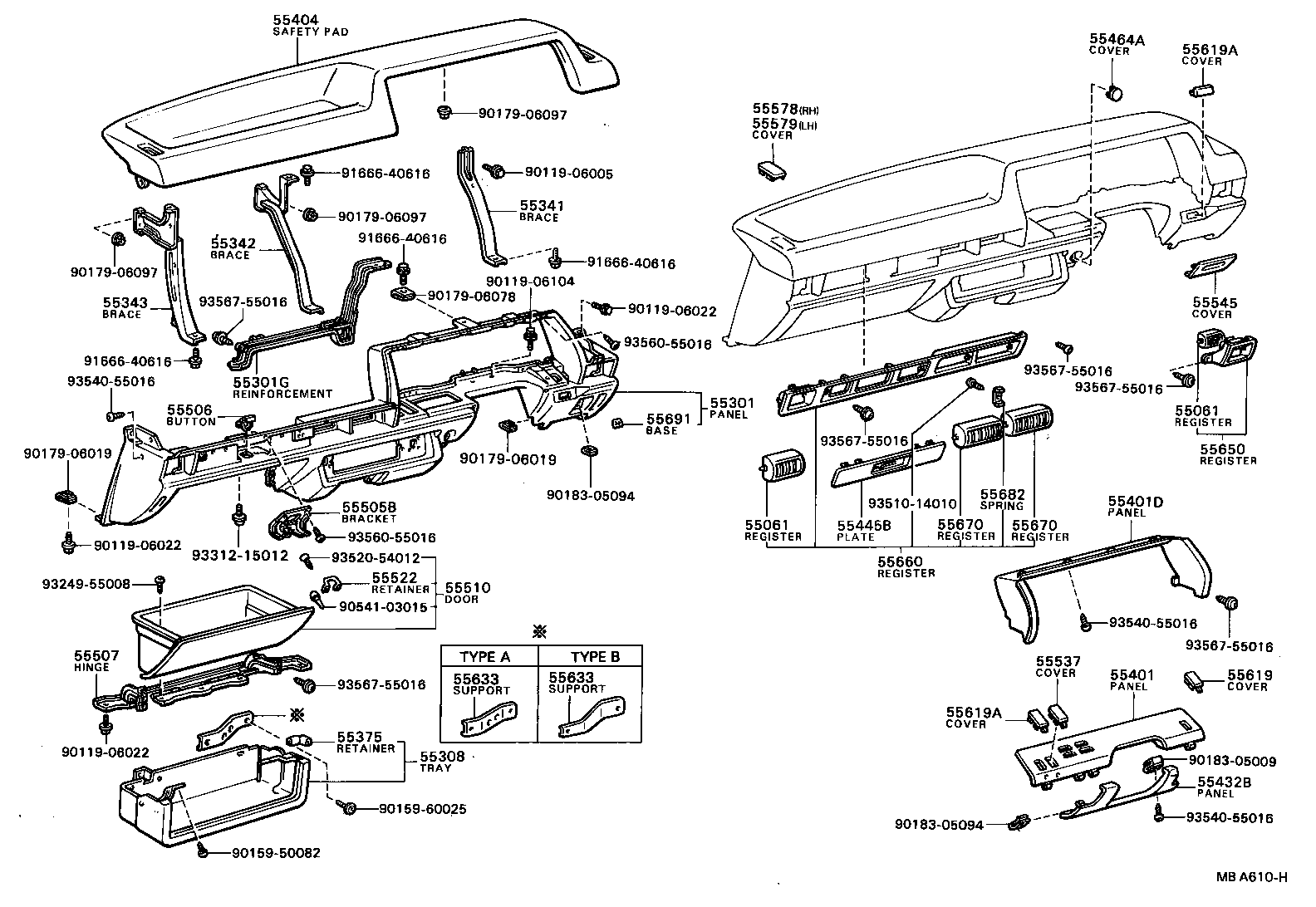

(8108-8204)CP,LB..RHD..ARL,EUR,GEN ; (8204-8406)CP,LB..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-1217001 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55311-1217004 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55311-1217006 |
KE70,TE7#..(CP,LB)..RHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55301G - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-12060 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-1209004 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55601-1209001 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55601-1209006 |
KE70,TE7#..(CP,LB)..RHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12110 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12040 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55307-12041 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55308-12111 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) |
1 | ||
| 55308-12110 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55375 - RETAINER, INSTRUMENT PANEL UNDER TRAY, UPPER | ||||
| 55375-12010 |
AE71,CE70,KE70,TE7#..(DX,GL,GT,SE,SR,XE,XL)..(EUR,GEN,SA,SAA) |
1 | ||
| 55381A - BRACKET, FINISH PANEL MOUNTING | ||||
| 55381-12030 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12650 |
TE71..RHD..SR |
1 | ||
| 55401D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-12110 |
KE70,TE7#..CP,LB |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1210001 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55401-1210106 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) D-BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1210004 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1210006 |
KE70,TE7#..(CP,LB)..RHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55401-1210104 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1210101 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-1207006 |
TE7#..RHD..2D D-BROWN,BROWN,TRIM4# |
1 | ||
| 55432-1207004 |
TE7#..RHD..2D..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55432-1207001 |
TE7#..RHD..2D..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55432-1207104 |
TE7#..RHD..2D..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-12050 |
KE70,TE7#..CP,LB |
1 | ||
| 55505B - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-12070 |
KE70,TE7#..CP,LB |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12040 |
KE70,TE7#..CP,LB |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-12040 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1217001 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55550-1217004 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) BLUE,BLUE,TRIM8# |
1 | ||
| 55550-1217006 |
KE70,TE7#..(CP,LB)..RHD D-BROWN,BROWN,TRIM4# |
1 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-12030 |
KE70,TE7#..CP,LB |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-1203006 |
KE70,TE7#..CP,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 55545-1202001 |
KE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55540-1203001 |
KE70,TE7#..CP,LB BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55540-1203004 |
KE70,TE7#..CP,LB BLUE,BLUE,TRIM8# |
1 | ||
| 55545-1202004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55539-12040 |
KE70,TE7#..(CP,LB)..RHD W/O RR FOG LAMP SWITCH |
1 | ||
| 55539-12030 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O RHEOSTAT SWITCH |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55539-12040 |
KE70,TE7#..(CP,LB)..RHD W/O RR FOG LAMP SWITCH |
1 | ||
| 55539-12030 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O RHEOSTAT SWITCH |
1 | ||
| 55619A - COVER, SWITCH HOLE, NO.2 | ||||
| 55539-12020 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O REAR WIPER SWITCH |
1 | ||
| 55619A - COVER, SWITCH HOLE, NO.2 | ||||
| 55539-12020 |
KE70,TE7#..(CP,LB)..(EUR,GEN,SA,SAA) W/O REAR WIPER SWITCH |
1 | ||
| 55633 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-12050 |
AE71,CE70,KE70,TE7# TYPE A |
1 | ||
| 55633 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-12050 |
AE71,CE70,KE70,TE7# TYPE A |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12080 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55650-12080 |
TE71..RHD..EUG |
1 | ||
| 55650-12081 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12120 |
TE71..RHD..EUG |
1 | ||
| 55660-12120 |
KE70,TE7#..(CP,LB)..RHD |
1 | ||
| 55660-12121 |
KE70,TE7#..(CP,LB)..RHD..(ARL,EUR,GEN) |
1 | ||
| 55691 - BASE, INSTRUMENT PANEL NAME | ||||
| 55691-12040 |
KE70,TE7#..CP,LB |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06022 | ||||
| 90119-06104 | ||||
| 90159-50082 | ||||
| 90159-60025 | ||||
| 90179-06019 | ||||
| 90179-06078 | ||||
| 90179-06097 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90541-03015 | ||||
| 91666-40616 | ||||
| 93249-55008 | ||||
| 93312-15012 | ||||
| 93520-54012 | ||||
| 93540-55016 | ||||
| 93560-55016 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
