TE71R-ECMXBW (1979)
Toyota Corolla

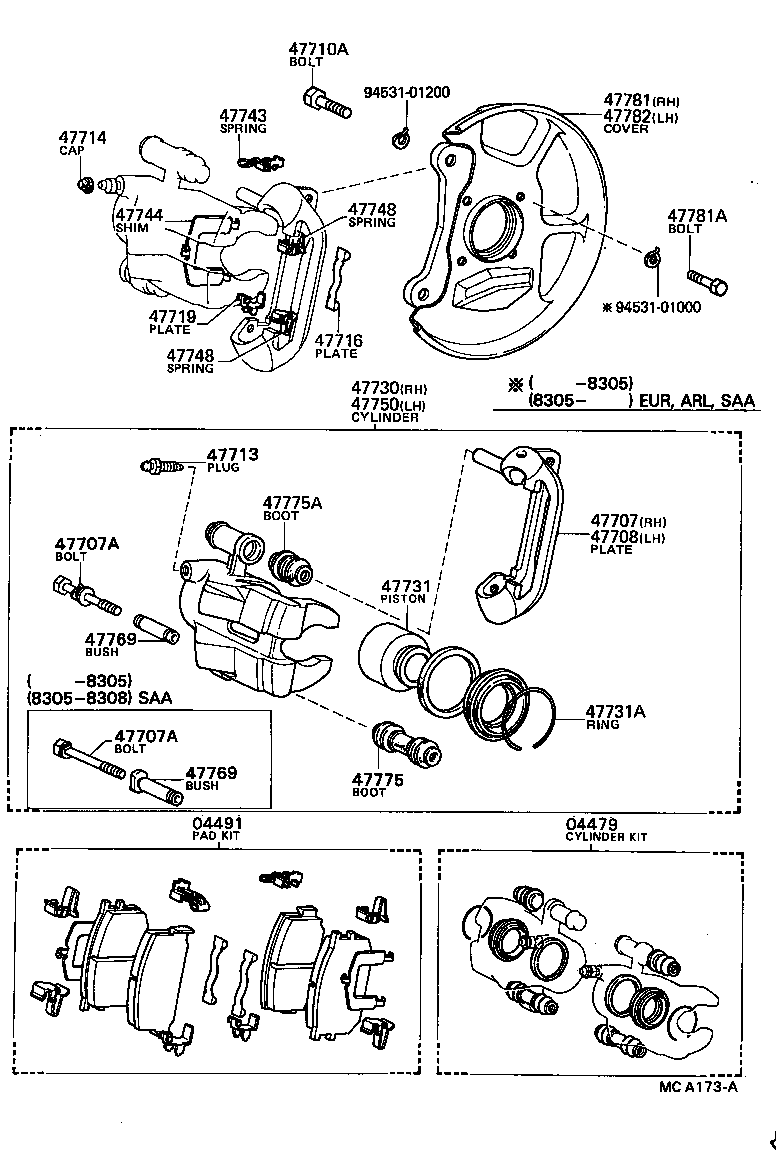

ILLUST NO. 1 OF 2(7908-8305)EUR ; (7908-8308)2D..ARL ; (7908-)SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-12070 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
1 | ||
| 04479-12080 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-12140 |
KE70,TE7#..ARL,EUR |
1 | ||
| 04491-12141 |
TE72..SDN;KE70,TE71..EUR |
1 | ||
| 04491-12151 |
KE70,TE71..RHD..EUG |
1 | ||
| 04498 - SEAL KIT, DISC BRAKE, FRONT | ||||
| 04498-12010 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
1 | ||
| 04498-12020 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91161-71220 |
TE7#..ARL,EUR |
4 | ||
| 90101-12064 |
CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR) |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12040 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47547-20010 |
TE72..SDN;AE71,CE70,KE70,TE71..EUR,GEN,SAA TOYOTA |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AE71,CE70,KE70,TE7# |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-12110 |
KE70,TE7#..ARL,EUR SUMITOMO |
1 | ||
| 47730-12140 |
KE70,TE7#..ARL,EUR TOYOTA |
1 | ||
| 47730-12111 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
1 | ||
| 47730-12141 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-12070 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47731-12060 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-60003 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-12020 |
TE72..SDN;CE70,KE70,TE71..EUR |
2 | ||
| 47744-12030 |
KE70,TE7#..ARL,EUR RH |
1 | ||
| 47735-12010 |
KE70,TE7#..ARL,EUR LH |
1 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-12020 |
TE72..SDN;CE70,KE70,TE71..EUR |
2 | ||
| 47744-12030 |
KE70,TE7#..ARL,EUR RH |
1 | ||
| 47735-12010 |
KE70,TE7#..ARL,EUR LH |
1 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-12030 |
TE72..SDN;CE70,KE70,TE71..EUR RH |
1 | ||
| 47742-12010 |
TE72..SDN;CE70,KE70,TE71..EUR LH |
1 | ||
| 47745-12020 |
KE70,TE7#..ARL,EUR |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-12030 |
TE72..SDN;CE70,KE70,TE71..EUR RH |
1 | ||
| 47742-12010 |
TE72..SDN;CE70,KE70,TE71..EUR LH |
1 | ||
| 47745-12020 |
KE70,TE7#..ARL,EUR |
2 | ||
| 47746A - PIN, W/HOLE(FOR DISC BRAKE PAD, FRONT) | ||||
| 90240-06133 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
4 | ||
| 90240-06161 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
4 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-12020 |
KE70,TE7#..ARL,EUR INNER,SUMITOMO |
2 | ||
| 47748-12010 |
KE70,TE7#..ARL,EUR OUTER,SUMITOMO |
2 | ||
| 47748-12030 |
KE70,TE7#..ARL,EUR OUTER,TOYOTA |
2 | ||
| 47748-12080 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 47748-12040 |
KE70,TE7#..ARL,EUR INNER,TOYOTA |
2 | ||
| 47748-12070 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-12020 |
KE70,TE7#..ARL,EUR INNER,SUMITOMO |
2 | ||
| 47748-12010 |
KE70,TE7#..ARL,EUR OUTER,SUMITOMO |
2 | ||
| 47748-12030 |
KE70,TE7#..ARL,EUR OUTER,TOYOTA |
2 | ||
| 47748-12080 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 47748-12040 |
KE70,TE7#..ARL,EUR INNER,TOYOTA |
2 | ||
| 47748-12070 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-12020 |
KE70,TE7#..ARL,EUR INNER,SUMITOMO |
2 | ||
| 47748-12010 |
KE70,TE7#..ARL,EUR OUTER,SUMITOMO |
2 | ||
| 47748-12030 |
KE70,TE7#..ARL,EUR OUTER,TOYOTA |
2 | ||
| 47748-12080 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 47748-12040 |
KE70,TE7#..ARL,EUR INNER,TOYOTA |
2 | ||
| 47748-12070 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47749 - CLIP, PIN HOLD | ||||
| 47749-12020 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 47749-12010 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-12141 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
1 | ||
| 47750-12140 |
KE70,TE7#..ARL,EUR TOYOTA |
1 | ||
| 47750-12111 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
1 | ||
| 47750-12110 |
KE70,TE7#..ARL,EUR SUMITOMO |
1 | ||
| 47766 - CAP, TORQUE PLATE PIN, FRONT(MAIN PIN) | ||||
| 47766-12010 |
TE72..SDN;CE70,KE70,TE71..EUR |
2 | ||
| 47766A - PLUG, HOLE(FOR TORQUE PLATE FRONT PIN CAP) | ||||
| 90950-01186 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 90950-01121 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47767 - PROTECTOR, DISC BRAKE PAD | ||||
| 47767-12030 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47767-12040 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-12100 |
CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR) |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 91111-71020 |
CE70,TE71..EUR,GEN,SAA;TE72..(DX,SE)..(ARL,EUR) |
8 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 91111-71020 |
CE70,TE71..EUR,GEN,SAA;TE72..(DX,SE)..(ARL,EUR) |
8 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 91111-71020 |
CE70,TE71..EUR,GEN,SAA;TE72..(DX,SE)..(ARL,EUR) |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-12100 |
CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR) |
1 | ||
| Common parts | ||||
| 90101-12051 | ||||
| 90101-12052 | ||||
| 94512-01000 | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||
ILLUST NO. 1 OF 2(7908- )GEN,SAA ; (8305- )EUR ; (8308-8406)AE71..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-12070 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
1 | ||
| 04479-12080 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-12140 |
KE70,TE7#..ARL,EUR |
1 | ||
| 04491-12141 |
TE72..SDN;KE70,TE71..EUR |
1 | ||
| 04491-12151 |
KE70,TE71..RHD..EUG |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91161-71220 |
TE7#..ARL,EUR |
4 | ||
| 90101-12064 |
CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR) |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12040 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47547-20010 |
TE72..SDN;AE71,CE70,KE70,TE71..EUR,GEN,SAA TOYOTA |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AE71,CE70,KE70,TE7# |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-12110 |
KE70,TE7#..ARL,EUR SUMITOMO |
1 | ||
| 47730-12140 |
KE70,TE7#..ARL,EUR TOYOTA |
1 | ||
| 47730-12111 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
1 | ||
| 47730-12141 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-12070 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47731-12060 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-60003 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-12020 |
TE72..SDN;CE70,KE70,TE71..EUR |
2 | ||
| 47744-12030 |
KE70,TE7#..ARL,EUR RH |
1 | ||
| 47735-12010 |
KE70,TE7#..ARL,EUR LH |
1 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-12020 |
KE70,TE7#..ARL,EUR INNER,SUMITOMO |
2 | ||
| 47748-12010 |
KE70,TE7#..ARL,EUR OUTER,SUMITOMO |
2 | ||
| 47748-12030 |
KE70,TE7#..ARL,EUR OUTER,TOYOTA |
2 | ||
| 47748-12080 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 47748-12040 |
KE70,TE7#..ARL,EUR INNER,TOYOTA |
2 | ||
| 47748-12070 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-12020 |
KE70,TE7#..ARL,EUR INNER,SUMITOMO |
2 | ||
| 47748-12010 |
KE70,TE7#..ARL,EUR OUTER,SUMITOMO |
2 | ||
| 47748-12030 |
KE70,TE7#..ARL,EUR OUTER,TOYOTA |
2 | ||
| 47748-12080 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
2 | ||
| 47748-12040 |
KE70,TE7#..ARL,EUR INNER,TOYOTA |
2 | ||
| 47748-12070 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-12141 |
TE72..SDN;CE70,KE70,TE71..EUR TOYOTA |
1 | ||
| 47750-12140 |
KE70,TE7#..ARL,EUR TOYOTA |
1 | ||
| 47750-12111 |
TE72..SDN;CE70,KE70,TE71..EUR SUMITOMO |
1 | ||
| 47750-12110 |
KE70,TE7#..ARL,EUR SUMITOMO |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-12100 |
CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR) |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 91111-71020 |
CE70,TE71..EUR,GEN,SAA;TE72..(DX,SE)..(ARL,EUR) |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-12100 |
CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR) |
1 | ||
| Common parts | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||
ILLUST NO. 2 OF 2(7908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-12120 |
KE70,TE71..RHD..EUG |
1 | ||
| 04465-12360 |
KE70,TE7#..EUR |
1 | ||
| 04465-12360 |
KE70,TE7#..ARL,EUR |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-12020 |
KE70,TE7#..EUR |
1 | ||
| 04945-12020 |
KE70,TE71..RHD..EUG |
1 | ||
| 04945-12020 |
KE70,TE7#..ARL,EUR |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-12020 |
KE70,TE7#..EUR |
1 | ||
| 04947-12020 |
KE70,TE7#..ARL,EUR |
1 | ||
| 04947-12020 |
KE70,TE71..RHD..EUG |
1 | ||
