TE71LG-EWKRS (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )DV,WG

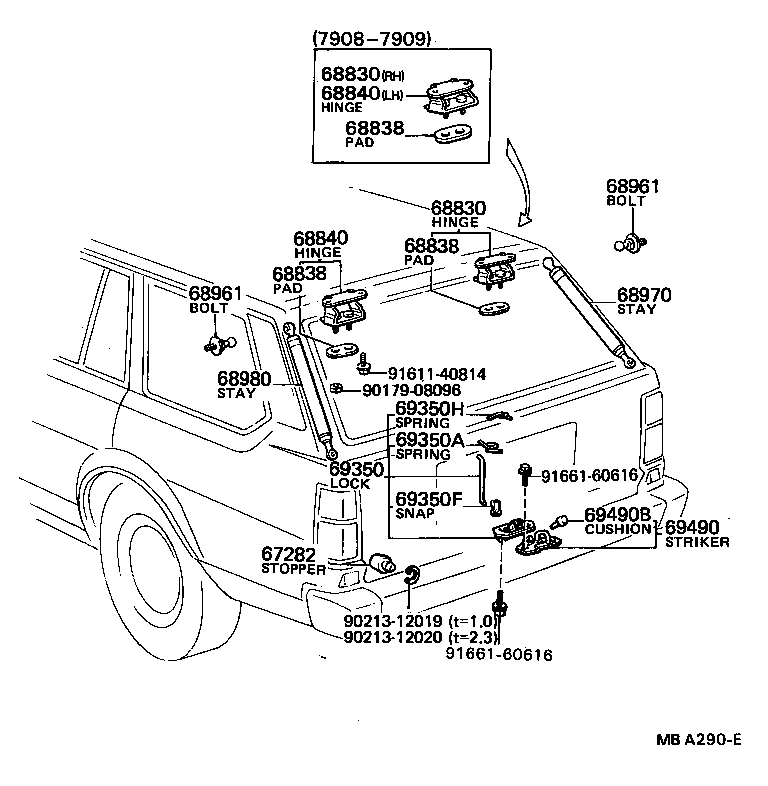

Click highlighted areas on diagram

diagram 67282 68830 68830 68838 68838 68838 68840 68840 68961 68961 68970 68980 69350 69350A 69350F 69350H 69490 69490B 9017908096 9021312019 9021312020 9161140814 9166160616 9166160616
Part # Description Qty Price
67282 - STOPPER, BACK DOOR, NO.1
67281-13030

KE70,TE71..DV,WG

 2
67281-13040

KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)

 2
68830 - HINGE ASSY, BACK DOOR, RH
68810-13070

AE71,CE70,KE70,TE71..DV,WG

 1
68830 - HINGE ASSY, BACK DOOR, RH
68810-13070

AE71,CE70,KE70,TE71..DV,WG

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-15010

AE71,CE70,KE70,TE71..DV,WG

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-15010

AE71,CE70,KE70,TE71..DV,WG

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-15010

AE71,CE70,KE70,TE71..DV,WG

 2
68840 - HINGE ASSY, BACK DOOR, LH
68810-13070

AE71,CE70,KE70,TE71..DV,WG

 1
68840 - HINGE ASSY, BACK DOOR, LH
68810-13070

AE71,CE70,KE70,TE71..DV,WG

 1
68961 - BOLT, BACK DOOR STAY
68961-13010

AE71,CE70,KE70,TE71..DV,WG

 4
68961 - BOLT, BACK DOOR STAY
68961-13010

AE71,CE70,KE70,TE71..DV,WG

 4
68970 - STAY ASSY, BACK DOOR, RH
68950-19135

KE70,TE71..DV,WG

KAYABA,W/O RR WINDOW WIPER

 1
68950-19155

KE70,TE71..DV,WG

TOKIKO,W/O RR WINDOW WIPER

 1
68950-19275

KE70,TE71..WG

TOKIKO,W/RR WINDOW WIPER

 1
68950-19255

KE70,TE71..WG

KAYABA,W/RR WINDOW WIPER

 1
68980 - STAY ASSY, BACK DOOR
68960-19055

KE70,TE71..DV,WG

KAYABA,W/O RR WINDOW WIPER

 1
68960-19145

KE70,TE71..WG

KAYABA,W/RR WINDOW WIPER

 1
68960-19155

KE70,TE71..WG

TOKIKO,W/RR WINDOW WIPER

 1
68960-19075

KE70,TE71..DV,WG

TOKIKO,W/O RR WINDOW WIPER

 1
69350 - LOCK ASSY, BACK DOOR
69350-13050

KE70,TE71..DV,WG

 1
69350A - SPRING(FOR BACK DOOR LOCK)
90508-08004

AE71,CE70,KE70,TE71..DV,WG

 1
69350F - SNAP, DOOR LOCK CONTROL ROD
69377-13010

KE70,TE71..DV,WG

 1
69350H - SPRING, TORSION(FOR BACK DOOR LOCK)
90508-12027

AE71,CE70,KE70,TE71..DV,WG

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-91255

AE71,CE70,KE70,TE71..DV,WG

 1
69490B - CUSHION(FOR BACK DOOR LOCK STRIKER)
90541-06002

AE71,CE70,KE70,TE71..DV,WG

 1
Common parts
90179-08096
90213-12019
90213-12020
91611-40814
91661-60616
