TE71LG-EWKDS (1979)

Toyota Corolla

Production Aug 1979 - Aug 1980
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )WG ; (8305- )DV

Click highlighted areas on diagram

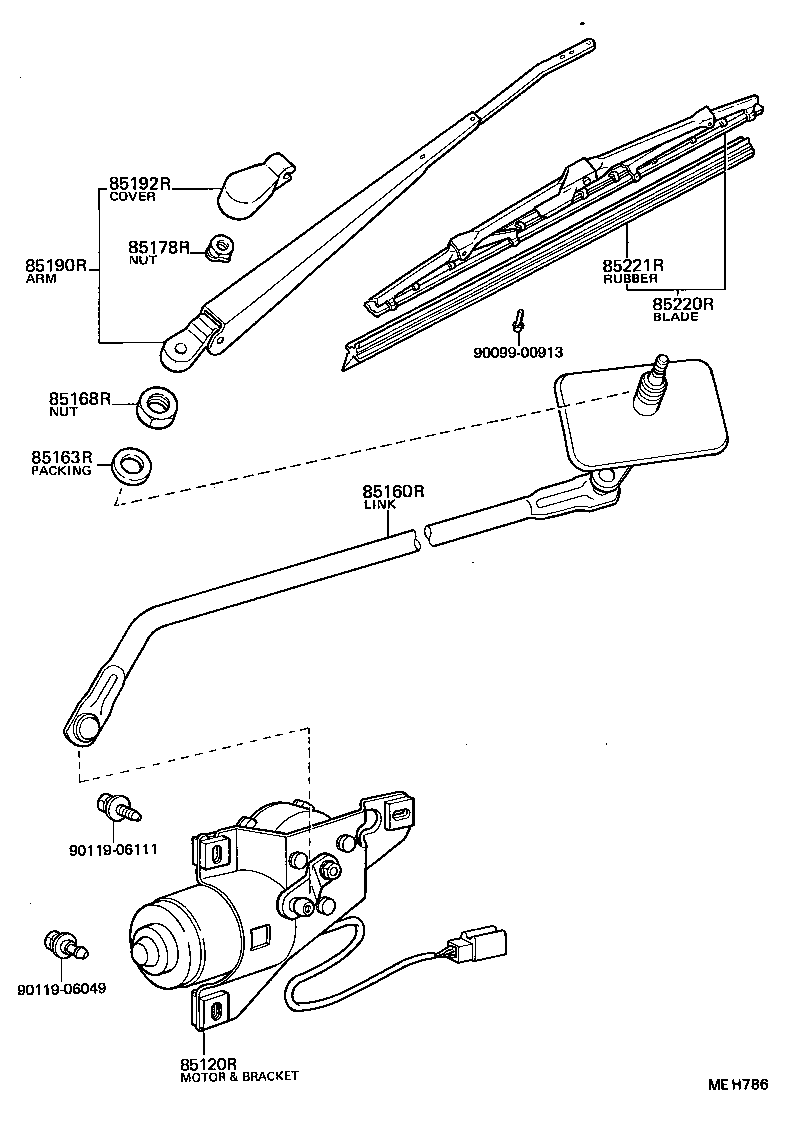

diagram 85120R 85160R 85163R 85168R 85178R 85190R 85192R 85220R 85221R 9009900913 9011906049 9011906111
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-13020

KE70,TE71..WG

 1
85160R - LINK ASSY, REAR WIPER
85160-13020

CE70,KE70,TE71..WG..(EUR,GEN,SA,SAA)

 1
85163R - PACKING, REAR WIPER PIVOT, NO.1
85176-96440

AE71,CE70,KE70,TE71..WG..(EUR,GEN,SA,SAA)

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
85186-13011

AE71,CE70,KE70,TE71..WG..(EUR,GEN,SA,SAA)

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

AE71,CE70,KE70,TE7#..(CP,LB,WG)..(EUR,GEN,SA,SAA)

 1
85190R - ARM ASSY, REAR WIPER
85190-13020

KE70,TE71..WG

 1
85192R - COVER, REAR WIPER ARM
85192-14020

AE71,CE70,KE70,TE7#..CP,LB,WG

 1
85220R - BLADE ASSY, REAR WIPER
85220-12310

KE70,TE7#..LB,WG

 1
85221R - BLADE, REAR WIPER
85221-20060

KE70,TE7#..CP,LB,WG

 1
Common parts
90099-00913
90119-06049
90119-06111
