TE71L-ELMDSW (1980)
Toyota Corolla
Production
Aug 1980
-
May 1983
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7908-8308)TE7#..LHD

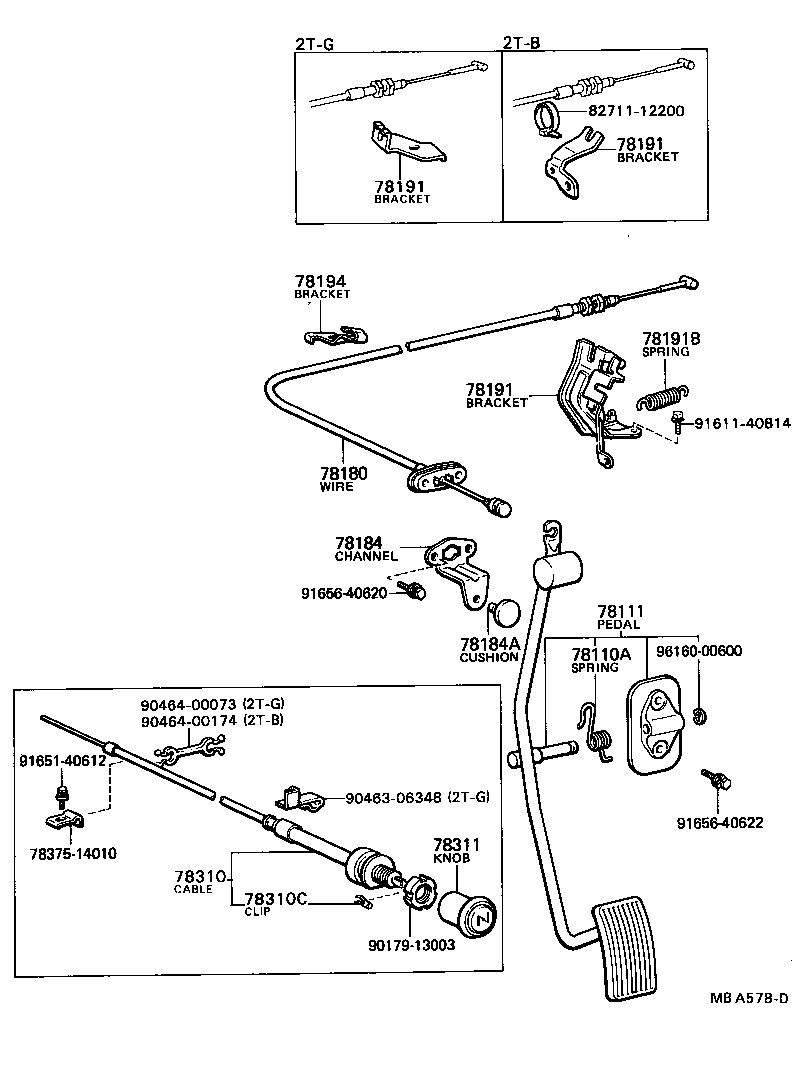

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18398 |
KE70..RHD;AE71,CE70,TE7# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-12070 |
TE7#..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12340 |
TE7#..LHD..(DX,STD,XE) |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78181-12051 |
TE7#;KE70..RHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
KE70..RHD;AE71,CE70,TE7# |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78024-12010 |
TE7#..LHD..(DX,STD,XE) |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78024-12010 |
TE7#..LHD..(DX,STD,XE) |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78024-12010 |
TE7#..LHD..(DX,STD,XE) |
1 | ||
| 78191B - SPRING, TENSION (FOR ACCELERATOR WIRE SUPPORT BRACKET) | ||||
| 90507-08002 |
TE7#..LHD..(DX,STD,XE) |
1 | ||
| 78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2 | ||||
| 78186-12120 |
TE7#..LHD..(DX,STD,XE) |
1 | ||
| Common parts | ||||
| 78375-14010 | ||||
| 82711-12200 | ||||
| 90179-13003 | ||||
| 90463-06348 | ||||
| 90464-00073 | ||||
| 90464-00174 | ||||
| 91611-40814 | ||||
| 91651-40612 | ||||
| 91656-40620 | ||||
| 91656-40622 | ||||
| 96160-00600 | ||||
