TE71L-ELMDS (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )CE70,TE7# ; (7908- )KE70..DV,WG..GEN,SAA

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45406 45406A 45406A 45407 45409A 45409B 45409C 45409D 45409D 45409E 45409E 45451 45460 45461 45461 45466 45466 45470 45490 45490A 45611 45611A 45611B 45611C 45612 45619 9010108265 9017008125 9017010082 9451100800 9453101000 9453101200 9538103020 9538103020 9538103020 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-29075

CE70,TE7#..CP,LB,SED

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AE71,CE70,KE70,TE7#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AE71,CE70,KE70,TE7#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29075

CE70,TE7#..CP,LB,SED

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-19055

CE70,TE7#..CP,LB,SED

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-12028

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-12028

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 2
45407 - ROD SUB-ASSY, TIE, LH
45406-19055

CE70,TE7#..CP,LB,SED

 1
45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
90119-10118

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 2
45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
90201-14519

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45409C - NUT(FOR IDLER ARM SUPPORT)
94182-11400

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45409D - BUSH(FOR IDLER ARM)
90385-18068

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 2
45409D - BUSH(FOR IDLER ARM)
90385-18068

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 2
45409E - SEAL, DUST(FOR IDLER ARM SUPPORT)
90304-31012

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 2
45409E - SEAL, DUST(FOR IDLER ARM SUPPORT)
90304-31012

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 2
45451 - ROD, STEERING RELAY
45451-12040

CE70,TE7#..CP,LB,SED

 1
45460 - ROD ASSY, TIE, RH
45460-19095

CE70,TE7#..CP,LB,SED

 1
45461 - ROD, STEERING TIE
45465-12020

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SAA)

 2
45461 - ROD, STEERING TIE
45465-12020

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SAA)

 2
45466 - CLAMP, TIE ROD END
45466-22010

AE71,CE70,KE70,TE7#

 4
45466 - CLAMP, TIE ROD END
45466-22010

AE71,CE70,KE70,TE7#

 4
45470 - ROD ASSY, TIE, LH
45460-19095

CE70,TE7#..CP,LB,SED

 1
45490 - ARM ASSY, STEERING IDLER
45490-19225

CE70,TE7#..LHD

 1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-12080

CE70,TE7#

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10032

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 2
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12295

AE71,CE70,KE70,TE7#

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016

AE71,CE70,KE70,TE7#

 4
45612 - ARM, STEERING KNUCKLE, LH
45612-12080

CE70,TE7#

 1
45619 - COVER, KNUCKLE STOPPER
45619-14020

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 2
Common parts
90101-08265
90170-08125
90170-10082
94511-00800
94531-01000
94531-01200
95381-03020

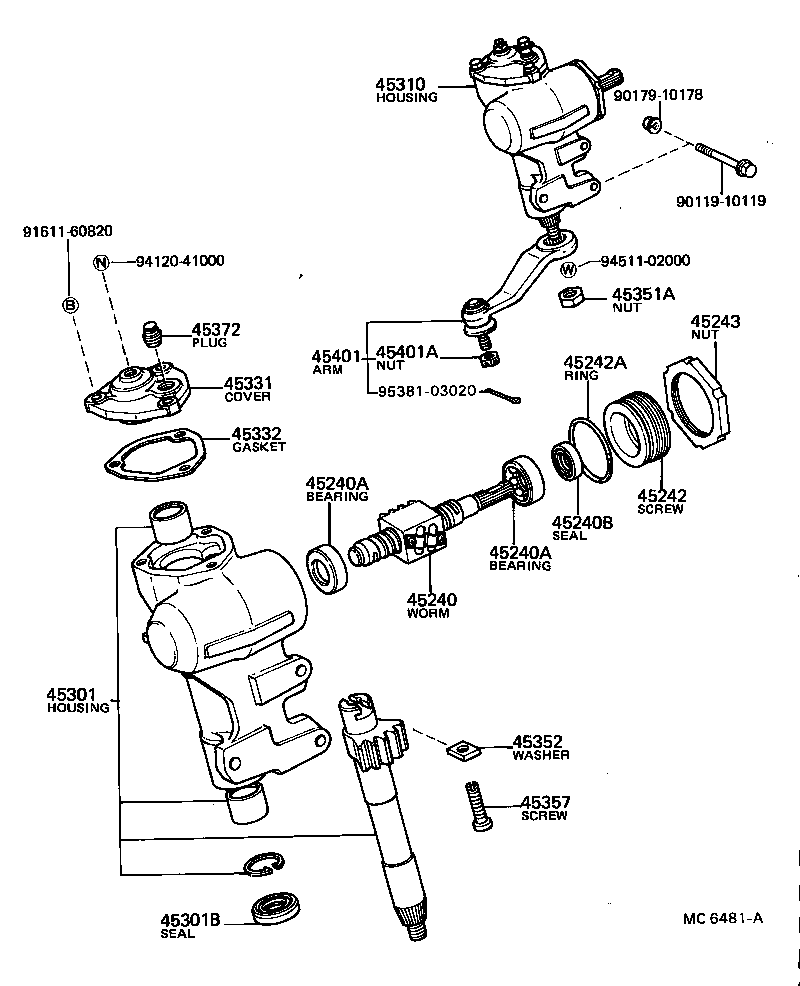

(7908-8101)TE7#..LHD ; (7908-8101)KE70..DV,WG..LHD..GEN

Click highlighted areas on diagram

diagram 45240 45240A 45240A 45240B 45242 45242A 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9011910119 9017910178 9161160820 9412041000 9451102000 9538103020
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-12050

CE70,TE7#..LHD

 1
45240A - BEARING(FOR STEERING WORM)
90369-40037

TE7#..LHD

 2
45240A - BEARING(FOR STEERING WORM)
90369-40037

TE7#..LHD

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-17092

TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-12041

TE7#..LHD

 1
45242A - RING, O(FOR WORM BEARING ADJUSTING SCREW)
90301-53181

TE7#..LHD

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-22020

TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-12221

CE70,TE7#..LHD

 1
45301-12220

TE7#..LHD

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-34003

TE7#..LHD

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-12210

TE7#..LHD

 1
45310-12211

CE70,TE7#..LHD

 1
45331 - COVER, SECTOR SHAFT END
45304-12030

TE7#..LHD

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-12040

TE7#..LHD

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-12010

TE7#..LHD

T=2.00

 1
45352-12030

TE7#..LHD

T=2.08

 1
45352-12050

TE7#..LHD

T=2.16

 1
45352-12020

TE7#..LHD

T=2.04

 1
45352-12040

TE7#..LHD

T=2.12

 1
45352-12060

TE7#..LHD

T=2.20

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-12010

TE7#..LHD

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45401 - ARM SUB-ASSY, PITMAN
45401-19195

CE70,TE7#..LHD

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-12028

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
Common parts
90119-10119
90179-10178
91611-60820
94120-41000
94511-02000
95381-03020

(7908- )AE71 ; (7908- )KE70..CP,LB,SED ; (7908- )KE70..DV,WG..ARL,EUR ; (8

Click highlighted areas on diagram

diagram 45046A 45222 45460 45466 45470 45501 45501A 45503 45503 45510 45514 45515 45515 45516 45517 45518 45521 45522 45523 45523A 45524 45524A 45535 45535A 45535A 45535B 45535B 45536 45537A 45537A 45539 45539 45541 45541A 45541B 45545 45545A 45611 45611B 45611C 45612 9010108265 9011910106 9011910106 9011910106 9011910318 9017008125 9326963020 9451100800 9453101200 9538103020
Part # Description Qty Price
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AE71,CE70,KE70,TE7#

 2
45460 - ROD ASSY, TIE, RH
45460-19095

CE70,TE7#..CP,LB,SED

 1
45466 - CLAMP, TIE ROD END
45466-22010

AE71,CE70,KE70,TE7#

 4
45470 - ROD ASSY, TIE, LH
45460-19095

CE70,TE7#..CP,LB,SED

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-12080

CE70,TE7#

 1
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12295

AE71,CE70,KE70,TE7#

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016

AE71,CE70,KE70,TE7#

 4
45612 - ARM, STEERING KNUCKLE, LH
45612-12080

CE70,TE7#

 1
Common parts
90101-08265
90119-10106
90119-10318
90170-08125
93269-63020
94511-00800
94531-01200
95381-03020

(7908-8101)TE7#..RHD..ARL,EUR,SA ; (7908-8108)RHD..SR..GEN ; (7908-8204)XE..GEN ; (

Click highlighted areas on diagram

RHD..SR..GEN; (8210- )CE70E..RHD

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010110136 9011910119 9017910178 9046108293 9161160820 9412041000 9451102000 9461211001 9538103020
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-12050

CE70,TE7#..LHD

 1
45240-12050

CE70,TE7#..LHD

 1
45240A - BEARING(FOR STEERING WORM)
90369-40037

TE7#..LHD

 2
90369-40037

TE7#..LHD

 2
45240A - BEARING(FOR STEERING WORM)
90369-40037

TE7#..LHD

 2
90369-40037

TE7#..LHD

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-17092

TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
90311-17092

TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-12041

TE7#..LHD

 1
45242-12041

TE7#..LHD

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-22020

TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45243-22020

TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-12221

CE70,TE7#..LHD

 1
45301-12221

CE70,TE7#..LHD

 1
45301-12220

TE7#..LHD

 1
45301-12220

TE7#..LHD

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-34003

TE7#..LHD

 1
90310-34003

TE7#..LHD

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-12210

TE7#..LHD

 1
45310-12210

TE7#..LHD

 1
45310-12211

CE70,TE7#..LHD

 1
45310-12211

CE70,TE7#..LHD

 1
45331 - COVER, SECTOR SHAFT END
45304-12030

TE7#..LHD

 1
45304-12030

TE7#..LHD

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-12040

TE7#..LHD

 1
45332-12040

TE7#..LHD

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
90170-20147

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-12010

TE7#..LHD

T=2.00

 1
45352-12010

TE7#..LHD

T=2.00

 1
45352-12030

TE7#..LHD

T=2.08

 1
45352-12030

TE7#..LHD

T=2.08

 1
45352-12050

TE7#..LHD

T=2.16

 1
45352-12050

TE7#..LHD

T=2.16

 1
45352-12020

TE7#..LHD

T=2.04

 1
45352-12020

TE7#..LHD

T=2.04

 1
45352-12040

TE7#..LHD

T=2.12

 1
45352-12040

TE7#..LHD

T=2.12

 1
45352-12060

TE7#..LHD

T=2.20

 1
45352-12060

TE7#..LHD

T=2.20

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-12010

TE7#..LHD

 1
45357-12010

TE7#..LHD

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
90930-03027

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45401 - ARM SUB-ASSY, PITMAN
45401-19195

CE70,TE7#..LHD

 1
45401-19195

CE70,TE7#..LHD

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-12028

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
90171-12028

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
Common parts
90101-10136
90119-10119
90179-10178
90461-08293
91611-60820
94120-41000
94511-02000
94612-11001
95381-03020

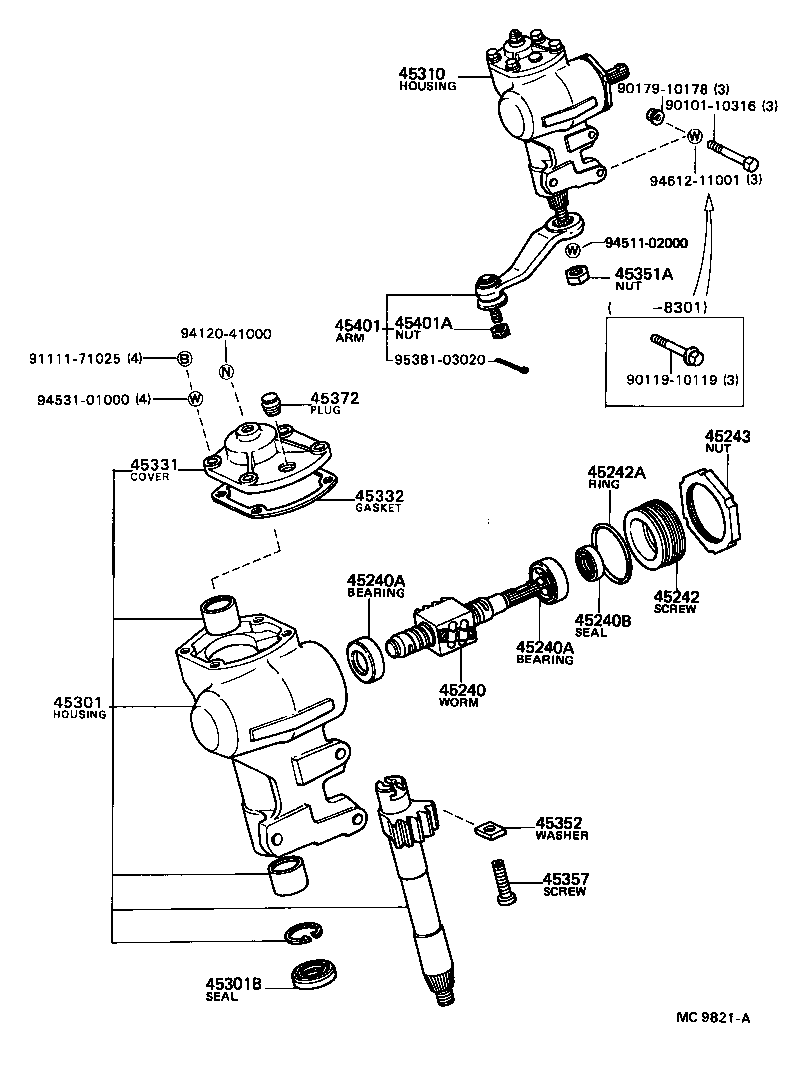

(8101- )CE70,TE7#..LHD ; (8101- )KE70..DV,WG..LHD..GEN,SAA

Click highlighted areas on diagram

diagram 45240 45240A 45240A 45240B 45242 45242A 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010110316 9011910119 9017910178 9111171025 9412041000 9451102000 9453101000 9461211001 9538103020
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-12050

CE70,TE7#..LHD

 1
45240A - BEARING(FOR STEERING WORM)
90369-40037

TE7#..LHD

 2
45240A - BEARING(FOR STEERING WORM)
90369-40037

TE7#..LHD

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-17092

TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-12041

TE7#..LHD

 1
45242A - RING, O(FOR WORM BEARING ADJUSTING SCREW)
90301-53181

TE7#..LHD

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-22020

TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-12221

CE70,TE7#..LHD

 1
45301-12220

TE7#..LHD

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-34003

TE7#..LHD

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-12210

TE7#..LHD

 1
45310-12211

CE70,TE7#..LHD

 1
45331 - COVER, SECTOR SHAFT END
45304-12030

TE7#..LHD

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-12040

TE7#..LHD

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-12010

TE7#..LHD

T=2.00

 1
45352-12030

TE7#..LHD

T=2.08

 1
45352-12050

TE7#..LHD

T=2.16

 1
45352-12020

TE7#..LHD

T=2.04

 1
45352-12040

TE7#..LHD

T=2.12

 1
45352-12060

TE7#..LHD

T=2.20

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-12010

TE7#..LHD

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
45401 - ARM SUB-ASSY, PITMAN
45401-19195

CE70,TE7#..LHD

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-12028

CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA)

 1
Common parts
90101-10316
90119-10119
90179-10178
91111-71025
94120-41000
94511-02000
94531-01000
94612-11001
95381-03020
