TE71L-EEKDS (1979)
Toyota Corolla
(7908-8008)DV,SED,WG..GEN

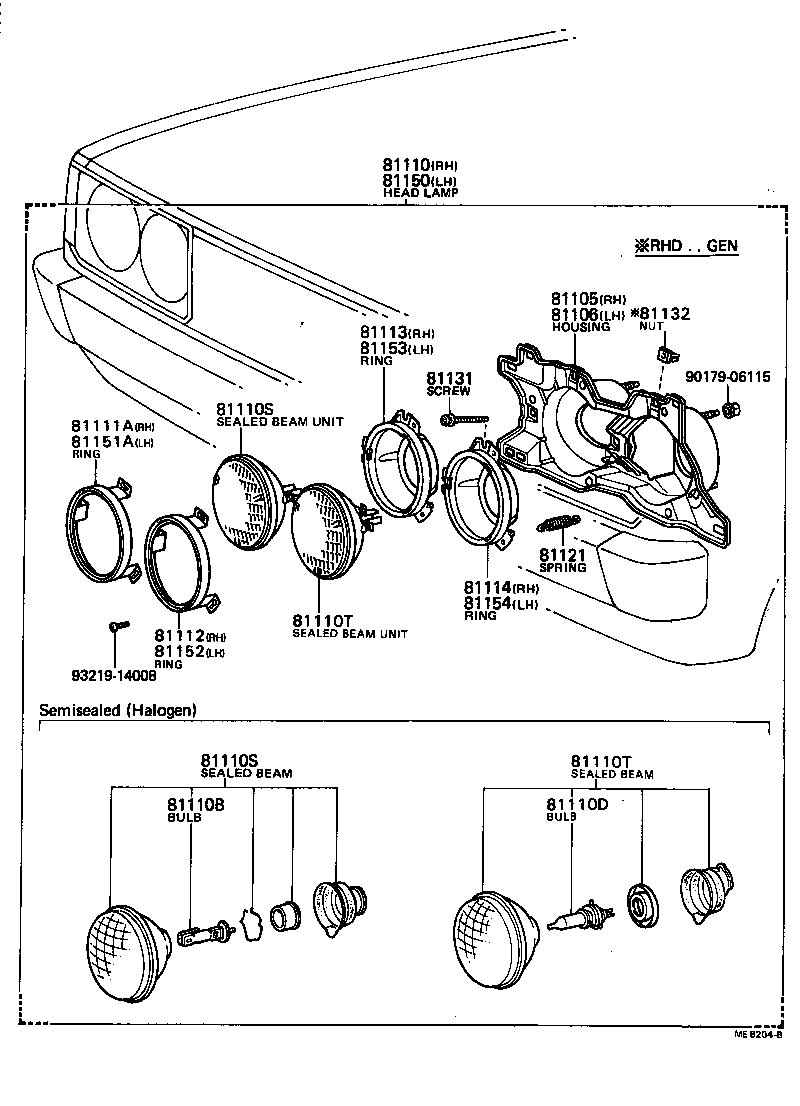

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-12550 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| 81105-12560 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-12490 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81106-12480 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80029 |
KE70,TE71..(DV,SED,WG)..LHD..GEN KOITO |
1 | ||
| 81110-80030 |
KE70,TE71..(DV,SED,WG)..LHD..GEN IKI |
1 | ||
| 81110-80058 |
KE70,TE71..(DV,SED,WG)..LHD..GEN SEMI-SEALED TYPE,WHITE |
1 | ||
| 81110-80034 |
TE71..GT..GEN;KE70..LHD..4D..EUG;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE);KE70..(CP,DV,LB,WG)..LHD..2D SEMI-SEALED TYPE,WHITE |
1 | ||
| 81110-80031 |
KE70,TE71..LHD..GEN KOITO |
1 | ||
| 81110-80036 |
TE71..GT..GEN;KE70..LHD..4D..EUG;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE);KE70..(CP,DV,LB,WG)..LHD..2D SEMI-SEALED TYPE,YELLOW |
1 | ||
| 81110-80159 |
TE71..(SED,WG)..LHD;KE70..LHD..(GL,STD,XL);CE70,KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA) |
1 | ||
| 81110-80059 |
KE70,TE71..(DV,SED,WG)..LHD..GEN SEMI-SEALED TYPE,YELLOW |
1 | ||
| 81110-80160 |
CE70,KE70,TE71..(DV,SED,WG)..LHD HALOGEN,WHITE |
1 | ||
| 81110-80032 |
KE70,TE71..LHD..GEN IKI |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13013 |
KE70,TE71..LHD..GEN 12V 45/40W,WHITE,12V 45/40W,WHITE |
2 | ||
| 90981-13014 |
TE71..GT..GEN;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..EUG;TE71..LHD..(DX,SE,SR,STD,XE) 12V 45/40W,YELLOW,12V 45/40W,YELLOW |
2 | ||
| 90981-13013 |
TE71..GT..GEN;KE70,TE71..(DX,GL,SE,SR,STD,XE,XL)..(EUR,GEN,SA) 12V 45/40W,WHITE |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13014 |
KE70,TE71..LHD..GEN 12V 45/40W,YELLOW,12V 45/40W,YELLOW |
2 | ||
| 90981-13013 |
KE70,TE71..LHD..GEN 12V 45/40W,WHITE,12V 45/40W,WHITE |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02011 |
KE70,TE71..(DV,SED,WG)..GEN 12V 37.5W,*WB,12V 37.5W,KOITO |
2 | ||
| 90981-04006 |
TE71..GT..GEN;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..EUG;TE71..LHD..(DX,SE,SR,STD,XE) 12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE |
2 | ||
| 90981-02018 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED |
2 | ||
| 90981-02044 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 37.5W,IKI |
2 | ||
| 90981-04007 |
TE71..GT..GEN;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..EUG;TE71..LHD..(DX,SE,SR,STD,XE) 12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 90981-02020 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 90981-04003 |
KE70,TE71..LHD..GEN 12V 65/55W,*WB,12V 65/55W,IKI |
2 | ||
| 90981-04004 |
KE70,TE71..LHD..GEN 12V 65/55W,*WB,12V 65/55W,KOITO |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02011 |
KE70,TE71..(DV,SED,WG)..GEN 12V 37.5W,*WB,12V 37.5W,KOITO |
2 | ||
| 90981-04006 |
TE71..GT..GEN;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..EUG;TE71..LHD..(DX,SE,SR,STD,XE) 12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE |
2 | ||
| 90981-02018 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED |
2 | ||
| 90981-02044 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 37.5W,IKI |
2 | ||
| 90981-04007 |
TE71..GT..GEN;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..EUG;TE71..LHD..(DX,SE,SR,STD,XE) 12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 90981-02020 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 90981-04003 |
KE70,TE71..LHD..GEN 12V 65/55W,*WB,12V 65/55W,IKI |
2 | ||
| 90981-04004 |
KE70,TE71..LHD..GEN 12V 65/55W,*WB,12V 65/55W,KOITO |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02021 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 90981-02013 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 37.5/50W,*WB,12V 37.5/50W,KOITO |
2 | ||
| 90981-02019 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE |
2 | ||
| 90981-02041 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 37.5/50W,*WB,12V 37.5/50W,IKI |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02021 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 90981-02013 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 37.5/50W,*WB,12V 37.5/50W,KOITO |
2 | ||
| 90981-02019 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE |
2 | ||
| 90981-02041 |
KE70,TE71..(DV,SED,WG)..LHD..GEN 12V 37.5/50W,*WB,12V 37.5/50W,IKI |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-20280 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| 81111-14261 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-20280 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| 81111-14261 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-14260 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81153-16020 |
KE70,TE7# KOITO |
1 | ||
| 81153-16010 |
KE70,TE7# IKI |
1 | ||
| 81113-20100 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81154-20100 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| 81154-14260 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-20100 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
4 | ||
| 90506-18018 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
4 | ||
| 81121-16010 |
KE70,TE7# IKI |
2 | ||
| 81121-16020 |
KE70,TE7# KOITO |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-16010 |
KE70,TE7# IKI |
4 | ||
| 81131-10031 |
KE70,TE7# KOITO |
4 | ||
| 81131-20053 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
8 | ||
| 81131-20043 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
8 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 81132-20380 |
KE70,TE71..(DV,SED,WG)..GEN |
8 | ||
| 90189-05015 |
KE70,TE7# |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80030 |
KE70,TE71..(DV,SED,WG)..LHD..GEN IKI |
1 | ||
| 81150-80029 |
KE70,TE71..(DV,SED,WG)..LHD..GEN KOITO |
1 | ||
| 81150-80056 |
KE70,TE71..(DV,SED,WG)..LHD SEMI-SEALED TYPE,YELLOW |
1 | ||
| 81150-80055 |
KE70,TE71..(DV,SED,WG)..LHD SEMI-SEALED TYPE,WHITE |
1 | ||
| 81150-80034 |
TE71..GT..GEN;KE70..LHD..4D..EUG;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE);KE70..(CP,DV,LB,WG)..LHD..2D SEMI-SEALED TYPE,WHITE |
1 | ||
| 81150-80032 |
KE70,TE71..LHD..GEN IKI |
1 | ||
| 81150-80036 |
TE71..GT..GEN;KE70..LHD..4D..EUG;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE);KE70..(CP,DV,LB,WG)..LHD..2D SEMI-SEALED TYPE,YELLOW |
1 | ||
| 81150-80156 |
TE71..(SED,WG)..LHD;KE70..LHD..(GL,STD,XL);CE70,KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA) |
1 | ||
| 81150-80157 |
CE70,KE70,TE71..(DV,SED,WG)..LHD HALOGEN,WHITE |
1 | ||
| 81150-80031 |
KE70,TE71..LHD..GEN KOITO |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-20280 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| 81111-14261 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81111-20280 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| 81111-14261 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81113-16020 |
KE70,TE7# KOITO |
1 | ||
| 81113-16010 |
KE70,TE7# IKI |
1 | ||
| 81153-20100 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| 81153-14260 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81114-14260 |
KE70,TE71..(DV,SED,WG)..GEN IKI |
1 | ||
| 81114-20100 |
KE70,TE71..(DV,SED,WG)..GEN KOITO |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 93219-14008 | ||||
(8108-8305)TE72..ARL,EUR ; (8108-8305)CE70,KE70,TE71..EUR,GEN,SAA ; (8204-8305)SA ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04817 - HEADLAMP KIT, W/O SEALED BEAM, RH | ||||
| 04817-12030 |
KE70,TE71..(DV,SED,WG)..LHD HALOGEN |
1 | ||
| 04818 - HEADLAMP KIT, W/O SEALED BEAM, LH | ||||
| 04818-12030 |
KE70,TE71..(DV,SED,WG)..LHD HALOGEN |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80029 |
KE70,TE71..(DV,SED,WG)..LHD..GEN KOITO |
1 | ||
| 81110-80030 |
KE70,TE71..(DV,SED,WG)..LHD..GEN IKI |
1 | ||
| 81110-80058 |
KE70,TE71..(DV,SED,WG)..LHD..GEN SEMI-SEALED TYPE,WHITE |
1 | ||
| 81110-80034 |
TE71..GT..GEN;KE70..LHD..4D..EUG;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE);KE70..(CP,DV,LB,WG)..LHD..2D SEMI-SEALED TYPE,WHITE |
1 | ||
| 81110-80031 |
KE70,TE71..LHD..GEN KOITO |
1 | ||
| 81110-80036 |
TE71..GT..GEN;KE70..LHD..4D..EUG;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE);KE70..(CP,DV,LB,WG)..LHD..2D SEMI-SEALED TYPE,YELLOW |
1 | ||
| 81110-80159 |
TE71..(SED,WG)..LHD;KE70..LHD..(GL,STD,XL);CE70,KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA) |
1 | ||
| 81110-80059 |
KE70,TE71..(DV,SED,WG)..LHD..GEN SEMI-SEALED TYPE,YELLOW |
1 | ||
| 81110-80160 |
CE70,KE70,TE71..(DV,SED,WG)..LHD HALOGEN,WHITE |
1 | ||
| 81110-80032 |
KE70,TE71..LHD..GEN IKI |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13013 |
KE70,TE71..LHD..GEN 12V 45/40W,WHITE,12V 45/40W,WHITE |
2 | ||
| 90981-13014 |
TE71..GT..GEN;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..EUG;TE71..LHD..(DX,SE,SR,STD,XE) 12V 45/40W,YELLOW,12V 45/40W,YELLOW |
2 | ||
| 90981-13013 |
TE71..GT..GEN;KE70,TE71..(DX,GL,SE,SR,STD,XE,XL)..(EUR,GEN,SA) 12V 45/40W,WHITE |
2 | ||
| 81115A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH | ||||
| 81135-12671 |
TE71..(SED,WG)..LHD;KE70..LHD..(GL,STD,XL);CE70,KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA) |
1 | ||
| 81135-12681 |
CE70,KE70,TE71..(DV,SED,WG)..LHD HALOGEN |
1 | ||
| 81116A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH | ||||
| 81175-12611 |
CE70,KE70,TE71..(DV,SED,WG)..LHD HALOGEN |
1 | ||
| 81175-12601 |
TE71..(SED,WG)..LHD;KE70..LHD..(GL,STD,XL);CE70,KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA) |
1 | ||
| 81117 - PACKING, HEADLAMP HOUSING | ||||
| 81147-30490 |
CE70,KE70,TE7# |
2 | ||
| 81146 - LENS, HEADLAMP, RH | ||||
| 81146-30471 |
TE72..SDN;CE70,KE70,TE71..LHD HALOGEN |
1 | ||
| 81146-12761 |
TE71..GT..GEN;KE70..LHD..(GL,STD,XL);CE70,KE70..LHD..DX..EUG;KE70..LHD..DX..(GEN,SAA);TE71..LHD..(DX,SR,STD,XE) |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80030 |
KE70,TE71..(DV,SED,WG)..LHD..GEN IKI |
1 | ||
| 81150-80029 |
KE70,TE71..(DV,SED,WG)..LHD..GEN KOITO |
1 | ||
| 81150-80056 |
KE70,TE71..(DV,SED,WG)..LHD SEMI-SEALED TYPE,YELLOW |
1 | ||
| 81150-80055 |
KE70,TE71..(DV,SED,WG)..LHD SEMI-SEALED TYPE,WHITE |
1 | ||
| 81150-80034 |
TE71..GT..GEN;KE70..LHD..4D..EUG;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE);KE70..(CP,DV,LB,WG)..LHD..2D SEMI-SEALED TYPE,WHITE |
1 | ||
| 81150-80032 |
KE70,TE71..LHD..GEN IKI |
1 | ||
| 81150-80036 |
TE71..GT..GEN;KE70..LHD..4D..EUG;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE);KE70..(CP,DV,LB,WG)..LHD..2D SEMI-SEALED TYPE,YELLOW |
1 | ||
| 81150-80156 |
TE71..(SED,WG)..LHD;KE70..LHD..(GL,STD,XL);CE70,KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA) |
1 | ||
| 81150-80157 |
CE70,KE70,TE71..(DV,SED,WG)..LHD HALOGEN,WHITE |
1 | ||
| 81150-80031 |
KE70,TE71..LHD..GEN KOITO |
1 | ||
| 81186 - LENS, HEADLAMP, LH | ||||
| 81146-12761 |
TE71..GT..GEN;KE70..LHD..(GL,STD,XL);CE70,KE70..LHD..DX..EUG;KE70..LHD..DX..(GEN,SAA);TE71..LHD..(DX,SR,STD,XE) |
1 | ||
| 81146-30471 |
TE72..SDN;CE70,KE70,TE71..LHD HALOGEN |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
