TE71L-ECMXB (1979)

Toyota Corolla

Production Aug 1979 - May 1983
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8305)TE7#..MTM ; (8305-8502)TE71..MTM

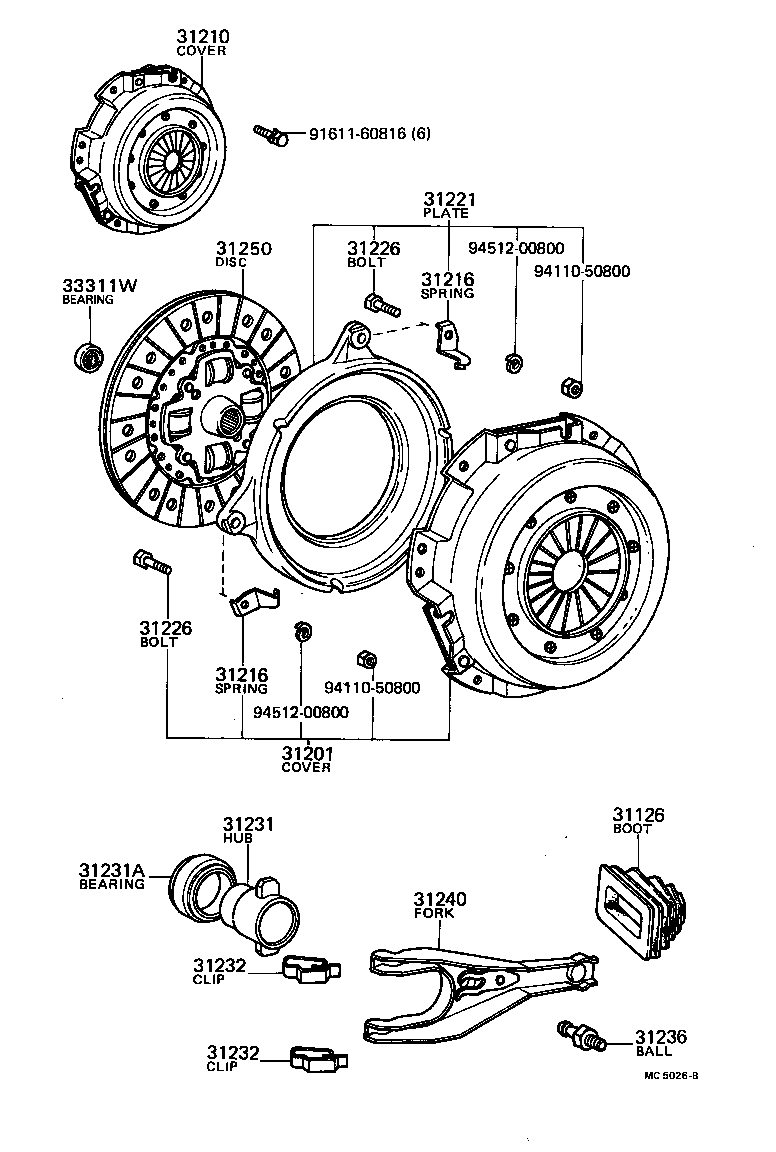

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31231 31231A 31232 31232 31236 31240 31250 33311W 9161160816 9411050800 9411050800 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-22040

TE7#..MTM

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29058

TE71..MTM..(DX,GL,SE,SR,STD,XE)

 1
31210 - COVER ASSY, CLUTCH
31210-14013

TE71..MTM..(DX,GL,SE,SR,STD,XE)

 1
31216 - SPRING, CLUTCH RETRACTING
31216-20020

TE7#..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-20020

TE7#..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-19015

TE71..MTM

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

TE7#..MTM

 3
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

TE7#..MTM

 3
31231 - HUB, CLUTCH RELEASE BEARING
31231-14032

TE7#

 1
31231-14031

TE7#..MTM

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40015

TE7#..MTM

 1
90363-40008

TE7#..MTM

 1
90363-40001

TE7#..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

AE71,CE70,TE7#..MTM

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

AE71,CE70,TE7#..MTM

 2
31236 - BALL, RELEASE FORK
31236-20020

TE7#..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-22030

TE7#..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-14090

TE71..MTM

 1
31250-14090

TE71..MTM..(DX,GL,SE,SR,STD,XE)

 1
31250-12061

TE71..MTM..(EUR,GEN,SAA)

 1
31250-14090

TE71..MTM..(DX,GL,SE,SR,STD,XE)

 1
33311W - BEARING (FOR INPUT SHAFT)
97123-06001

TE7#..MTM;KE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM

 1
Common parts
91611-60816
94110-50800
94512-00800
