TE71L-ECMQGW (1979)
Toyota Corolla

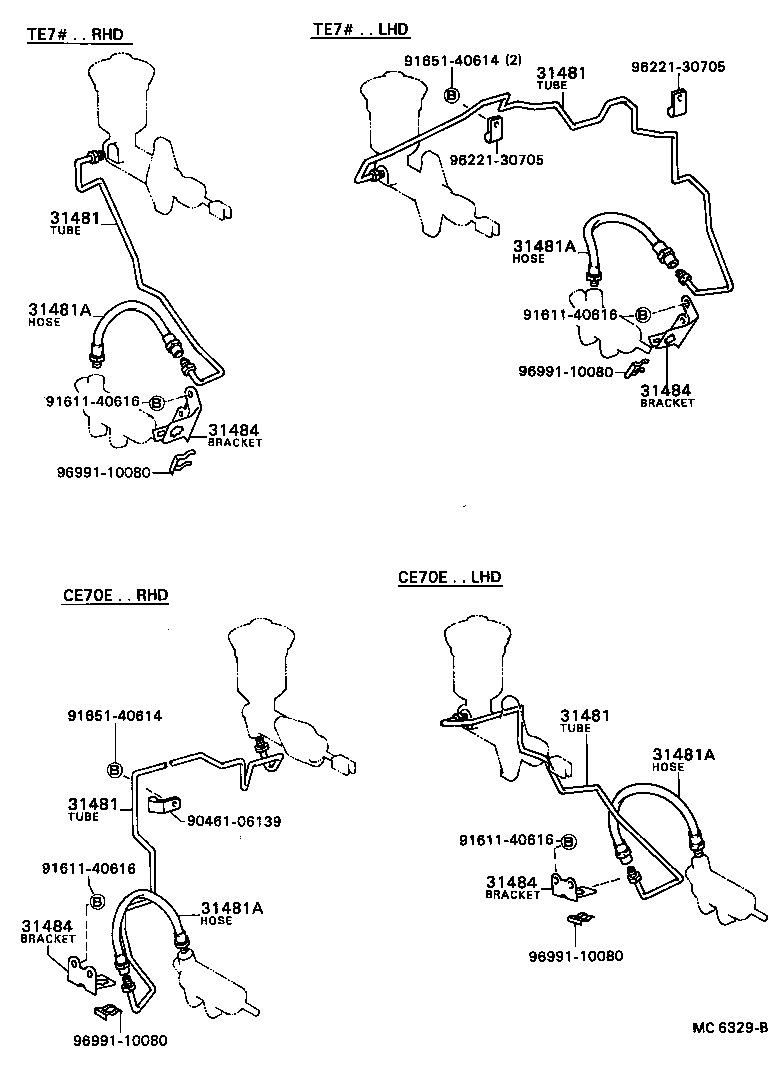

(7908- )CE70,TE7#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12060 |
TE7#..LHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12060 |
TE7#..LHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12060 |
TE7#..LHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12060 |
TE7#..LHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-32404 |
AE71,CE70,TE7#..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-32404 |
AE71,CE70,TE7#..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-32404 |
AE71,CE70,TE7#..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-32404 |
AE71,CE70,TE7#..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-12030 |
TE7#..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-12030 |
TE7#..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-12030 |
TE7#..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-12030 |
TE7#..MTM |
1 | ||
| Common parts | ||||
| 90461-06139 | ||||
| 91611-40616 | ||||
| 91651-40614 | ||||
| 96221-30705 | ||||
| 96991-10080 | ||||

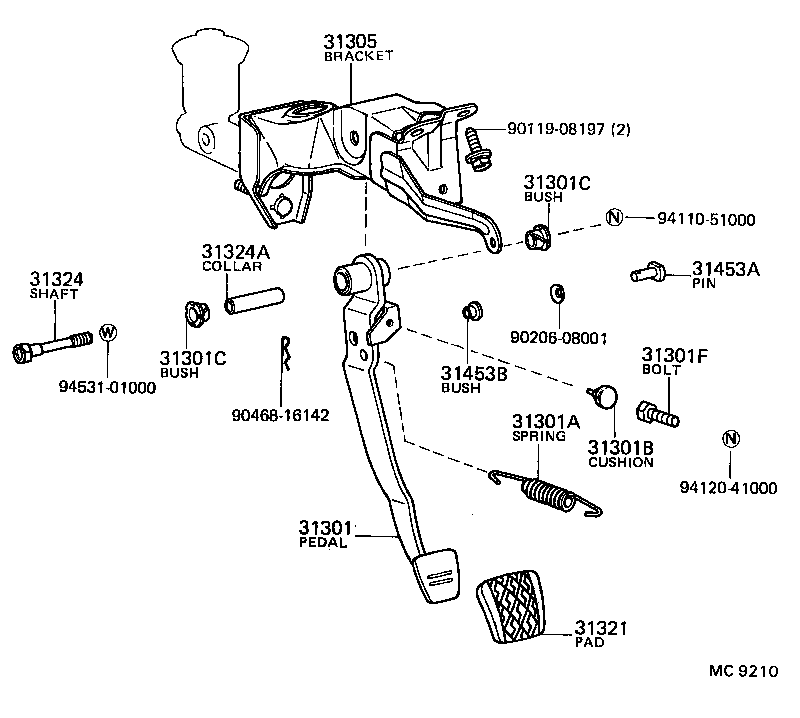

(7908- )CE70,TE7#..LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12150 |
TE7#..LHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14003 |
KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12010 |
CE70,TE7#..LHD..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12030 |
KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
KE70..CP..5F;KE70..CP..LHD..4F;AE71,CE70,TE7#..MTM;KE70..(DV,LB,SED,WG)..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AE71,CE70,TE7#..MTM L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AE71,CE70,TE7#..MTM |
1 | ||
| Common parts | ||||
| 90119-08197 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
