TE71L-ECMQGW (1979)
Toyota Corolla

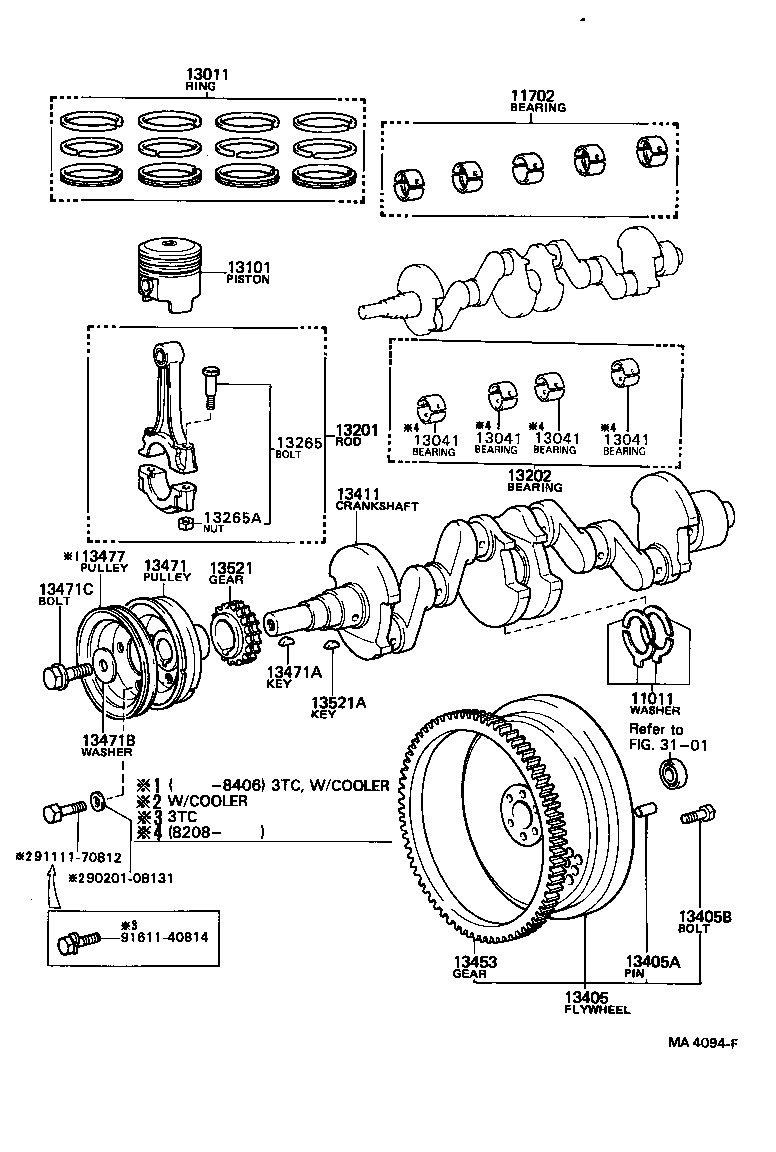

(7908-8502)2T,2TB,3T#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
2T#,3T#..TE7# STD,STD |
1 | ||
| 11012-25010 |
2T#,3T#..TE7# O/S 0.125 |
1 | ||
| 11013-25010 |
2T#,3T#..TE7# O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-88261 |
2TG..TE71 STD |
1 | ||
| 11703-88261 |
2TG..TE71 U/S 0.05 |
1 | ||
| 11702-25013 |
2T,2TB,3T#..TE7# STD |
1 | ||
| 11703-25013 |
2T,2TB,3T#..TE7# U/S 0.05 |
1 | ||
| 11705-88261 |
2TG..TE71 U/S 0.50 |
1 | ||
| 11704-25013 |
2T,2TB,3T#..TE7# U/S 0.25 |
1 | ||
| 11705-25013 |
2T,2TB,3T#..TE7# U/S 0.50 |
1 | ||
| 11704-88261 |
2TG..TE71 U/S 0.25 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13014-28030 |
2T,2TB,3T#..TE7# O/S 0.75 |
1 | ||
| 13011-88222 |
2TG..TE71 STD |
1 | ||
| 13015-28030 |
2T,2TB,3T#..TE7# O/S 1.00 |
1 | ||
| 13013-28030 |
2T,2TB,3T#..TE7# O/S 0.50 |
1 | ||
| 13015-88222 |
2TG..TE71 O/S 1.00 |
1 | ||
| 13014-88222 |
2TG..TE71 O/S 0.75 |
1 | ||
| 13013-88222 |
2TG..TE71 O/S 0.50 |
1 | ||
| 13011-28030 |
2T,2TB,3T#..TE7# STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801004 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"4",MARK 4 |
4 | ||
| 13041-1801006 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"6",MARK 6 |
4 | ||
| 13041-1801005 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"5",MARK 5 |
4 | ||
| 13041-1801007 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"7",MARK 7 |
4 | ||
| 13041-8828105 |
2TG..TE71 MARK"5",MARK 5 |
4 | ||
| 13041-8828107 |
2TG..TE71 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"3",MARK 3 |
4 | ||
| 13041-8828103 |
2TG..TE71 MARK"3",MARK 3 |
4 | ||
| 13041-8828104 |
2TG..TE71 MARK"4",MARK 4 |
4 | ||
| 13041-8828106 |
2TG..TE71 MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801004 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"4",MARK 4 |
4 | ||
| 13041-1801006 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"6",MARK 6 |
4 | ||
| 13041-1801005 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"5",MARK 5 |
4 | ||
| 13041-1801007 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"7",MARK 7 |
4 | ||
| 13041-8828105 |
2TG..TE71 MARK"5",MARK 5 |
4 | ||
| 13041-8828107 |
2TG..TE71 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"3",MARK 3 |
4 | ||
| 13041-8828103 |
2TG..TE71 MARK"3",MARK 3 |
4 | ||
| 13041-8828104 |
2TG..TE71 MARK"4",MARK 4 |
4 | ||
| 13041-8828106 |
2TG..TE71 MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801004 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"4",MARK 4 |
4 | ||
| 13041-1801006 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"6",MARK 6 |
4 | ||
| 13041-1801005 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"5",MARK 5 |
4 | ||
| 13041-1801007 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"7",MARK 7 |
4 | ||
| 13041-8828105 |
2TG..TE71 MARK"5",MARK 5 |
4 | ||
| 13041-8828107 |
2TG..TE71 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"3",MARK 3 |
4 | ||
| 13041-8828103 |
2TG..TE71 MARK"3",MARK 3 |
4 | ||
| 13041-8828104 |
2TG..TE71 MARK"4",MARK 4 |
4 | ||
| 13041-8828106 |
2TG..TE71 MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801004 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"4",MARK 4 |
4 | ||
| 13041-1801006 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"6",MARK 6 |
4 | ||
| 13041-1801005 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"5",MARK 5 |
4 | ||
| 13041-1801007 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"7",MARK 7 |
4 | ||
| 13041-8828105 |
2TG..TE71 MARK"5",MARK 5 |
4 | ||
| 13041-8828107 |
2TG..TE71 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"3",MARK 3 |
4 | ||
| 13041-8828103 |
2TG..TE71 MARK"3",MARK 3 |
4 | ||
| 13041-8828104 |
2TG..TE71 MARK"4",MARK 4 |
4 | ||
| 13041-8828106 |
2TG..TE71 MARK"6",MARK 6 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13104-27011 |
2TG..TE71 O/S 0.75 |
4 | ||
| 13105-27011 |
2TG..TE71 O/S 1.00 |
4 | ||
| 13104-88223 |
2TG..TE71 O/S 0.75 |
4 | ||
| 13103-27011 |
2TG..TE71 O/S 0.50 |
4 | ||
| 13104-26031 |
2T,2TB..TE71 O/S 0.75 |
4 | ||
| 13103-88223 |
2TG..TE71 O/S 0.50 |
4 | ||
| 13101-88223 |
2TG..TE71 STD |
4 | ||
| 13105-26031 |
2T,2TB..TE71 O/S 1.00 |
4 | ||
| 13101-26031 |
2T,2TB..TE71 STD |
4 | ||
| 13103-26031 |
2T,2TB..TE71 O/S 0.50 |
4 | ||
| 13105-88223 |
2TG..TE71 O/S 1.00 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-25010 |
2TG..TE71 |
4 | ||
| 13201-25010 |
2T#,3T#..TE7# |
4 | ||
| 13201-71011 |
2TG..TE71 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-88261 |
2TG..TE71 STD |
1 | ||
| 13202-25010 |
2T,2TB,3T#..TE7# STD |
1 | ||
| 13203-88261 |
2TG..TE71 U/S 0.05 |
1 | ||
| 13204-88261 |
2TG..TE71 U/S 0.25 |
1 | ||
| 13203-88280 |
2TG..TE71 U/S 0.05 |
1 | ||
| 13204-18010 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F U/S 0.25 |
1 | ||
| 13204-25010 |
2T,2TB,3T#..TE7# U/S 0.25 |
1 | ||
| 13205-18010 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F U/S 0.50 |
1 | ||
| 13204-88280 |
2TG..TE71 U/S 0.25 |
1 | ||
| 13205-88261 |
2TG..TE71 U/S 0.50 |
1 | ||
| 13205-88280 |
2TG..TE71 U/S 0.50 |
1 | ||
| 13203-25010 |
2T,2TB,3T#..TE7# U/S 0.05 |
1 | ||
| 13205-25010 |
2T,2TB,3T#..TE7# U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
2T#,3T#..TE7# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
2T#,3T#..TE7# |
8 | ||
| 90170-09195 |
2T#,3TC..TE7# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-29067 |
2T#,3TC..TE7#..MTM..(EUR,GEN) N=115 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2T#,3T#..TE7#..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10030 |
2TG..TE71 |
6 | ||
| 90105-10042 |
2T,2TB,3T#..TE7#..MTM *10-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-27904 |
2TG..TE71 |
1 | ||
| 13411-25012 |
2T,2TB..TE71 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
2T#,3T#..TE7#..MTM N=115 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-25010 |
2TG..TE71 |
1 | ||
| 13471-18010 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN |
1 | ||
| 13471-88260 |
2TG..TE71 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
2T#,3T#..TE7# |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13003 |
2T#,3T#..TE7# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12050 |
2T#,3TC..TE7# |
1 | ||
| 90105-12051 |
2T,2TB,3TC..TE7# |
1 | ||
| 90105-12050 |
2TG..TE71 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 13477-18011 |
2T,2TB..TE71..EUR,GEN,SAA W/COOLER |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-33010 |
2T#,3T#..TE7# N=18 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2T#,3T#..TE7# |
1 | ||
| Common parts | ||||
| 90201-08131 | ||||
| 91111-70812 | ||||
| 91611-40814 | ||||
| Linked diagrams | ||||
| 3101 | ||||

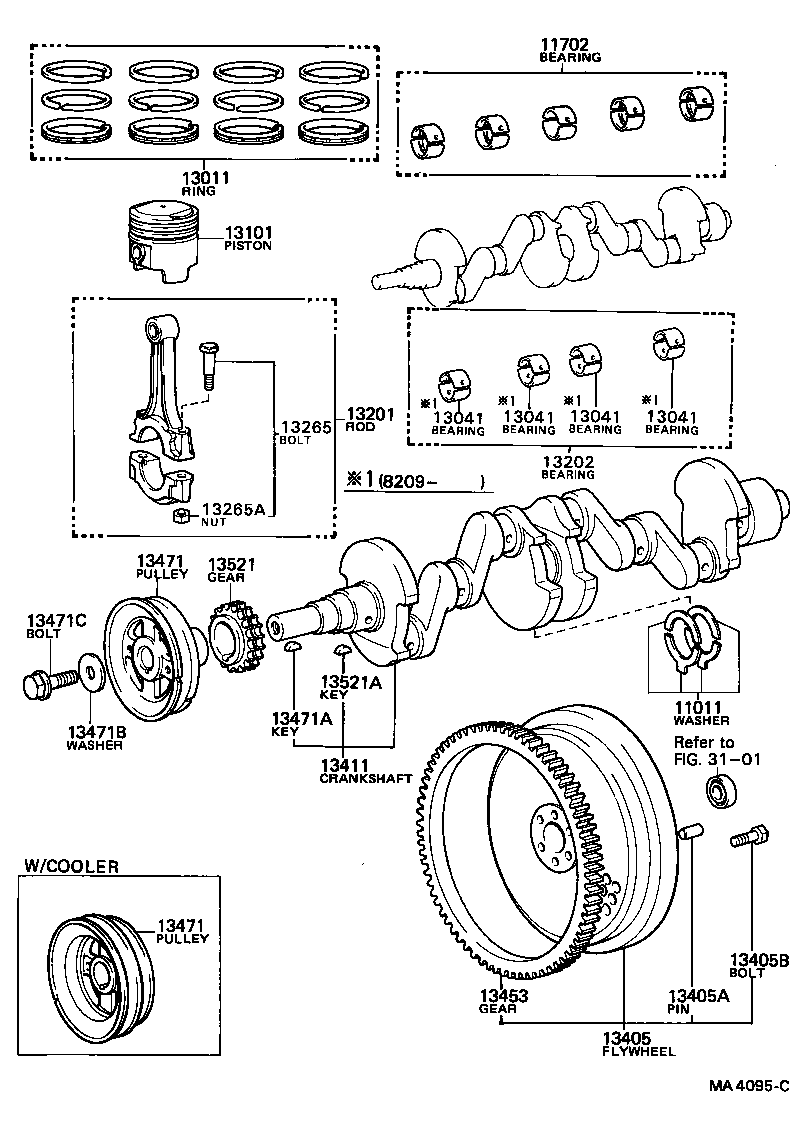

(7908-8305)2TG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
2T#,3T#..TE7# STD,STD |
1 | ||
| 11012-25010 |
2T#,3T#..TE7# O/S 0.125 |
1 | ||
| 11013-25010 |
2T#,3T#..TE7# O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-88261 |
2TG..TE71 STD |
1 | ||
| 11703-88261 |
2TG..TE71 U/S 0.05 |
1 | ||
| 11702-25013 |
2T,2TB,3T#..TE7# STD |
1 | ||
| 11703-25013 |
2T,2TB,3T#..TE7# U/S 0.05 |
1 | ||
| 11705-88261 |
2TG..TE71 U/S 0.50 |
1 | ||
| 11704-25013 |
2T,2TB,3T#..TE7# U/S 0.25 |
1 | ||
| 11705-25013 |
2T,2TB,3T#..TE7# U/S 0.50 |
1 | ||
| 11704-88261 |
2TG..TE71 U/S 0.25 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13014-28030 |
2T,2TB,3T#..TE7# O/S 0.75 |
1 | ||
| 13011-88222 |
2TG..TE71 STD |
1 | ||
| 13015-28030 |
2T,2TB,3T#..TE7# O/S 1.00 |
1 | ||
| 13013-28030 |
2T,2TB,3T#..TE7# O/S 0.50 |
1 | ||
| 13014-88222 |
2TG..TE71 O/S 0.75 |
1 | ||
| 13015-88222 |
2TG..TE71 O/S 1.00 |
1 | ||
| 13013-88222 |
2TG..TE71 O/S 0.50 |
1 | ||
| 13011-28030 |
2T,2TB,3T#..TE7# STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801004 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"4",MARK 4 |
4 | ||
| 13041-1801006 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"6",MARK 6 |
4 | ||
| 13041-1801005 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"5",MARK 5 |
4 | ||
| 13041-1801007 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"7",MARK 7 |
4 | ||
| 13041-8828105 |
2TG..TE71 MARK"5",MARK 5 |
4 | ||
| 13041-8828107 |
2TG..TE71 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"3",MARK 3 |
4 | ||
| 13041-8828103 |
2TG..TE71 MARK"3",MARK 3 |
4 | ||
| 13041-8828104 |
2TG..TE71 MARK"4",MARK 4 |
4 | ||
| 13041-8828106 |
2TG..TE71 MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801004 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"4",MARK 4 |
4 | ||
| 13041-1801006 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"6",MARK 6 |
4 | ||
| 13041-1801005 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"5",MARK 5 |
4 | ||
| 13041-1801007 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"7",MARK 7 |
4 | ||
| 13041-8828105 |
2TG..TE71 MARK"5",MARK 5 |
4 | ||
| 13041-8828107 |
2TG..TE71 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"3",MARK 3 |
4 | ||
| 13041-8828103 |
2TG..TE71 MARK"3",MARK 3 |
4 | ||
| 13041-8828104 |
2TG..TE71 MARK"4",MARK 4 |
4 | ||
| 13041-8828106 |
2TG..TE71 MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801004 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"4",MARK 4 |
4 | ||
| 13041-1801006 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"6",MARK 6 |
4 | ||
| 13041-1801005 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"5",MARK 5 |
4 | ||
| 13041-1801007 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"7",MARK 7 |
4 | ||
| 13041-8828105 |
2TG..TE71 MARK"5",MARK 5 |
4 | ||
| 13041-8828107 |
2TG..TE71 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"3",MARK 3 |
4 | ||
| 13041-8828103 |
2TG..TE71 MARK"3",MARK 3 |
4 | ||
| 13041-8828104 |
2TG..TE71 MARK"4",MARK 4 |
4 | ||
| 13041-8828106 |
2TG..TE71 MARK"6",MARK 6 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1801004 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"4",MARK 4 |
4 | ||
| 13041-1801006 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"6",MARK 6 |
4 | ||
| 13041-1801005 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"5",MARK 5 |
4 | ||
| 13041-1801007 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"7",MARK 7 |
4 | ||
| 13041-8828105 |
2TG..TE71 MARK"5",MARK 5 |
4 | ||
| 13041-8828107 |
2TG..TE71 MARK"7",MARK 7 |
4 | ||
| 13041-1801003 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F MARK"3",MARK 3 |
4 | ||
| 13041-8828103 |
2TG..TE71 MARK"3",MARK 3 |
4 | ||
| 13041-8828104 |
2TG..TE71 MARK"4",MARK 4 |
4 | ||
| 13041-8828106 |
2TG..TE71 MARK"6",MARK 6 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13104-27011 |
2TG..TE71 O/S 0.75 |
4 | ||
| 13105-27011 |
2TG..TE71 O/S 1.00 |
4 | ||
| 13104-88223 |
2TG..TE71 O/S 0.75 |
4 | ||
| 13103-27011 |
2TG..TE71 O/S 0.50 |
4 | ||
| 13104-26031 |
2T,2TB..TE71 O/S 0.75 |
4 | ||
| 13103-88223 |
2TG..TE71 O/S 0.50 |
4 | ||
| 13101-88223 |
2TG..TE71 STD |
4 | ||
| 13105-26031 |
2T,2TB..TE71 O/S 1.00 |
4 | ||
| 13101-26031 |
2T,2TB..TE71 STD |
4 | ||
| 13103-26031 |
2T,2TB..TE71 O/S 0.50 |
4 | ||
| 13105-88223 |
2TG..TE71 O/S 1.00 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-25010 |
2TG..TE71 |
4 | ||
| 13201-25010 |
2T#,3T#..TE7# |
4 | ||
| 13201-71011 |
2TG..TE71 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-88261 |
2TG..TE71 STD |
1 | ||
| 13202-25010 |
2T,2TB,3T#..TE7# STD |
1 | ||
| 13203-88261 |
2TG..TE71 U/S 0.05 |
1 | ||
| 13204-88261 |
2TG..TE71 U/S 0.25 |
1 | ||
| 13203-88280 |
2TG..TE71 U/S 0.05 |
1 | ||
| 13204-18010 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F U/S 0.25 |
1 | ||
| 13204-25010 |
2T,2TB,3T#..TE7# U/S 0.25 |
1 | ||
| 13205-18010 |
2T,2TB,3TC..TE7#;3T..TE72..4FC,5F U/S 0.50 |
1 | ||
| 13204-88280 |
2TG..TE71 U/S 0.25 |
1 | ||
| 13205-88261 |
2TG..TE71 U/S 0.50 |
1 | ||
| 13205-88280 |
2TG..TE71 U/S 0.50 |
1 | ||
| 13203-25010 |
2T,2TB,3T#..TE7# U/S 0.05 |
1 | ||
| 13205-25010 |
2T,2TB,3T#..TE7# U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
2T#,3T#..TE7# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
2T#,3T#..TE7# |
8 | ||
| 90170-09195 |
2T#,3TC..TE7# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-29067 |
2T#,3TC..TE7#..MTM..(EUR,GEN) N=115 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2T#,3T#..TE7#..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10030 |
2TG..TE71 |
6 | ||
| 90105-10042 |
2T,2TB,3T#..TE7#..MTM *10-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-27904 |
2TG..TE71 |
1 | ||
| 13411-25012 |
2T,2TB..TE71 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
2T#,3T#..TE7#..MTM N=115 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-25010 |
2TG..TE71 |
1 | ||
| 13471-18010 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN |
1 | ||
| 13471-88260 |
2TG..TE71 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-25010 |
2TG..TE71 |
1 | ||
| 13471-18010 |
2T,2TB,3TC..TE7#..ARL,EUR,GEN |
1 | ||
| 13471-88260 |
2TG..TE71 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
2T#,3T#..TE7# |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13003 |
2T#,3T#..TE7# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12050 |
2T#,3TC..TE7# |
1 | ||
| 90105-12051 |
2T,2TB,3TC..TE7# |
1 | ||
| 90105-12050 |
2TG..TE71 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-33010 |
2T#,3T#..TE7# N=18 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2T#,3T#..TE7# |
1 | ||
| Linked diagrams | ||||
| 3101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
