TE71L-ECMQG (1979)
Toyota Corolla

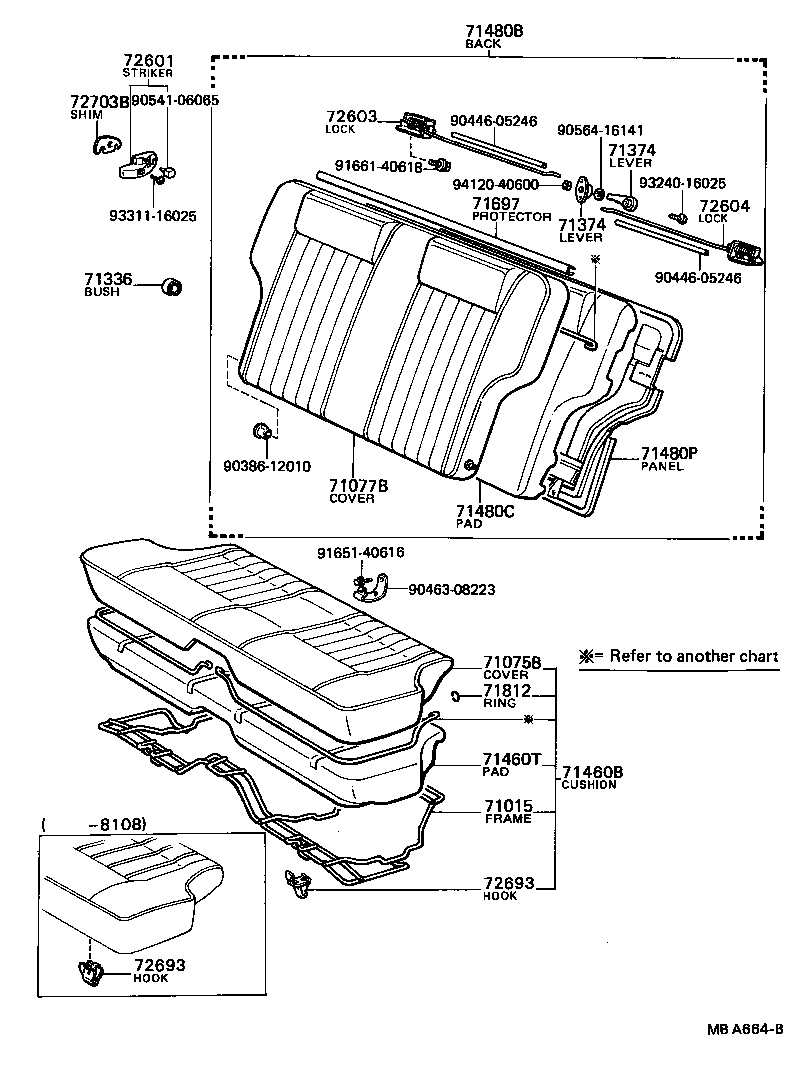

(7908-8305)CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12220 |
KE70,TE71..CP |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A49001 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A49006 |
KE70,TE71..CP..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A49004 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A67001 |
TE71..CP..5F FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71075-1A67006 |
TE71..CP..5F FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71075-1A67004 |
TE71..CP..5F FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71075-1A49101 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A49106 |
KE70,TE71..CP..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A49104 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-12010 |
KE70,TE7#..CP,LB |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A37001 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A37006 |
KE70,TE71..CP..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A37004 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A50001 |
TE71..CP..5F FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71460-1A20006 |
TE7#..GT,SE,XE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71460-1A50004 |
TE71..CP..5F FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71460-1A50006 |
TE71..CP..5F FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71460-1A37106 |
KE70,TE71..CP..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A37104 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A37101 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12320 |
KE70,TE71..CP |
1 | ||
| 71480P - PANEL SUB-ASSY, REAR SEAT BACK | ||||
| 71202-12040 |
KE70,TE7#..CP,LB RH,W/SEPARATE SEAT |
1 | ||
| 71203-12020 |
KE70,TE7#..CP,LB LH,W/SEPARATE SEAT |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE71,CE70,KE70,TE7# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12030 |
KE70,TE7#..CP,LB RH,SEPARATE SEAT |
1 | ||
| 72602-12010 |
KE70,TE7#..CP,LB LH,SEPARATE SEAT |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12040 |
KE70,TE7#..CP,LB SEPARATE SEAT |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12040 |
KE70,TE7#..CP,LB SEPARATE SEAT |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12010 |
KE70,TE7#..(CP,LB,SED)..(EUR,GEN,SAA) |
2 | ||
| 72693-22010 |
KE70,TE7#..CP,LB,SED |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12010 |
KE70,TE7#..(CP,LB,SED)..(EUR,GEN,SAA) |
2 | ||
| 72693-22010 |
KE70,TE7#..CP,LB,SED |
2 | ||
| Common parts | ||||
| 90386-12010 | ||||
| 90446-05246 | ||||
| 90463-08223 | ||||
| 90541-06065 | ||||
| 90564-16141 | ||||
| 91651-40616 | ||||
| 91661-40618 | ||||
| 93240-16025 | ||||
| 93311-16025 | ||||
| 94120-40600 | ||||

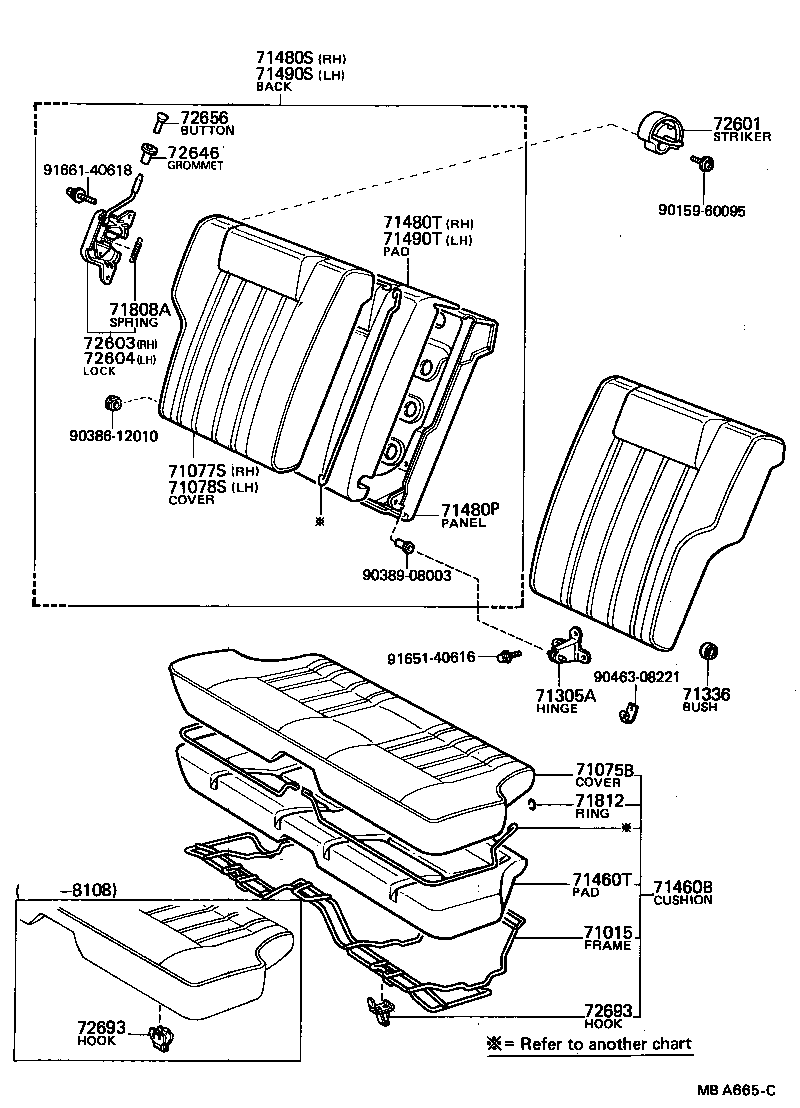

(7908-8305)CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12220 |
KE70,TE71..CP |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A49001 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A49006 |
KE70,TE71..CP..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A49004 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A67001 |
TE71..CP..5F FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71075-1A67006 |
TE71..CP..5F FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71075-1A67004 |
TE71..CP..5F FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71075-1A49101 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A49106 |
KE70,TE71..CP..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A49104 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1E05001 |
KE70,TE71..(CP,LB)..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1E05004 |
KE70,TE71..(CP,LB)..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1A68001 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71077-1A68004 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71077-1E05006 |
KE70,TE71..(CP,LB)..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1E05106 |
KE70,TE71..(CP,LB)..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1A68006 |
TE7#..GT,SE,SR,XE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71077-1E05101 |
KE70,TE71..(CP,LB)..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1E05104 |
KE70,TE71..(CP,LB)..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E05201 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1A68101 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1E05204 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1E05206 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1A68106 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1248001 |
KE70,TE71..(CP,LB)..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1248006 |
KE70,TE71..(CP,LB)..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1234004 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71078-1248101 |
KE70,TE71..(CP,LB)..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1234006 |
TE7#..GT,SE,SR,XE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71078-1248004 |
KE70,TE71..(CP,LB)..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1248104 |
KE70,TE71..(CP,LB)..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1248106 |
KE70,TE71..(CP,LB)..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1234001 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71078-1234101 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1248204 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1234106 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1248201 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1248206 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12020 |
KE70,TE7#..CP,LB |
1 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-12010 |
KE70,TE7#..CP,LB |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A37001 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A37006 |
KE70,TE71..CP..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A37004 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A50001 |
TE71..CP..5F FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71460-1A20006 |
TE7#..GT,SE,XE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71460-1A50004 |
TE71..CP..5F FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71460-1A50006 |
TE71..CP..5F FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71460-1A37106 |
KE70,TE71..CP..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A37104 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A37101 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12320 |
KE70,TE71..CP |
1 | ||
| 71480P - PANEL SUB-ASSY, REAR SEAT BACK | ||||
| 71202-12040 |
KE70,TE7#..CP,LB RH,W/SEPARATE SEAT |
1 | ||
| 71203-12020 |
KE70,TE7#..CP,LB LH,W/SEPARATE SEAT |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1A79001 |
KE70,TE71..(CP,LB)..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1A72001 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71480-1A79006 |
KE70,TE71..(CP,LB)..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1A72004 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71480-1A72006 |
TE7#..GT,SE,SR,XE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71480-1A79106 |
KE70,TE71..(CP,LB)..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1A79101 |
KE70,TE71..(CP,LB)..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1A79104 |
KE70,TE71..(CP,LB)..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1A72106 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1A79201 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1A72101 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1A79204 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1A79206 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1A79004 |
KE70,TE71..(CP,LB)..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480T - PAD, REAR SEAT BACK, RH (FOR SEPARATE SEAT) | ||||
| 71651-12310 |
KE70,TE7#..CP,LB |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1238001 |
KE70,TE71..(CP,LB)..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1238004 |
KE70,TE71..(CP,LB)..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1235001 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71490-1238006 |
KE70,TE71..(CP,LB)..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1235004 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71490-1238106 |
KE70,TE71..(CP,LB)..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1238101 |
KE70,TE71..(CP,LB)..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1235006 |
TE7#..GT,SE,SR,XE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71490-1238104 |
KE70,TE71..(CP,LB)..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1238206 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1235101 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1238204 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1235106 |
TE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN) FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1238201 |
KE70,TE71..(CP,LB)..(GEN,SAA) PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71490T - PAD, REAR SEAT BACK, LH (FOR SEPARATE SEAT) | ||||
| 71652-12180 |
KE70,TE7#..CP,LB |
1 | ||
| 71808A - SPRING, REAR SEAT BACK STOPPER | ||||
| 90506-08003 |
KE70,TE7#..CP,LB |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE71,CE70,KE70,TE7# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12030 |
KE70,TE7#..CP,LB RH,SEPARATE SEAT |
1 | ||
| 72602-12010 |
KE70,TE7#..CP,LB LH,SEPARATE SEAT |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-12040 |
KE70,TE7#..CP,LB SEPARATE SEAT |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-12040 |
KE70,TE7#..CP,LB SEPARATE SEAT |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
2 | ||
| 72655-2002016 |
KE70,TE7#..CP,LB D-BROWN,BROWN,TRIM4# |
2 | ||
| 72655-2002001 |
KE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001001 |
KE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA) BLACK,BLACK,TRIM0#,2# |
2 | ||
| 72656-2001004 |
TE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA) BLUE,BLUE,TRIM8# |
2 | ||
| 72656-2001016 |
KE70,TE7#..CP,LB D-BROWN,BROWN,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12010 |
KE70,TE7#..(CP,LB,SED)..(EUR,GEN,SAA) |
2 | ||
| 72693-22010 |
KE70,TE7#..CP,LB,SED |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12010 |
KE70,TE7#..(CP,LB,SED)..(EUR,GEN,SAA) |
2 | ||
| 72693-22010 |
KE70,TE7#..CP,LB,SED |
2 | ||
| Common parts | ||||
| 90159-60095 | ||||
| 90386-12010 | ||||
| 90389-08003 | ||||
| 90463-08221 | ||||
| 91651-40616 | ||||
| 91661-40618 | ||||
(7908- )KE70..WG..EUR ; (7908- )KE70..DV,WG..GEN,SAA ; (7908- )AE71,CE70,T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1A49001 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A49006 |
KE70,TE71..CP..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A49004 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1A67001 |
TE71..CP..5F FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71075-1A67006 |
TE71..CP..5F FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71075-1A67004 |
TE71..CP..5F FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71075-1A49101 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1A49106 |
KE70,TE71..CP..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1A49104 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1A37001 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1A37006 |
KE70,TE71..CP..GEN PF,BEIGE & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A37004 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A50001 |
TE71..CP..5F FB,BLACK & GRAY,BLACK,TRIM2# |
1 | ||
| 71460-1A20006 |
TE7#..GT,SE,XE FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71460-1A50004 |
TE71..CP..5F FB,BLUE & IVORY,BLUE,TRIM8# |
1 | ||
| 71460-1A50006 |
TE71..CP..5F FB,D-BROWN & BEIGE,BROWN,TRIM4# |
1 | ||
| 71460-1A37106 |
KE70,TE71..CP..GEN PF,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1A37104 |
KE70,TE71..CP..GEN PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1A37101 |
KE70,TE71..CP..GEN PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1 | ||||
| 71611-12320 |
KE70,TE71..CP |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE71,CE70,KE70,TE7# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-12030 |
KE70,TE7#..CP,LB RH,SEPARATE SEAT |
1 | ||
| 72602-12010 |
KE70,TE7#..CP,LB LH,SEPARATE SEAT |
1 | ||
| Common parts | ||||
| 91651-60614 | ||||
| 91651-60618 | ||||
| 93240-46016 | ||||
| 93240-46025 | ||||
| 93249-45012 | ||||
| 93385-15012 | ||||
| 94120-40600 | ||||
| 94614-10500 | ||||
(7908- )

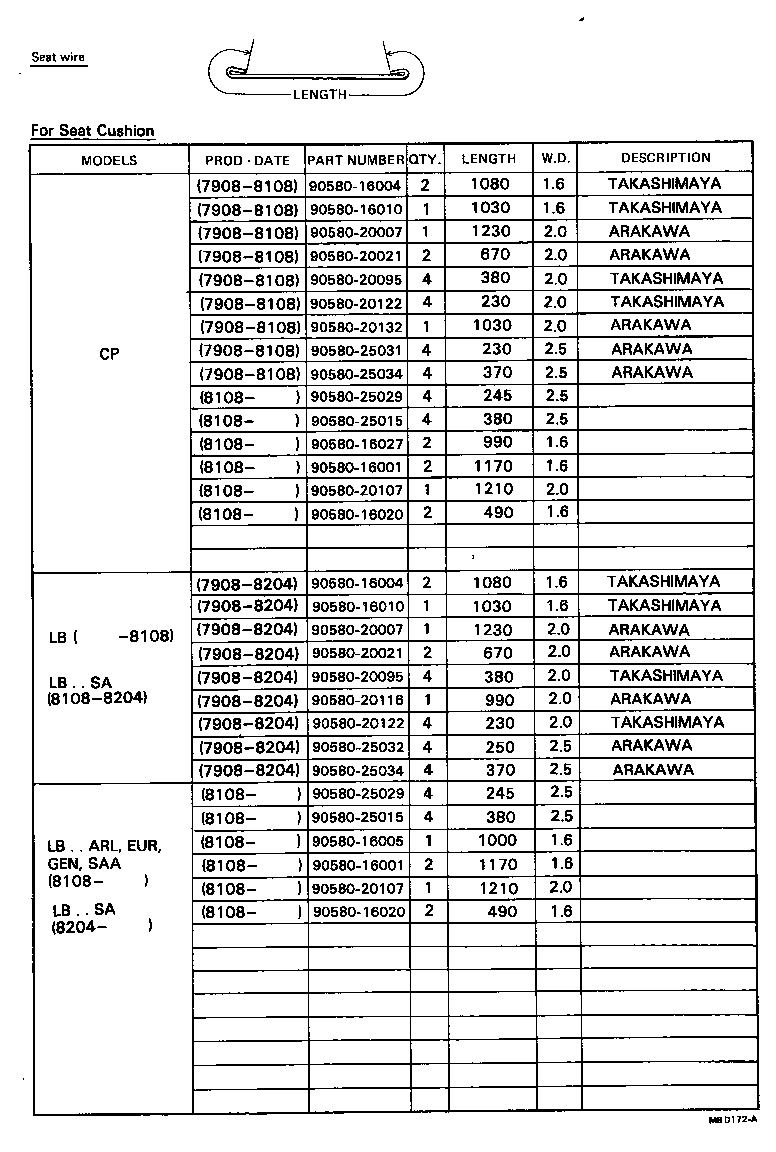

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16003 | ||||
| 90580-16010 | ||||
| 90580-16015 | ||||
| 90580-16019 | ||||
| 90580-16020 | ||||
| 90580-16021 | ||||
| 90580-16023 | ||||
| 90580-16030 | ||||
| 90580-16056 | ||||
| 90580-16057 | ||||
| 90580-20011 | ||||
| 90580-20016 | ||||
| 90580-20041 | ||||
| 90580-20095 | ||||
| 90580-20099 | ||||
| 90580-20108 | ||||
| 90580-25015 | ||||
| 90580-25034 | ||||
| 90580-26008 | ||||
| 90580-32011 | ||||
(7908-8406)CP,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16001 | ||||
| 90580-16004 | ||||
| 90580-16005 | ||||
| 90580-16010 | ||||
| 90580-16020 | ||||
| 90580-16027 | ||||
| 90580-20007 | ||||
| 90580-20021 | ||||
| 90580-20095 | ||||
| 90580-20107 | ||||
| 90580-20116 | ||||
| 90580-20122 | ||||
| 90580-20132 | ||||
| 90580-25015 | ||||
| 90580-25029 | ||||
| 90580-25031 | ||||
| 90580-25032 | ||||
| 90580-25034 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
