NRE180R-DEFDKW (2016)
Toyota Corolla

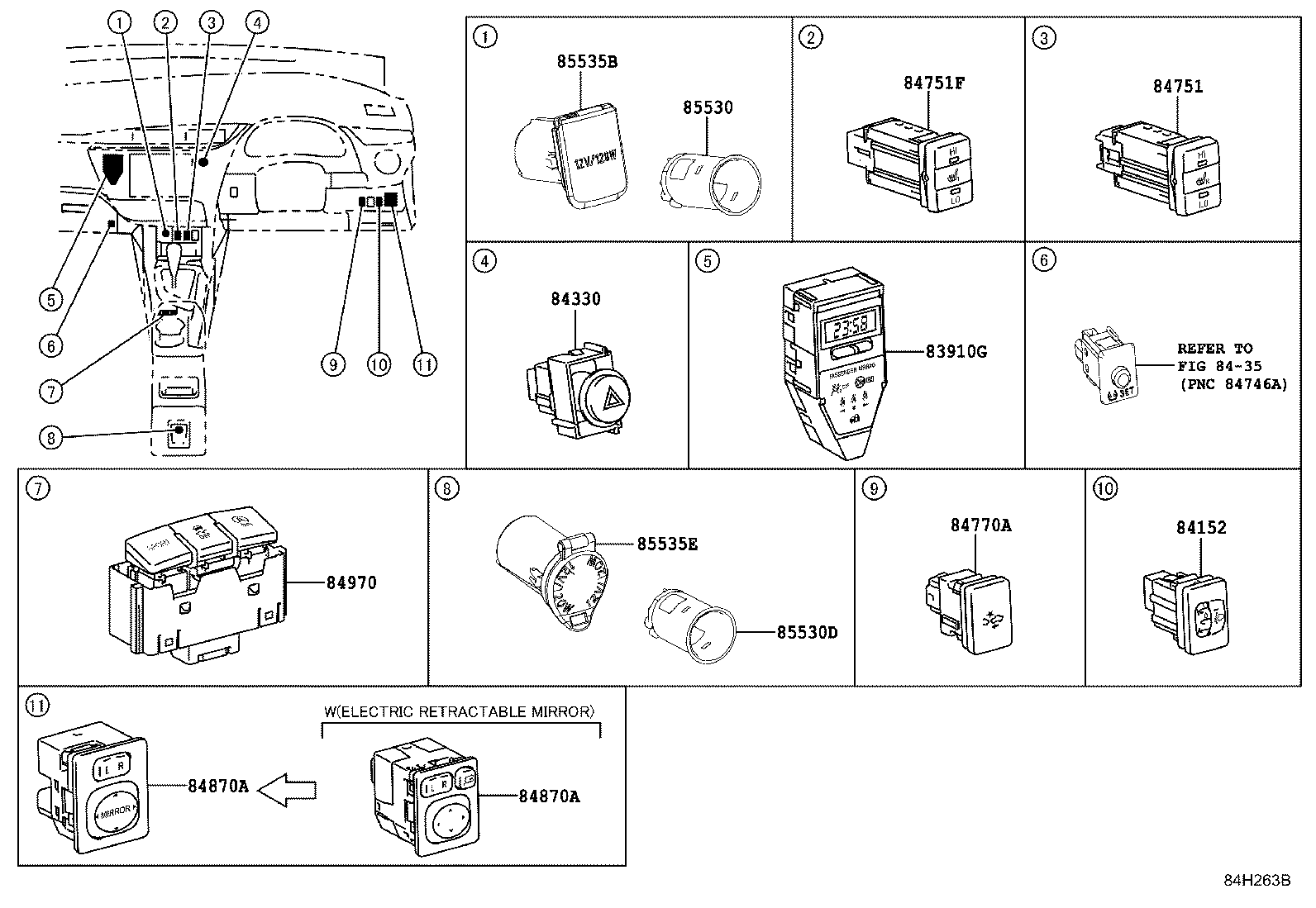

ILLUST NO. 5 OF 7(1606- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-12630 |
NDE180,NRE180,ZRE18# |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02080 |
NDE180,NRE180,ZRE18# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02220 |
NDE180,NRE180,ZRE181..RHD |
1 | ||
| 84332-02300 |
NRE180 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12102 |
NRE180..RHD PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-12112 |
NRE180..RHD PRE-COLLISION SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER) |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-02010 |
NRE180..RHD;NRE180..N..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02090C0 |
NDE180,NRE180,ZRE18# BLACK |
1 | ||
| 84870-02101 |
NRE180..N;NRE180..RHD OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER) |
1 | ||
| 84870-02110C0 |
NDE180,NRE180,ZRE18#..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & WITH(HEATER),BLACK |
1 | ||
| 84870-02090C0 |
NRE180 BLACK |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02090C0 |
NDE180,NRE180,ZRE18# BLACK |
1 | ||
| 84870-02101 |
NRE180..N;NRE180..RHD OUTSIDE REAR VIEW MIRROR-AUTO RETRACTABLE & WITH(HEATER) |
1 | ||
| 84870-02110C0 |
NDE180,NRE180,ZRE18#..N OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & WITH(HEATER),BLACK |
1 | ||
| 84870-02090C0 |
NRE180 BLACK |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02130 |
NRE180 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
NDE180,NRE180,ZRE18# ASH TRAY-WITH |
1 | ||
| 85530-42010 |
NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER ONLY |
1 | ||
| 85530-42010 |
NDE180,NRE180,ZRE18# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
NDE180,NRE180,ZRE18#..N POWER OUTLETS-CIGARETTE LIGHTER ONLY |
1 | ||
| 85530-42010 |
NDE180,NRE180,ZRE18#..N ASH TRAY-WITH |
1 | ||
| 85530-42010 |
NDE180,NRE180,ZRE18#..D POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
1 | ||
| 85530-42010 |
NRE180..N |
1 | ||
| 85530-42010 |
NDE180,NRE180,ZRE18#..N |
1 | ||
| 85530-42010 |
NRE180..D POWER OUTLETS-SOCKET(FRONT & REAR) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12090C0 |
NDE180,NRE180,ZRE18# ASH TRAY-WITH,BLACK,TRIM0#,2# |
1 | ||
| 85535-12090C0 |
NDE180,NRE180,ZRE18# BLACK,TRIM0#,2# |
1 | ||
| 85535-12090C0 |
NDE180,NRE180,ZRE18# POWER OUTLETS-CIGARETTE LIGHTER ONLY,BLACK,TRIM0#,2# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
NDE180,NRE180,ZRE18#..N POWER OUTLETS-CIGARETTE LIGHTER ONLY |
1 | ||
| 85535-30020 |
NDE180,NRE180,ZRE18#..D POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
1 | ||
| 85535-30020 |
NRE180..N |
1 | ||
| 85535-30020 |
NDE180,NRE180,ZRE18#..N |
1 | ||
| 85535-30020 |
NRE180..D POWER OUTLETS-SOCKET(FRONT & REAR) |
1 | ||
| 85535-30020 |
NDE180,NRE180,ZRE18#..N ASH TRAY-WITH |
1 | ||
| Linked diagrams | ||||
| 8435 | ||||
