NRE180L-DEFNKW (2013)
Toyota Corolla
Production
Jun 2013
-
May 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1306- )1NRFE

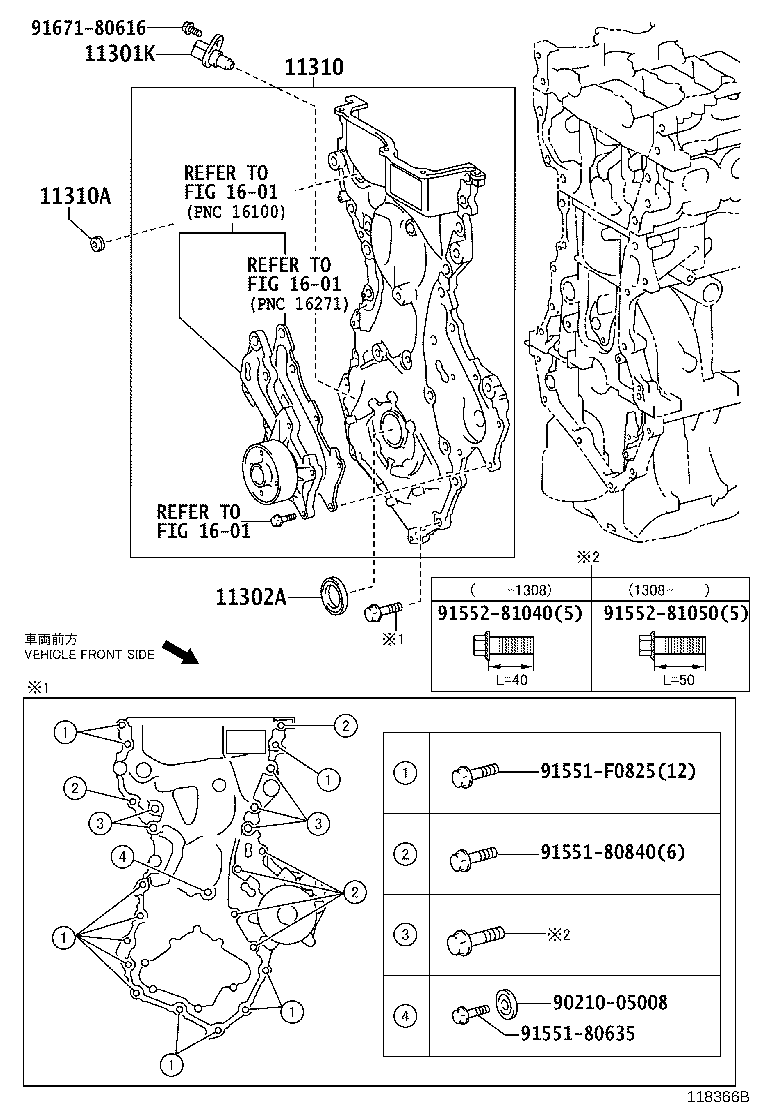

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05073 |
1NRFE..NRE180 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-25032 |
1NRFE..NRE180 |
1 | ||
| 11310 - COVER ASSY, TIMING CHAIN | ||||
| 11310-47041 |
1NRFE..NRE180 |
1 | ||
| 11310-47040 |
1NRFE..NRE180 |
1 | ||
| 11310-47042 |
1NRFE..NRE180 |
1 | ||
| 11310A - PLUG, TAPER SCREW(FOR TIMING CHAIN COVER) | ||||
| 90344-53006 |
NRE180 |
1 | ||
| Common parts | ||||
| 90210-05008 | ||||
| 91551-80635 | ||||
| 91551-80840 | ||||
| 91551-F0825 | ||||
| 91552-81040 | ||||
| 91552-81050 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1601 | ||||
