NRE180L-DEFNKW (2013)
Toyota Corolla
Production
Jun 2013
-
May 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1306- )1NRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-0Q010 |
1NRFE..NRE180 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-49045 |
1NRFE..NRE180 |
1 | ||
| 11410-49017 |
1NRFE..NRE180 |
1 | ||
| 11410-49018 |
1NRFE..NRE180 |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-78005 |
1NRFE..NRE180 |
1 | ||
| 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE | ||||
| 11409-47012 |
1NRFE..NRE180 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02175 |
1NRFE..NRE180 |
10 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 |
1NRFE..NRE180 L=12,OD=4.0 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
1NRFE..NRE180 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
1NRFE..NRE180 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-08074 |
1NRFE..NRE180 |
2 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-47010 |
1NRFE..NRE180 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96741-19010 |
1NRFE..NRE180 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-47131 |
1NRFE..NRE180 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1NRFE..NRE180 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1N#..NDE180,NRE180 |
1 | ||
| 12101C - RING, O(FOR OIL PAN) | ||||
| 90301-19023 |
1NRFE..NRE180 |
1 | ||
| 12101L - GASKET NO.1(FOR OIL PAN) | ||||
| 90430-12039 |
1NRFE..NRE180 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-B1060 |
1NRFE..NRE180 |
1 | ||
| 13516B - JET, OIL | ||||
| 13516-40010 |
1NRFE..NRE180 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-47050 |
1NRFE..NRE180 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-47030 |
1NRFE..NRE180 |
4 | ||
| 15708-47031 |
1NRFE..NRE180 |
4 | ||
| 15708-47080 |
1NRFE..NRE180 |
4 | ||
| Common parts | ||||
| 90105-W0142 | ||||
| 90110-06040 | ||||
| 90119-06848 | ||||
| 91552-81035 | ||||
| 91671-80614 | ||||

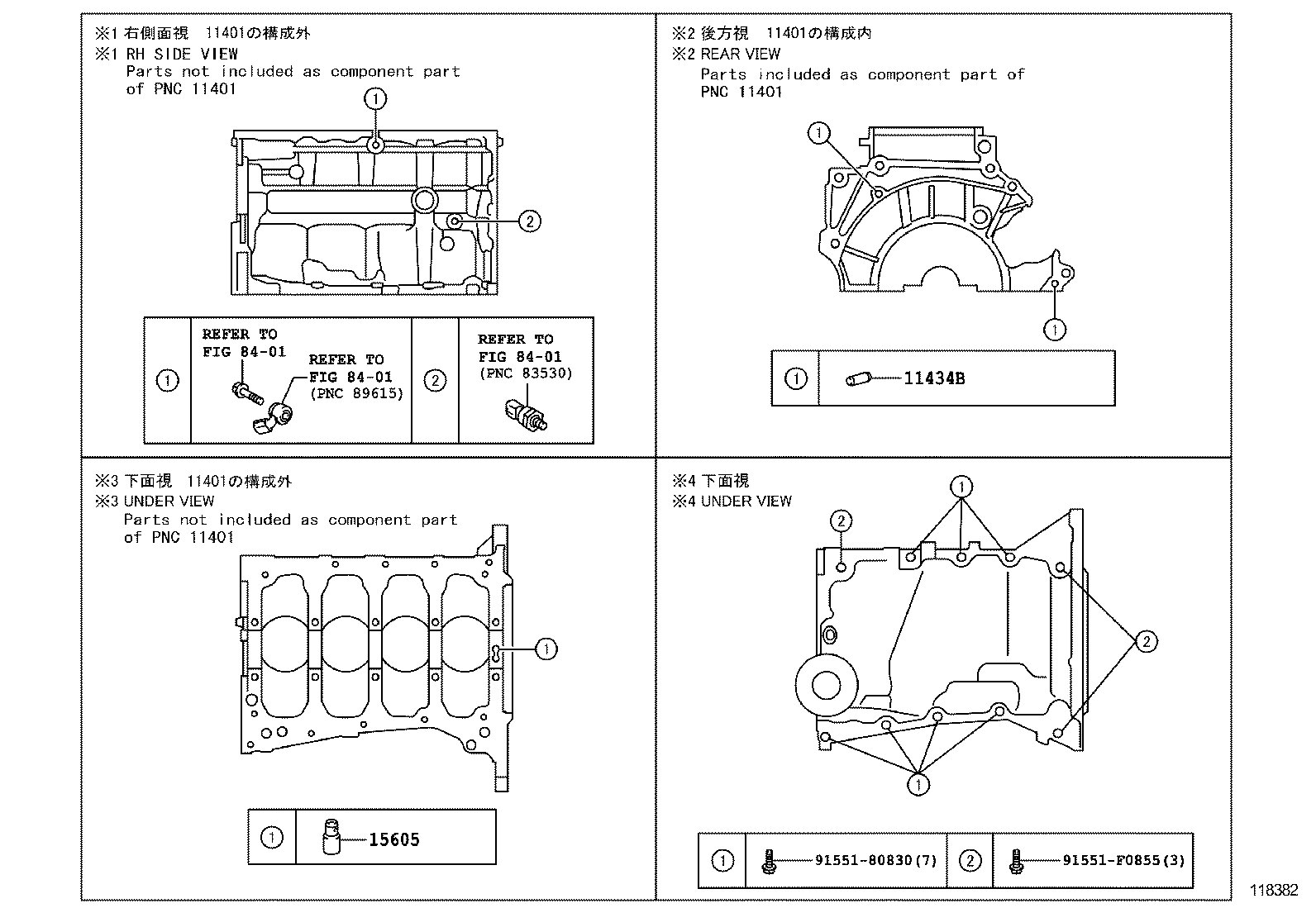

ILLUST NO. 2 OF 2(1306- )1NRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1NRFE..NRE180 L=22,OD=10 |
2 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-47010 |
1NRFE..NRE180 |
1 | ||
| Common parts | ||||
| 91551-80830 | ||||
| 91551-F0855 | ||||
| Linked diagrams | ||||
| 8401 | ||||
