NRE180L-DEFDKX (2016)

Toyota Corolla

Production Jun 2016 - Aug 2018
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )

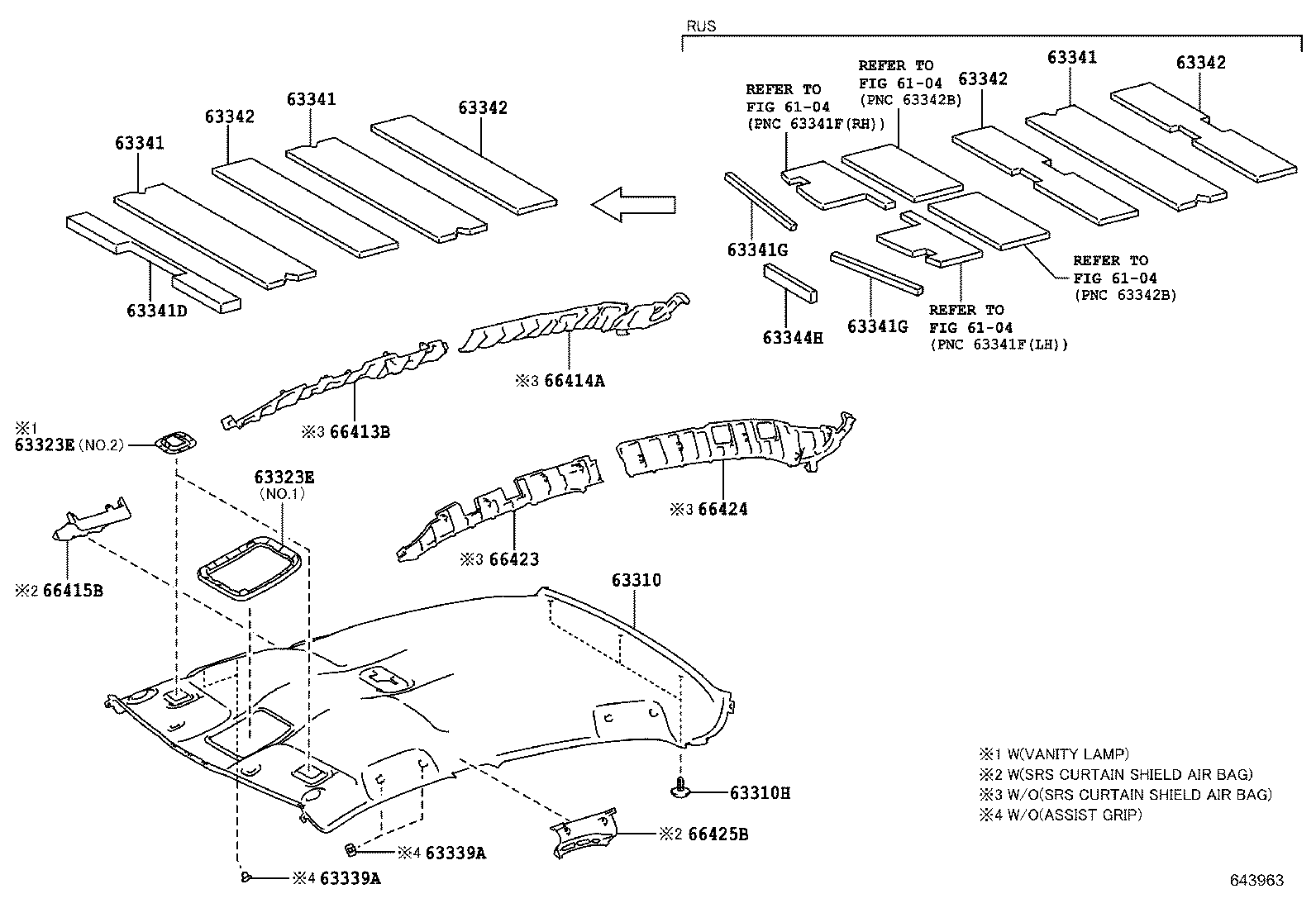

Click highlighted areas on diagram

diagram 6104 6104 6104 6104 63310 63310H 63323E 63323E 63339A 63339A 63341 63341 63341 63341D 63341G 63341G 63342 63342 63342 63342 63344H 66413B 66414A 66415B 66423 66424 66425B
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-02E20A1

ZRE181..6F..D..HTWVM;NDE180,NRE180..LHD..D

LIGHT GRADE,IVORY,TRIM0#

 1
63310-02E20B2

ZRE181..6F..D..HTWVM;NDE180,NRE180..LHD..D

LIGHT GRADE,GRAY,TRIM2#

 1
63310-02E10A1

NDE180,NRE180,ZRE18#..LHD..D

IVORY,TRIM0#

 1
63310-02E10B2

NDE180,NRE180,ZRE18#..LHD..D

GRAY,TRIM2#

 1
63310-02E10A1

ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N

IVORY,TRIM0#

 1
63310-02E10B2

ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N

GRAY,TRIM2#

 1
63310-02E20B2

NDE180,NRE180,ZRE18#..N

LIGHT GRADE&STEERING SWITCH-WITHOUT,GRAY,TRIM2#

 1
63310-02E20A1

NDE180,NRE180,ZRE18#..N

LIGHT GRADE&STEERING SWITCH-WITHOUT,IVORY,TRIM0#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-W0006A0

NDE180,NRE180,ZRE18#

IVORY,TRIM0#

 3
90467-W0006B0

NDE180,NRE180,ZRE18#

LT.GRAY,TRIM2#

 3
90467-W0006A1

NRE180

FLAXEN,TRIM0#

 3
90467-W0006B0

NRE180

LT.GRAY,TRIM2#

 3
63323E - CASE, HEADLINING LAMP
63323-02020

ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N

NO.2:REFER ILLUST.

 2
63323-02010

NDE180,NRE180,ZRE18#

NO.1:REFER ILLUST.

 1
63323-02020

NRE180..N;NRE180..RHD

NO.2:REFER ILLUST.

 2
63323-02010

NRE180

NO.1:REFER ILLUST.

 1
63323-02020

NDE180,NRE180,ZRE18#..LHD..D

NO.2:REFER ILLUST.

 2
63323E - CASE, HEADLINING LAMP
63323-02020

ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N

NO.2:REFER ILLUST.

 2
63323-02010

NDE180,NRE180,ZRE18#

NO.1:REFER ILLUST.

 1
63323-02020

NRE180..N;NRE180..RHD

NO.2:REFER ILLUST.

 2
63323-02010

NRE180

NO.1:REFER ILLUST.

 1
63323-02020

NDE180,NRE180,ZRE18#..LHD..D

NO.2:REFER ILLUST.

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-12010A1

NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC

SRS AIR BAG-WITH(*DRS & *PAS & SIDE),IVORY,TRIM0#

 2
63339-12010B0

NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC

SRS AIR BAG-WITH(*DRS & *PAS),LT.GRAY,TRIM2#

 2
63339-12010A2

NRE180..RUS

FLAXEN,TRIM0#

 2
63339-12010B0

NRE180..RUS

LT.GRAY,TRIM2#

 2
63339-12010B0

NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC

SRS AIR BAG-WITH(*DRS & *PAS & SIDE),LT.GRAY,TRIM2#

 2
63339-12010A1

NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC

SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-12010A1

NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC

SRS AIR BAG-WITH(*DRS & *PAS & SIDE),IVORY,TRIM0#

 2
63339-12010B0

NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC

SRS AIR BAG-WITH(*DRS & *PAS),LT.GRAY,TRIM2#

 2
63339-12010A2

NRE180..RUS

FLAXEN,TRIM0#

 2
63339-12010B0

NRE180..RUS

LT.GRAY,TRIM2#

 2
63339-12010B0

NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC

SRS AIR BAG-WITH(*DRS & *PAS & SIDE),LT.GRAY,TRIM2#

 2
63339-12010A1

NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC

SRS AIR BAG-WITH(*DRS & *PAS),IVORY,TRIM0#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-02320

NDE180,NRE180,ZRE18#

 2
63341-02320

NRE180..RUS

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-02320

NDE180,NRE180,ZRE18#

 2
63341-02320

NRE180..RUS

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-02320

NDE180,NRE180,ZRE18#

 2
63341-02320

NRE180..RUS

 1
63341D - PAD, ROOF SILENCER, FRONT
63341-02500

NDE180,NRE180,ZRE18#

 1
63341G - PAD, ROOF SILENCER
63341-02360

NRE180..LHD

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 2
63341-02360

NRE180..LHD

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS)

 2
63341-02360

NRE180..RUS

 2
63341G - PAD, ROOF SILENCER
63341-02360

NRE180..LHD

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 2
63341-02360

NRE180..LHD

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS)

 2
63341-02360

NRE180..RUS

 2
63342 - PAD, ROOF SILENCER, NO.2
63341-02330

NDE180,NRE180,ZRE18#

 2
63342-02690

NRE180

 2
63342 - PAD, ROOF SILENCER, NO.2
63341-02330

NDE180,NRE180,ZRE18#

 2
63342-02690

NRE180

 2
63342 - PAD, ROOF SILENCER, NO.2
63341-02330

NDE180,NRE180,ZRE18#

 2
63342-02690

NRE180

 2
63342 - PAD, ROOF SILENCER, NO.2
63341-02330

NDE180,NRE180,ZRE18#

 2
63342-02690

NRE180

 2
63344H - PAD, ROOF SILENCER, NO.4
63344-02170

NRE180..LHD

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS)

 1
63344-02170

NRE180..LHD

RUSSIA SPEC&WITH(ON BOARD DIAGNOSIS)&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 1
63344-02170

NRE180..RUS

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-02120

NRE180..RUS

 1
66413-02120

NRE180..LHD

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

 1
66413-02120

NRE180..LHD

SRS AIR BAG-WITH(*DRS & *PAS)

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-02170

NRE180..LHD

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

 1
66414-02170

NRE180..LHD

SRS AIR BAG-WITH(*DRS & *PAS)

 1
66414-02310

NRE180..RUS

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-02130

NDE180,NRE180,ZRE18#

 1
66415-02130

NRE180..RUS

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-02120

NRE180..LHD

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

 1
66423-02120

NRE180..LHD

SRS AIR BAG-WITH(*DRS & *PAS)

 1
66423-02120

NRE180..RUS

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-02170

NRE180..LHD

SRS AIR BAG-WITH(*DRS & *PAS)

 1
66424-02170

NRE180..LHD

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

 1
66424-02280

NRE180..RUS

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-02140

NDE180,NRE180,ZRE18#

 1
66425-02140

NRE180..RUS

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 1
