NRE180L-DEFDKW (2016)
Toyota Corolla

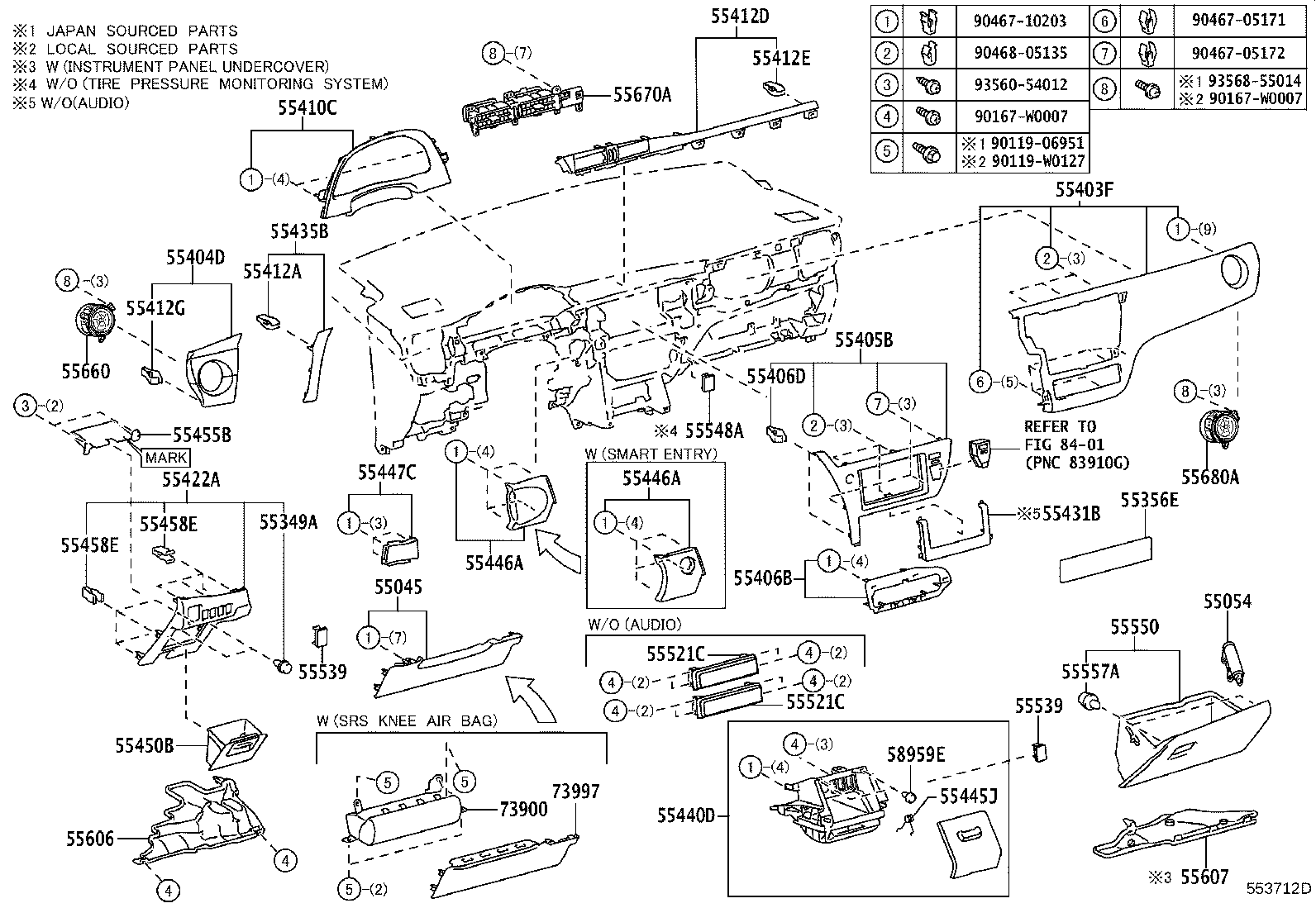

ILLUST NO. 2 OF 2(1606- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02320C0 |
NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM0#,2# |
1 | ||
| 55045-02320C1 |
NRE180..LHD..D..EUR SRS AIR BAG-WITH(*DRS & *PAS & SIDE),EU BLACK,TRIM0#,2# |
1 | ||
| 55045-02320C1 |
NRE180..LHD..D..EUR SRS AIR BAG-WITH(*DRS & *PAS),EU BLACK,TRIM0#,2# |
1 | ||
| 55045-02320C1 |
NRE180..LHD..D..EUR SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),EU BLACK,TRIM0#,2# |
1 | ||
| 55045-02320C0 |
NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 55045-02320C0 |
NDE180..LHD..6F;NRE180,ZRE18#..LHD..HTWC SRS AIR BAG-WITH(*DRS & *PAS),BLACK,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
NDE180,NRE180,ZRE18# |
1 | ||
| 55054-47010 |
NRE180 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 58959-60060 |
NDE180,NRE180,ZRE18# |
2 | ||
| 58959-60060 |
NRE180 |
2 | ||
| 55356E - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02450 |
NRE180 |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02290C0 |
NRE180..N AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL),EU BLACK/BLACK,TRIM2# |
1 | ||
| 55403-02290A0 |
NRE180..N AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL),FLAXEN/EU BLACK,TRIM0# |
1 | ||
| 55403-02300A0 |
NRE180..LHD FLAXEN/EU BLACK,TRIM0# |
1 | ||
| 55403-02300C0 |
NRE180..LHD EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-02520C0 |
NRE180..LHD EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55404-02520A0 |
NRE180..LHD FLAXEN/EU BLACK,TRIM0# |
1 | ||
| 55404-02360A0 |
NDE180,NRE180,ZRE18#..LHD IVORY,TRIM0# |
1 | ||
| 55404-02360C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02531C2 |
NDE180,NRE180,ZRE18#..LHD AUDIO-RADIOLESS & SPEAKERLESS,BLACK METALLC,TRIM0#,2# |
1 | ||
| 55405-02531C2 |
NDE180,NRE180,ZRE18#..N AUDIO-RADIOLESS 6SPEAKER,BLACK METALLC,TRIM0#,2# |
1 | ||
| 55406-02640 |
NRE180..LHD |
1 | ||
| 55405-02531C2 |
NDE180,NRE180,ZRE18#..LHD..D AUDIO-RADIOLESS 4SPEAKER,BLACK METALLC,TRIM0#,2# |
1 | ||
| 55405-02540C2 |
NDE180,NRE180,ZRE18#..LHD BLACK METALLC,TRIM0#,2# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02480C0 |
NDE180,NRE180,ZRE18#..N AIR CONDITIONER-AUTO AIR CONDITIONER,BLACK,TRIM0#,2# |
1 | ||
| 55406-02480C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
1 | ||
| 55406-02480C0 |
NDE180,NRE180,ZRE18#..N AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL),BLACK,TRIM0#,2# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
NRE180 MELLOW WHITE |
2 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02260C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
1 | ||
| 55410-02160 |
NRE180..LHD |
1 | ||
| 55412A - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-13082A0 |
NRE180 MELLOW WHITE |
3 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-02470 |
NRE180..LHD |
1 | ||
| 55412E - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-13082A0 |
NRE180 MELLOW WHITE |
7 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
NRE180 MELLOW WHITE |
4 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02290C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
1 | ||
| 55422-02290C2 |
NRE180..LHD BLACK,TRIM0#,2# |
1 | ||
| 55422-02290C1 |
NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-02070 |
NRE180..EUR AUDIO(OVERSEAS MARKET)-RADIOLESS & SPEAKERLESS |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-02450 |
NRE180..LHD |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02710C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
1 | ||
| 55440-02440C0 |
NRE180..LHD EU BLACK,TRIM0#,2# |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02330 |
NRE180..LHD |
1 | ||
| 55445-02200 |
NDE180,NRE180,ZRE18#..LHD |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02370C0 |
NDE180,NRE180,ZRE18#..N WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM0#,2# |
1 | ||
| 55446-02380C1 |
NDE180,NRE180,ZRE18#..LHD..(D,N) EU BLACK,TRIM0#,2# |
1 | ||
| 55446-02380C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
1 | ||
| 55446-02370C2 |
NRE180..N WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM0#,2# |
1 | ||
| 55446-02370C1 |
NDE180,NRE180,ZRE18#..N WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM0#,2# |
1 | ||
| 55446-02380C2 |
NRE180..LHD BLACK,TRIM0#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02370C0 |
NDE180,NRE180,ZRE18#..N WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM0#,2# |
1 | ||
| 55446-02380C1 |
NDE180,NRE180,ZRE18#..LHD..(D,N) EU BLACK,TRIM0#,2# |
1 | ||
| 55446-02380C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
1 | ||
| 55446-02370C2 |
NRE180..N WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM0#,2# |
1 | ||
| 55446-02370C1 |
NDE180,NRE180,ZRE18#..N WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM0#,2# |
1 | ||
| 55446-02380C2 |
NRE180..LHD BLACK,TRIM0#,2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02210C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
1 | ||
| 55447-02210C1 |
NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
1 | ||
| 55447-02210C2 |
NRE180..LHD BLACK,TRIM0#,2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02130C0 |
NDE180,NRE180,ZRE18# BLACK,TRIM0#,2# |
1 | ||
| 55450-02131C1 |
NDE180,NRE180,ZRE18# EU BLACK,TRIM0#,2# |
1 | ||
| 55450-02131C2 |
NRE180 BLACK,TRIM0#,2# |
1 | ||
| 55455B - COIN BOX | ||||
| 55455-02161 |
NRE180 MARK=55455-02161 |
1 | ||
| 55455-02160 |
NDE180,NRE180,ZRE18# |
1 | ||
| 55455-02160 |
NDE180,NRE180,ZRE18# MARK=55455-02160 |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..LHD |
8 | ||
| 90467-10203 |
NRE180..LHD |
8 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..LHD |
8 | ||
| 90467-10203 |
NRE180..LHD |
8 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,NRE180,ZRE18#..LHD..D AUDIO-RADIOLESS 4SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE180,ZRE18# AUDIO-RADIOLESS & SPEAKERLESS |
2 | ||
| 55521-05030 |
NRE180..EUR AUDIO(OVERSEAS MARKET)-RADIOLESS & SPEAKERLESS |
2 | ||
| 55521-05030 |
ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N AUDIO-RADIOLESS 6SPEAKER |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,NRE180,ZRE18#..LHD..D AUDIO-RADIOLESS 4SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE180,ZRE18# AUDIO-RADIOLESS & SPEAKERLESS |
2 | ||
| 55521-05030 |
NRE180..EUR AUDIO(OVERSEAS MARKET)-RADIOLESS & SPEAKERLESS |
2 | ||
| 55521-05030 |
ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N AUDIO-RADIOLESS 6SPEAKER |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C0 |
NDE180,NRE180,ZRE18#..N CLEARANCE & BACK SONAR-WITH & WITH(*IPA),BLACK,TRIM0#,2# |
1 | ||
| 55539-02100C0 |
NDE180,NRE180,ZRE18#..N CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA),BLACK,TRIM0#,2# |
1 | ||
| 55539-02100C0 |
NDE180,ZRE182..N;NRE180,ZRE181..LHD SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM0#,2# |
1 | ||
| 55539-02100C0 |
NDE180,NRE180,ZRE18# BLACK,TRIM0#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C0 |
NDE180,NRE180,ZRE18#..N CLEARANCE & BACK SONAR-WITH & WITH(*IPA),BLACK,TRIM0#,2# |
1 | ||
| 55539-02100C0 |
NDE180,NRE180,ZRE18#..N CLEARANCE & BACK SONAR-WITH & WITHOUT(*IPA),BLACK,TRIM0#,2# |
1 | ||
| 55539-02100C0 |
NDE180,ZRE182..N;NRE180,ZRE181..LHD SEAT HEATER-WITH(*DRP(SEAT CUSHION & BACK)),BLACK,TRIM0#,2# |
1 | ||
| 55539-02100C0 |
NDE180,NRE180,ZRE18# BLACK,TRIM0#,2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-02640C0 |
NRE180..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS),BLACK,TRIM0#,2# |
1 | ||
| 55548-02640C0 |
NRE180..LHD EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),BLACK,TRIM0#,2# |
1 | ||
| 55548-02640C1 |
NRE180..LHD..D..EUR UKRAINE SPEC,EU BLACK,TRIM0#,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02361C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
1 | ||
| 55550-02361C1 |
NDE180,NRE180,ZRE18#..LHD EU BLACK,TRIM0#,2# |
1 | ||
| 55550-02361C2 |
NRE180..LHD BLACK,TRIM0#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NDE180,NRE180,ZRE18# |
2 | ||
| 55557-60050 |
NRE180 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02160 |
NDE180,NRE180,ZRE18#..LHD |
1 | ||
| 55606-02160 |
NRE180..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02080 |
NRE180,ZRE18#..LHD..HTWC SUB COLD AREA SPEC |
1 | ||
| 55607-02080 |
NRE180..LHD |
1 | ||
| 55607-02080 |
NRE180,ZRE18#..LHD..HTWC COLD AREA SPEC |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-12290C0 |
NDE180,NRE180,ZRE18#..G,N;NDE180,NRE180,ZRE181..RHD BLACK,TRIM0#,2# |
1 | ||
| 55660-02210A0 |
NDE180,NRE180,ZRE18#..LHD..D IVORY,TRIM0# |
1 | ||
| 55660-02220B0 |
NDE180,NRE180,ZRE18#..N MD.SILVER,TRIM0#,2# |
1 | ||
| 55660-02210C0 |
NDE180,NRE180,ZRE18#..LHD..D BLACK,TRIM2# |
1 | ||
| 55680-12330C0 |
NDE180,NRE180,ZRE181..LHD..D BLACK,TRIM0#,2# |
1 | ||
| 55680-12330C1 |
NRE180..LHD..D BLACK,TRIM0#,2# |
1 | ||
| 55680-12290C2 |
NRE180..N;NRE180..RHD BLACK,TRIM0#,2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02390 |
NDE180,NRE180,ZRE18#..LHD..D |
1 | ||
| 55670-02690C0 |
NRE180..N EU BLACK,TRIM0#,2# |
1 | ||
| 55670-02580 |
NDE180,NRE180,ZRE181..LHD..D |
1 | ||
| 55670-02410 |
NDE180,NRE180,ZRE18#..N |
1 | ||
| 55670-02580C0 |
NRE180..LHD..D EU BLACK,TRIM0#,2# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-12280C0 |
NDE180,NRE180,ZRE18#..G,N;NDE180,NRE180,ZRE181..RHD BLACK,TRIM0#,2# |
1 | ||
| 55680-12320C0 |
NDE180,NRE180,ZRE181..LHD..D BLACK,TRIM0#,2# |
1 | ||
| 55680-12280C2 |
NRE180..N;NRE180..RHD BLACK,TRIM0#,2# |
1 | ||
| 55680-12320C1 |
NRE180..LHD..D BLACK,TRIM0#,2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
NRE180 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02140 |
NDE180,NRE180,ZRE18# |
1 | ||
| 73900-02140 |
NRE180..EUR |
1 | ||
| 73997 - DOOR, INSTRUMENT PANEL AIR BAG, LOWER NO.1 | ||||
| 73997-02050C1 |
NRE180..LHD..EUR EU BLACK,TRIM0#,2# |
1 | ||
| 73997-02050C0 |
NDE180,NRE180,ZRE18#..LHD BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
