NDE180R-DEFDXW (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )RHD

Click highlighted areas on diagram

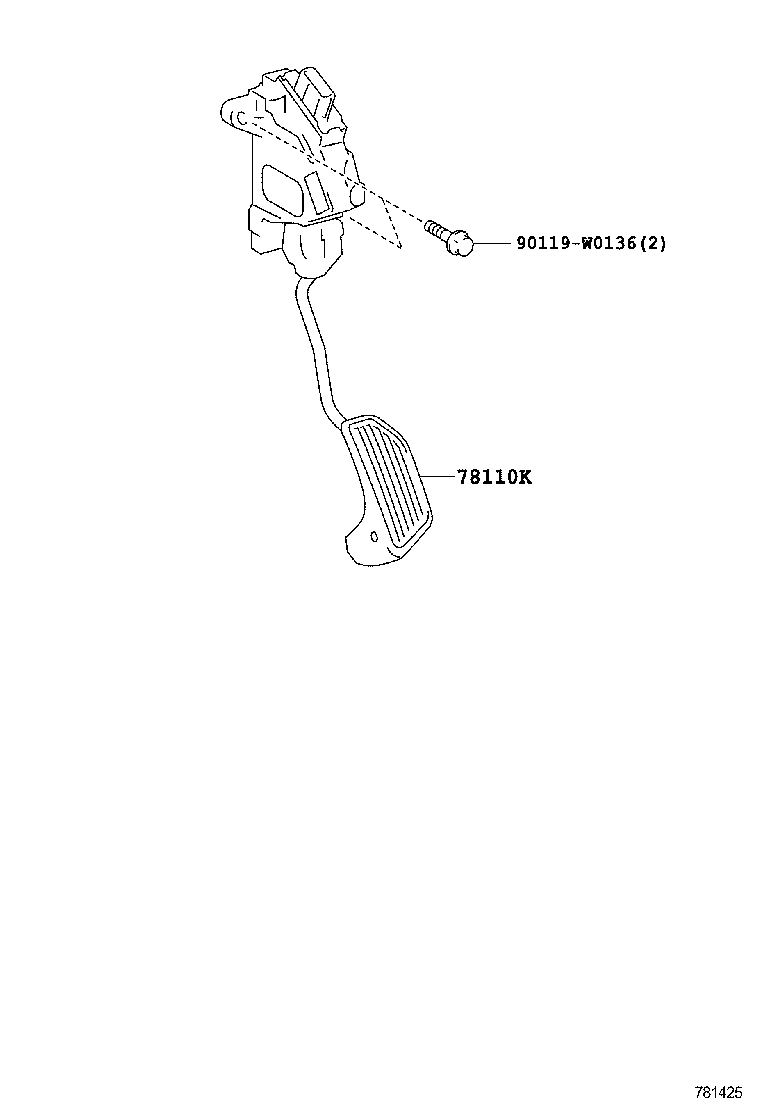

diagram 78110K 90119W0136
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-02150

NDE180..RHD

SPEED LIMITER CONTROL-WITH(VARIABLE)

 1
78110-02140

NDE180,NRE180..RHD

 1
78110-0W040

NDE180..6F..N

SPEED LIMITER CONTROL-WITH(VARIABLE)

 1
Common parts
90119-W0136
