NDE180L-DELNXW (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )

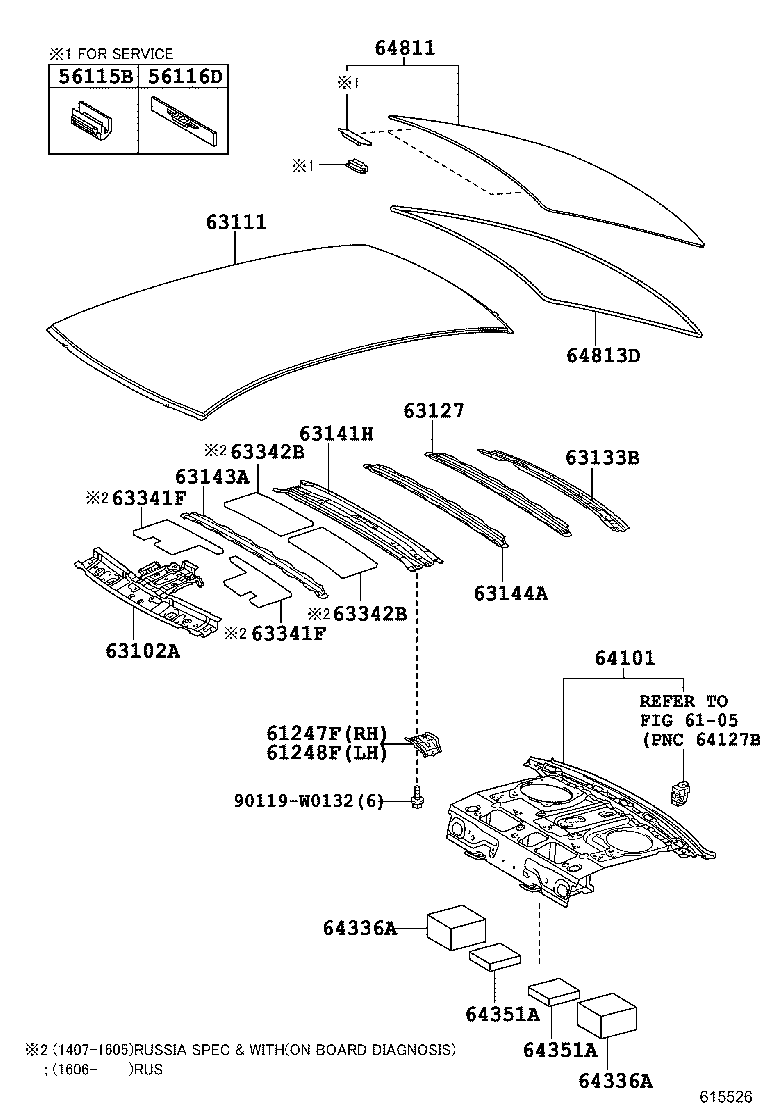

Click highlighted areas on diagram

diagram 56115B 56116D 6105 61247F 61248F 63102A 63111 63127 63133B 63141H 63143A 63144A 63341F 63341F 63342B 63342B 64101 64336A 64336A 64351A 64351A 64811 64813D 90119W0132
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

NDE180,NRE180,ZRE18#

 2
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

NDE180,NRE180,ZRE18#

 2
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-02060

NDE180,NRE180,ZRE18#

 1
61248F - REINFORCEMENT, ROOF SIDE RAIL, INNER, LH
61247-02060

NDE180,NRE180,ZRE18#

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-02300

NDE180,NRE180,ZRE18#

 1
63111 - PANEL, ROOF
63111-02450

NDE180,NRE180,ZRE18#

 1
63127 - REINFORCEMENT, ROOF PANEL, NO.5
63127-02080

NDE180,NRE180,ZRE18#

 1
63133B - FRAME, BACK WINDOW
63133-02131

NDE180,NRE180,ZRE18#

 1
63133-02130

NDE180,NRE180,ZRE18#

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-02170

NDE180,NRE180,ZRE18#

 1
63143A - REINFORCEMENT, ROOF PANEL
63143-02150

NDE180,NRE180,ZRE18#

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-02180

NDE180,NRE180,ZRE18#

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-02330

NDE180,NRE180,ZRE18#

 1
64336A - PAD, PACKAGE TRAY TRIM SILENCER, SIDE
64336-02050

NDE180,NRE180,ZRE18#

 2
64336A - PAD, PACKAGE TRAY TRIM SILENCER, SIDE
64336-02050

NDE180,NRE180,ZRE18#

 2
64351A - PAD, PACKAGE TRAY TRIM, NO.1
64351-02060

NDE180,NRE180,ZRE18#

 2
64351A - PAD, PACKAGE TRAY TRIM, NO.1
64351-02060

NDE180,NRE180,ZRE18#

 2
64811 - GLASS, BACK WINDOW
64801-02200

NDE180..6FS

COLD AREA SPEC

 1
64801-02190

NDE180,NRE180,ZRE18#

 1
64801-02200

NDE180..LHD..6F;NRE180,ZRE18#..LHD

COLD AREA SPEC

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-50130

NDE180,NRE180,ZRE18#

*P,L=3691

 1
Common parts
90119-W0132
Linked diagrams
6105
