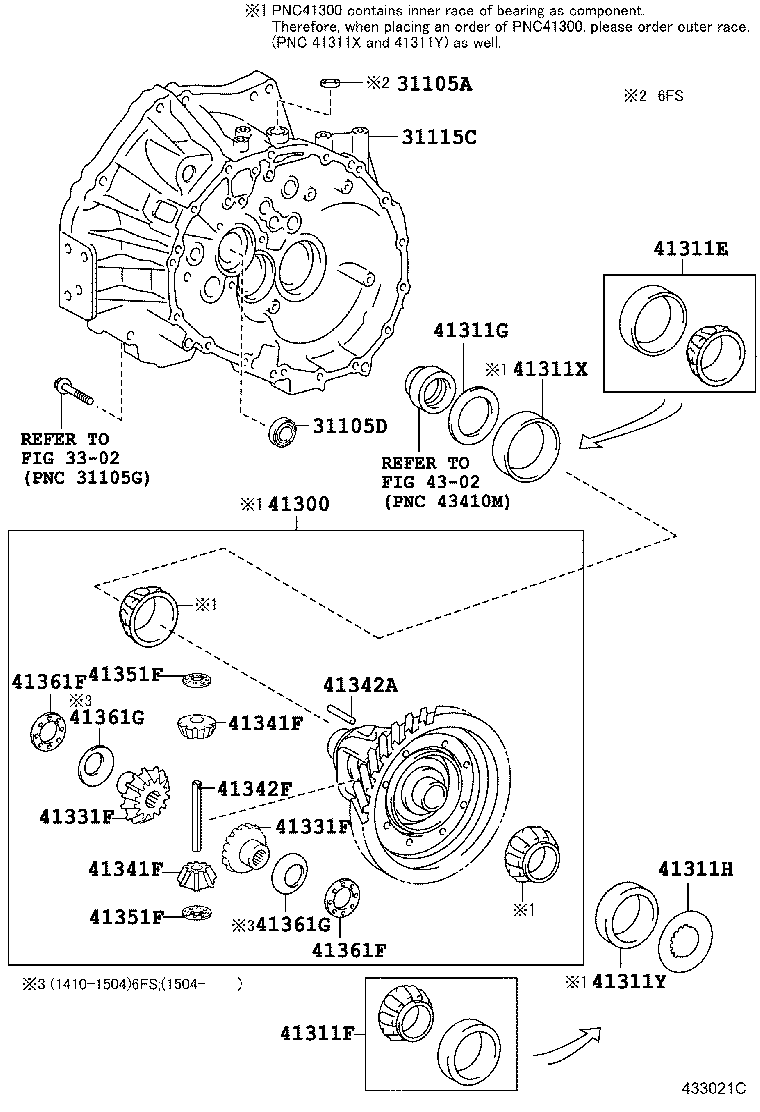

NDE180L-DELNXW (2013)
Toyota Corolla
(1306- )MTM
EC60,EC61,EC69,EC65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-25005 |
NDE180..6FS *201 |
1 | ||
| 90331-25005 |
NDE180..6FS *206 |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25030 |
NDE180..6FS *201 |
1 | ||
| 90311-25030 |
NDE180,NRE180,ZRE181..6F |
1 | ||
| 90311-25030 |
NDE180..6FS *206 |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-52140 |
NDE180..6FS *201 |
1 | ||
| 31115-52141 |
NDE180..6FS *201 |
1 | ||
| 31115-0D121 |
NDE180..6F |
1 | ||
| 31115-0D120 |
NDE180..6F |
1 | ||
| 31115-12171 |
NDE180..6FS *201 |
1 | ||
| 31115-12171 |
NDE180..6FS *206 |
1 | ||
| 41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR | ||||
| 41300-12010 |
NDE180..6FS *201 |
1 | ||
| 41300-12040 |
NDE180..6FS *201 |
1 | ||
| 41300-02030 |
NDE180..LHD..6F |
1 | ||
| 41300-12040 |
NDE180..6FS *206 |
1 | ||
| 41300-02020 |
NDE180..LHD..6F START & STOP SYSTEM PACKAGE |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90080-36143 |
NDE180,NRE180,ZRE181..6F |
1 | ||
| 90366-40129 |
NDE180..6FS *201 |
1 | ||
| 90366-40129 |
NDE180..6FS *206 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-42009 |
NDE180..6FS *206 |
1 | ||
| 90366-42009 |
NDE180..6FS *201 |
1 | ||
| 90366-W0013 |
NDE180,NRE180,ZRE181..6F |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
NDE180,NRE180,ZRE181..6F T=2.1 |
1 | ||
| 90560-41003 |
NDE180..6FS T=2.1,*201 |
1 | ||
| 90560-41003 |
NDE180..6FS T=2.1,*206 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-44040 |
NDE180..6FS T=2.125, MARK 11,*201 |
1 | ||
| 90564-44042 |
NDE180,NRE180,ZRE181..6F T=2.175, MARK 13 |
1 | ||
| 90564-44041 |
NDE180,NRE180,ZRE181..6F T=2.150, MARK 12 |
1 | ||
| 90564-44039 |
NDE180..6FS T=2.100, MARK 10,*201 |
1 | ||
| 90564-44039 |
NDE180,NRE180,ZRE181..6F T=2.100, MARK 10 |
1 | ||
| 90564-44044 |
NDE180..6FS T=2.225, MARK 15,*201 |
1 | ||
| 90564-44043 |
NDE180,NRE180,ZRE181..6F T=2.200, MARK 14 |
1 | ||
| 90564-44043 |
NDE180..6FS T=2.200, MARK 14,*201 |
1 | ||
| 90564-44045 |
NDE180..6FS T=2.250, MARK 16,*201 |
1 | ||
| 90564-44047 |
NDE180..6FS T=2.300, MARK 18,*201 |
1 | ||
| 90564-44048 |
NDE180..6FS T=2.325, MARK 19,*201 |
1 | ||
| 90564-44050 |
NDE180..6FS T=2.375, MARK 21,*201 |
1 | ||
| 90564-44046 |
NDE180..6FS T=2.275, MARK 17,*201 |
1 | ||
| 90564-44042 |
NDE180..6FS T=2.175, MARK 13,*201 |
1 | ||
| 90564-44047 |
NDE180,NRE180,ZRE181..6F T=2.300, MARK 18 |
1 | ||
| 90564-44051 |
NDE180..6FS T=2.400, MARK 22,*201 |
1 | ||
| 90564-44041 |
NDE180..6FS T=2.150, MARK 12,*201 |
1 | ||
| 90564-44052 |
NDE180..6FS T=2.425, MARK 23,*201 |
1 | ||
| 90564-44048 |
NDE180,NRE180,ZRE181..6F T=2.325, MARK 19 |
1 | ||
| 90564-44044 |
NDE180,NRE180,ZRE181..6F T=2.225, MARK 15 |
1 | ||
| 90564-44040 |
NDE180,NRE180,ZRE181..6F T=2.125, MARK 11 |
1 | ||
| 90564-44046 |
NDE180,NRE180,ZRE181..6F T=2.275, MARK 17 |
1 | ||
| 90564-44045 |
NDE180,NRE180,ZRE181..6F T=2.250, MARK 16 |
1 | ||
| 90564-44050 |
NDE180,NRE180,ZRE181..6F T=2.375, MARK 21 |
1 | ||
| 90564-44055 |
NDE180..6FS T=2.500, MARK 26,*201 |
1 | ||
| 90564-44054 |
NDE180..6FS T=2.475, MARK 25,*201 |
1 | ||
| 90564-44049 |
NDE180,NRE180,ZRE181..6F T=2.350, MARK 20 |
1 | ||
| 90564-44051 |
NDE180,NRE180,ZRE181..6F T=2.400, MARK 22 |
1 | ||
| 90564-44049 |
NDE180..6FS T=2.350, MARK 20,*201 |
1 | ||
| 90564-44054 |
NDE180,NRE180,ZRE181..6F T=2.475, MARK 25 |
1 | ||
| 90564-44053 |
NDE180,NRE180,ZRE181..6F T=2.450, MARK 24 |
1 | ||
| 90564-44056 |
NDE180,NRE180,ZRE181..6F T=2.525, MARK 27 |
1 | ||
| 90564-44053 |
NDE180..6FS T=2.450, MARK 24,*201 |
1 | ||
| 90564-44058 |
NDE180,NRE180,ZRE181..6F T=2.575, MARK 29 |
1 | ||
| 90564-44055 |
NDE180,NRE180,ZRE181..6F T=2.500, MARK 26 |
1 | ||
| 90564-44057 |
NDE180..6FS T=2.550, MARK 28,*201 |
1 | ||
| 90564-44060 |
NDE180,NRE180,ZRE181..6F T=2.625, MARK 31 |
1 | ||
| 90564-44058 |
NDE180..6FS T=2.575, MARK 29,*201 |
1 | ||
| 90564-44052 |
NDE180,NRE180,ZRE181..6F T=2.425, MARK 23 |
1 | ||
| 90564-44056 |
NDE180..6FS T=2.525, MARK 27,*201 |
1 | ||
| 90564-44059 |
NDE180..6FS T=2.600, MARK 30,*201 |
1 | ||
| 90564-44067 |
NDE180..6FS T=2.800, MARK 38,*201 |
1 | ||
| 90564-44063 |
NDE180,NRE180,ZRE181..6F T=2.700, MARK 34 |
1 | ||
| 90564-44064 |
NDE180,NRE180,ZRE181..6F T=2.725, MARK 35 |
1 | ||
| 90564-44061 |
NDE180,NRE180,ZRE181..6F T=2.650, MARK 32 |
1 | ||
| 90564-44062 |
NDE180,NRE180,ZRE181..6F T=2.675, MARK 33 |
1 | ||
| 90564-44059 |
NDE180,NRE180,ZRE181..6F T=2.600, MARK 30 |
1 | ||
| 90564-44063 |
NDE180..6FS T=2.700, MARK 34,*201 |
1 | ||
| 90564-44065 |
NDE180,NRE180,ZRE181..6F T=2.750, MARK 36 |
1 | ||
| 90564-44066 |
NDE180..6FS T=2.775, MARK 37,*201 |
1 | ||
| 90564-44064 |
NDE180..6FS T=2.725, MARK 35,*201 |
1 | ||
| 90564-44068 |
NDE180..6FS T=2.825, MARK 39,*201 |
1 | ||
| 90564-44061 |
NDE180..6FS T=2.650, MARK 32,*201 |
1 | ||
| 90564-44069 |
NDE180..6FS T=2.850, MARK 40,*201 |
1 | ||
| 90564-44057 |
NDE180,NRE180,ZRE181..6F T=2.550, MARK 28 |
1 | ||
| 90564-44068 |
NDE180,NRE180,ZRE181..6F T=2.825, MARK 39 |
1 | ||
| 90564-44060 |
NDE180..6FS T=2.625, MARK 31,*201 |
1 | ||
| 90564-44062 |
NDE180..6FS T=2.675, MARK 33,*201 |
1 | ||
| 90564-44040 |
NDE180..6FS T=2.125, MARK 11,*206 |
1 | ||
| 90564-44067 |
NDE180,NRE180,ZRE181..6F T=2.800, MARK 38 |
1 | ||
| 90564-44065 |
NDE180..6FS T=2.750, MARK 36,*201 |
1 | ||
| 90564-44066 |
NDE180,NRE180,ZRE181..6F T=2.775, MARK 37 |
1 | ||
| 90564-44069 |
NDE180,NRE180,ZRE181..6F T=2.850, MARK 40 |
1 | ||
| 90564-44046 |
NDE180..6FS T=2.275, MARK 17,*206 |
1 | ||
| 90564-44041 |
NDE180..6FS T=2.150, MARK 12,*206 |
1 | ||
| 90564-44051 |
NDE180..6FS T=2.400, MARK 22,*206 |
1 | ||
| 90564-44039 |
NDE180..6FS T=2.100, MARK 10,*206 |
1 | ||
| 90564-44045 |
NDE180..6FS T=2.250, MARK 16,*206 |
1 | ||
| 90564-44047 |
NDE180..6FS T=2.300, MARK 18,*206 |
1 | ||
| 90564-44057 |
NDE180..6FS T=2.550, MARK 28,*206 |
1 | ||
| 90564-44054 |
NDE180..6FS T=2.475, MARK 25,*206 |
1 | ||
| 90564-44048 |
NDE180..6FS T=2.325, MARK 19,*206 |
1 | ||
| 90564-44050 |
NDE180..6FS T=2.375, MARK 21,*206 |
1 | ||
| 90564-44052 |
NDE180..6FS T=2.425, MARK 23,*206 |
1 | ||
| 90564-44065 |
NDE180..6FS T=2.750, MARK 36,*206 |
1 | ||
| 90564-44062 |
NDE180..6FS T=2.675, MARK 33,*206 |
1 | ||
| 90564-44055 |
NDE180..6FS T=2.500, MARK 26,*206 |
1 | ||
| 90564-44056 |
NDE180..6FS T=2.525, MARK 27,*206 |
1 | ||
| 90564-44059 |
NDE180..6FS T=2.600, MARK 30,*206 |
1 | ||
| 90564-44064 |
NDE180..6FS T=2.725, MARK 35,*206 |
1 | ||
| 90564-44063 |
NDE180..6FS T=2.700, MARK 34,*206 |
1 | ||
| 90564-44061 |
NDE180..6FS T=2.650, MARK 32,*206 |
1 | ||
| 90564-44053 |
NDE180..6FS T=2.450, MARK 24,*206 |
1 | ||
| 90564-44042 |
NDE180..6FS T=2.175, MARK 13,*206 |
1 | ||
| 90564-44044 |
NDE180..6FS T=2.225, MARK 15,*206 |
1 | ||
| 90564-44049 |
NDE180..6FS T=2.350, MARK 20,*206 |
1 | ||
| 90564-44066 |
NDE180..6FS T=2.775, MARK 37,*206 |
1 | ||
| 90564-44069 |
NDE180..6FS T=2.850, MARK 40,*206 |
1 | ||
| 90564-44060 |
NDE180..6FS T=2.625, MARK 31,*206 |
1 | ||
| 90564-44058 |
NDE180..6FS T=2.575, MARK 29,*206 |
1 | ||
| 90564-44067 |
NDE180..6FS T=2.800, MARK 38,*206 |
1 | ||
| 90564-44068 |
NDE180..6FS T=2.825, MARK 39,*206 |
1 | ||
| 90564-44043 |
NDE180..6FS T=2.200, MARK 14,*206 |
1 | ||
| 41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON | ||||
| 90080-36144 |
NDE180,NRE180,ZRE181..6F |
1 | ||
| 90366-40130 |
NDE180..6FS *206 |
1 | ||
| 90366-40130 |
NDE180..6FS *201 |
1 | ||
| 41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR | ||||
| 90366-42010 |
NDE180..6FS *206 |
1 | ||
| 90366-42010 |
NDE180..6FS *201 |
1 | ||
| 90366-W0014 |
NDE180,NRE180,ZRE181..6F |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-0D070 |
NDE180,ZRE181..6F |
2 | ||
| 41331-20130 |
NDE180..6FS *201 |
2 | ||
| 41331-05030 |
NDE180,ZRE181..6F |
2 | ||
| 41331-52090 |
NDE180..6FS *201 |
2 | ||
| 41331-12190 |
NDE180..6FS *206 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-0D070 |
NDE180,ZRE181..6F |
2 | ||
| 41331-20130 |
NDE180..6FS *201 |
2 | ||
| 41331-05030 |
NDE180,ZRE181..6F |
2 | ||
| 41331-52090 |
NDE180..6FS *201 |
2 | ||
| 41331-12190 |
NDE180..6FS *206 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20050 |
NDE180..6FS *201 |
2 | ||
| 41341-05030 |
NDE180,ZRE181..6F |
2 | ||
| 41341-52100 |
NDE180..6FS *201 |
2 | ||
| 41341-0D070 |
NDE180,ZRE181..6F |
2 | ||
| 41341-12130 |
NDE180..6FS *206 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20050 |
NDE180..6FS *201 |
2 | ||
| 41341-05030 |
NDE180,ZRE181..6F |
2 | ||
| 41341-52100 |
NDE180..6FS *201 |
2 | ||
| 41341-0D070 |
NDE180,ZRE181..6F |
2 | ||
| 41341-12130 |
NDE180..6FS *206 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
NDE180..6FS *201 |
1 | ||
| 90250-06058 |
NDE180..6FS *206 |
1 | ||
| 90250-06058 |
NDE180,NRE180,ZRE181..6F |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-52060 |
NDE180..6FS *201 |
1 | ||
| 41342-52060 |
NDE180,NRE180,ZRE181..6F |
1 | ||
| 41342-32020 |
NDE180..6FS *206 |
1 | ||
| 41342-32020 |
NDE180,NRE180,ZRE181..6F |
1 | ||
| 41342-32020 |
NDE180..6FS *201 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
NDE180..6FS *206 |
2 | ||
| 41351-32010 |
NDE180,ZRE181..6F |
2 | ||
| 41351-32010 |
NDE180..6FS *201 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
NDE180..6FS *206 |
2 | ||
| 41351-32010 |
NDE180,ZRE181..6F |
2 | ||
| 41351-32010 |
NDE180..6FS *201 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
NDE180..6FS T=1.20,MARK 04,*201 |
2 | ||
| 41361-22020 |
NDE180,NRE180,ZRE181..6F T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NDE180,NRE180,ZRE181..6F T=1.10,MARK 03 |
2 | ||
| 41361-22040 |
NDE180,NRE180,ZRE181..6F T=1.20,MARK 04 |
2 | ||
| 41361-22020 |
NDE180..6FS T=1.00,MARK 02,*201 |
2 | ||
| 41361-22160 |
NDE180..6FS T=1.15,MARK 16,*201 |
2 | ||
| 41361-48010 |
NDE180,NRE180,ZRE181..6F T=0.90,MARK 19 |
2 | ||
| 41361-22140 |
NDE180,NRE180,ZRE181..6F T=0.95,MARK 14 |
2 | ||
| 41361-22020 |
NDE180..6FS T=1.00,MARK 02,*206 |
2 | ||
| 41361-22160 |
NDE180,NRE180,ZRE181..6F T=1.15,MARK 16 |
2 | ||
| 41361-22030 |
NDE180..6FS T=1.10,MARK 03,*206 |
2 | ||
| 41361-22150 |
NDE180..6FS T=1.05,MARK 15,*206 |
2 | ||
| 41361-22030 |
NDE180..6FS T=1.10,MARK 03,*201 |
2 | ||
| 41361-22150 |
NDE180..6FS T=1.05,MARK 15,*201 |
2 | ||
| 41361-22150 |
NDE180,NRE180,ZRE181..6F T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
NDE180..6FS T=1.20,MARK 04,*206 |
2 | ||
| 41361-48010 |
NDE180..6FS T=0.90,MARK 19,*206 |
2 | ||
| 41361-22140 |
NDE180..6FS T=0.95,MARK 14,*201 |
2 | ||
| 41361-22160 |
NDE180..6FS T=1.15,MARK 16,*206 |
2 | ||
| 41361-22140 |
NDE180..6FS T=0.95,MARK 14,*206 |
2 | ||
| 41361-48010 |
NDE180..6FS T=0.90,MARK 19,*201 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
NDE180..6FS T=1.20,MARK 04,*201 |
2 | ||
| 41361-22020 |
NDE180,NRE180,ZRE181..6F T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NDE180,NRE180,ZRE181..6F T=1.10,MARK 03 |
2 | ||
| 41361-22040 |
NDE180,NRE180,ZRE181..6F T=1.20,MARK 04 |
2 | ||
| 41361-22020 |
NDE180..6FS T=1.00,MARK 02,*201 |
2 | ||
| 41361-22160 |
NDE180..6FS T=1.15,MARK 16,*201 |
2 | ||
| 41361-48010 |
NDE180,NRE180,ZRE181..6F T=0.90,MARK 19 |
2 | ||
| 41361-22140 |
NDE180,NRE180,ZRE181..6F T=0.95,MARK 14 |
2 | ||
| 41361-22020 |
NDE180..6FS T=1.00,MARK 02,*206 |
2 | ||
| 41361-22160 |
NDE180,NRE180,ZRE181..6F T=1.15,MARK 16 |
2 | ||
| 41361-22030 |
NDE180..6FS T=1.10,MARK 03,*206 |
2 | ||
| 41361-22150 |
NDE180..6FS T=1.05,MARK 15,*206 |
2 | ||
| 41361-22030 |
NDE180..6FS T=1.10,MARK 03,*201 |
2 | ||
| 41361-22150 |
NDE180..6FS T=1.05,MARK 15,*201 |
2 | ||
| 41361-22150 |
NDE180,NRE180,ZRE181..6F T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
NDE180..6FS T=1.20,MARK 04,*206 |
2 | ||
| 41361-48010 |
NDE180..6FS T=0.90,MARK 19,*206 |
2 | ||
| 41361-22140 |
NDE180..6FS T=0.95,MARK 14,*201 |
2 | ||
| 41361-22160 |
NDE180..6FS T=1.15,MARK 16,*206 |
2 | ||
| 41361-22140 |
NDE180..6FS T=0.95,MARK 14,*206 |
2 | ||
| 41361-48010 |
NDE180..6FS T=0.90,MARK 19,*201 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-35001 |
NDE180..6FS *201 |
2 | ||
| 90208-35001 |
NDE180..6FS *206 |
2 | ||
| 90208-35001 |
NDE180,NRE180,ZRE181..6F |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-35001 |
NDE180..6FS *201 |
2 | ||
| 90208-35001 |
NDE180..6FS *206 |
2 | ||
| 90208-35001 |
NDE180,NRE180,ZRE181..6F |
2 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
