NDE180L-DELNXW (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 1NDTV
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )1NDTV

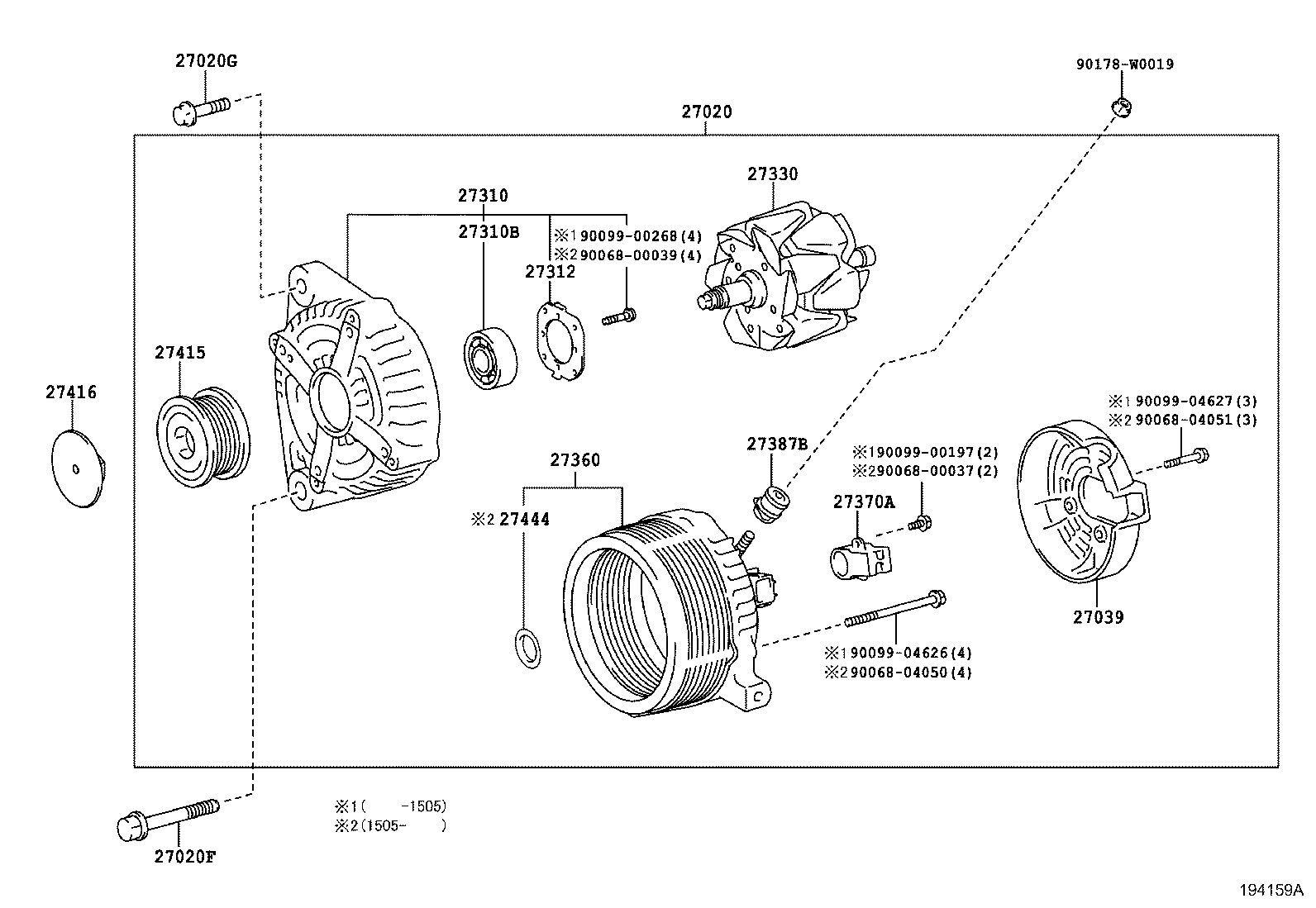

Click highlighted areas on diagram

12V 100A

diagram 27020 27020F 27020G 27039 27310 27310B 27312 27330 27360 27370A 27387B 27415 27416 27444 9006800037 9006800039 9006804050 9006804051 9009900197 9009900268 9009904626 9009904627 90178W0019
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0N100

1NDTV..NDE180

12V 100A

 1
27060-0N140

1NDTV..NDE180

12V 100A

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90105-W0044

1NDTV..NDE180

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
90119-W0238

1NDTV..NDE180

(L)

 1
91671-00845

1NDTV..NDE180

(J)

 1
91552-81050

1NDTV..NDE180

 1
27039 - COVER, ALTERNATOR REAR END
27039-0Y150

1NDTV..NDE180;1NRFE..NRE180..RHD

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0N080

1NDTV..NDE180

 1
27310-0N120

1NDTV..NDE180

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

1NDTV..NDE180

 1
90099-10231

1NDTV..NDE180

 1
27312 - PLATE, RETAINER
27312-72100

1NDTV..NDE180

 1
27312-0T300

1NDTV,1ZRFAE..NDE180,ZRE181

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0Y150

1NDTV..NDE180;1NRFE..NRE180..RHD

 1
27360 - COIL ASSY, ALTERNATOR
27360-0N080

1NDTV..NDE180

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-0Y150

1NDTV..NDE180;1NRFE..NRE180..RHD

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-0Y150

1NDTV..NDE180;1NRFE..NRE180..RHD

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-33100

1NDTV..NDE180

 1
27416 - CAP, ALTERNATOR PULLEY
27416-27010

1NDTV..NDE180

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-0T300

1NDTV,1ZRFAE..NDE180,ZRE181

 1
Common parts
90068-00037
90068-00039
90068-04050
90068-04051
90099-00197
90099-00268
90099-04626
90099-04627
90178-W0019
