NDE180L-DEFNXW (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

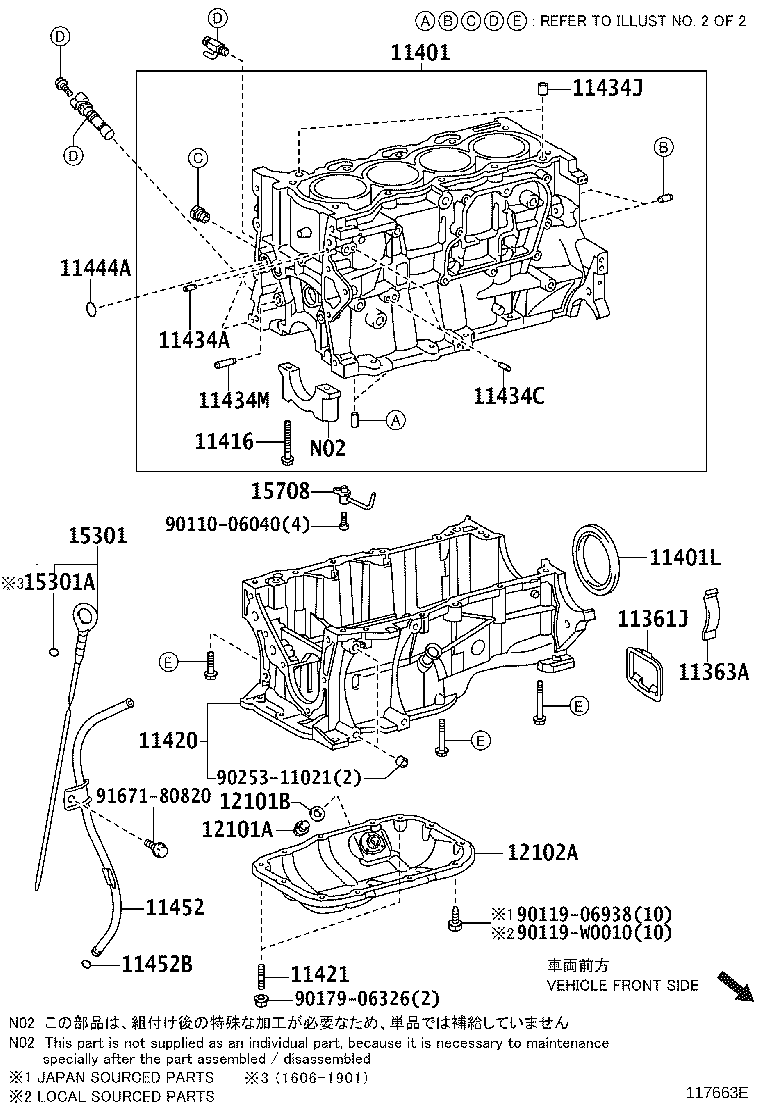

ILLUST NO. 1 OF 2(1306- )1ZRFE,2ZRFE ; (1306- )1ZRFAE..G,N; (1306- )1ZRFAE..RHD ; (1306-

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401L 11416 11420 11421 11434A 11434C 11434J 11434M 11444A 11452 11452B 12101A 12101B 12102A 15301 15301A 15708 9011006040 9011906938 90119W0010 9017906326 9025311021 9167180820
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11410-39155

1NDTV..NDE180

 1
11410-09680

1NDTV..NDE180

(L)

 1
11410-39155

1NDTV..NDE180

(J)

 1
11410-09650

1NDTV..NDE180

(L)

 1
11401L - SEAL, ENGINE REAR OIL
90311-75020

1NDTV..NDE180

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02154

1NDTV..NDE180

 10
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1NDTV..NDE180

L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

1NDTV..NDE180

L=18,OD=8

 2
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1NDTV..NDE180

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1NDTV..NDE180

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1N#..NDE180,NRE180

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-33010

1NDTV..NDE180

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-33050

1NDTV..NDE180..6F

PNC 13516B=TYPE A

 1
15301-33040

1NDTV..NDE180..6F

PNC 13516B=TYPE B

 1
15301-33050

1NDTV..NDE180..LHD..6F

PNC 13516B=TYPE A

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-33030

1NDTV..NDE180..6F

PNC 13516B=TYPE B

 4
15708-33020

1NDTV..NDE180..6F

PNC 13516B=TYPE A

 4
15708-33020

1NDTV..NDE180..LHD..6F

TURKEY SPEC,PNC 13516B=TYPE A

 4
Common parts
90110-06040
90119-06938
90119-W0010
90179-06326
90253-11021
91671-80820

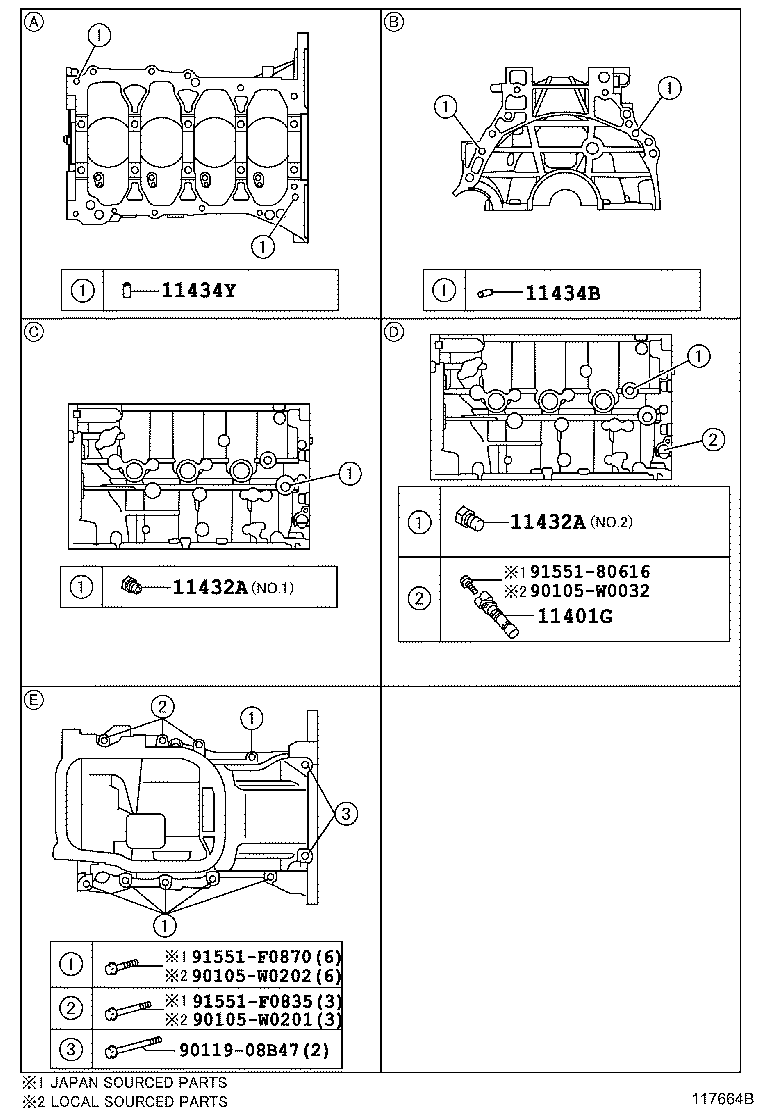

ILLUST NO. 2 OF 2(1306- )1ZRFE,2ZRFE ; (1306- )1ZRFAE..G,N; (1306- )1ZRFAE..RHD ; (1306-

Click highlighted areas on diagram

diagram 11401G 11432A 11432A 11434B 11434Y 90105W0032 90105W0201 90105W0202 9011908B47 9155180616 91551F0835 91551F0870
Part # Description Qty Price
11401G - SENSOR, CRANK POSITION
90919-05074

1NDTV..NDE180

 1
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-08120

1NDTV..NDE180

 2
Common parts
90105-W0032
90105-W0201
90105-W0202
90119-08B47
91551-80616
91551-F0835
91551-F0870

ILLUST NO. 1 OF 2(1306- )1NDTV

Click highlighted areas on diagram

diagram 11271C 11401 11401L 11409 11416 11434A 11434A 11434C 11434C 11445 11452B 12101 12101A 12101B 12102A 12140 12143 12145 12511B 12511D 13516B 1501 1501 1501 15301 15708 1603 1603 8401 8401 9011006040 9011906938 90119W0010 9012606028 9017906326 9020106021 9020106021 9020106021 9020106021 9040452041 91552F1035 9167180614 9167180614 9167180614 9167180614 9167180614
Part # Description Qty Price
11271C - COVER, CYLIVDER BLOCK SIDE
11271-0N021

1NDTV..NDE180

 1
11271-33051

1NDTV..NDE180

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-39155

1NDTV..NDE180

 1
11410-09680

1NDTV..NDE180

(L)

 1
11410-39155

1NDTV..NDE180

(J)

 1
11410-09650

1NDTV..NDE180

(L)

 1
11401L - SEAL, ENGINE REAR OIL
90311-75020

1NDTV..NDE180

 1
11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE
11409-33011

1NDTV..NDE180

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02154

1NDTV..NDE180

 10
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1NDTV..NDE180

L=18,OD=8

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1NDTV..NDE180

L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

1NDTV..NDE180

L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

1NDTV..NDE180

L=18,OD=8

 2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-33010

1NDTV..NDE180

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1NDTV..NDE180

 1
12101 - PAN SUB-ASSY, OIL
12101-0N010

1NDTV..NDE180

(L)

 1
12101-33060

1NDTV..NDE180

(J)

 1
12101-0N011

1NDTV..NDE180

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1NDTV..NDE180

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1N#..NDE180,NRE180

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-33010

1NDTV..NDE180

 1
12140 - COVER, OIL PAN
12615-0N010

1NDTV..NDE180

(L)

 1
12615-33011

1NDTV..NDE180

 1
12615-33011

1NDTV..NDE180

(J)

 1
12143 - COVER, OIL PAN
12143-33031

1NDTV..NDE180

 1
12143-0N030

1NDTV..NDE180

(L)

 1
12143-33031

1NDTV..NDE180

(J)

 1
12145 - SILENCER, OIL PAN COVER, NO.2
12145-0N010

1NDTV..NDE180

(L)

 1
12145-33011

1NDTV..NDE180

 1
12145-33011

1NDTV..NDE180

(J)

 1
12511B - PIN, RING(FOR ALTERNATOR BRACKET)
90250-04097

1NDTV..NDE180

 1
12511D - BRACKET, ALTERNATOR
12511-33021

1NDTV..NDE180

 1
13516B - JET, OIL
13516-33030

1NDTV..NDE180..LHD..6F

TURKEY SPEC,TYPE A:REFER ILLUST.

 1
13516-33030

1NDTV..NDE180..6F

TYPE A:REFER ILLUST.

 1
13516-33040

1NDTV..NDE180..6F

TYPE B:REFER ILLUST.

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-33050

1NDTV..NDE180..6F

PNC 13516B=TYPE A

 1
15301-33040

1NDTV..NDE180..6F

PNC 13516B=TYPE B

 1
15301-33050

1NDTV..NDE180..LHD..6F

PNC 13516B=TYPE A

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-33030

1NDTV..NDE180..6F

PNC 13516B=TYPE B

 4
15708-33020

1NDTV..NDE180..6F

PNC 13516B=TYPE A

 4
15708-33020

1NDTV..NDE180..LHD..6F

TURKEY SPEC,PNC 13516B=TYPE A

 4
Common parts
90110-06040
90119-06938
90119-W0010
90126-06028
90179-06326
90201-06021
90404-52041
91552-F1035
91671-80614
Linked diagrams
1501
1603
8401

ILLUST NO. 2 OF 2(1306- )1NDTV

Click highlighted areas on diagram

diagram 11401G 11434G 11434Y 9010508392 90105W0032 90105W0032 90105W0188 9011908B47 9155180616 9155180616 91551G0835
Part # Description Qty Price
11401G - SENSOR, CRANK POSITION
90919-05074

1NDTV..NDE180

 1
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

1NDTV..NDE180

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-08120

1NDTV..NDE180

 2
Common parts
90105-08392
90105-W0032
90105-W0188
90119-08B47
91551-80616
91551-G0835
