NDE180L-DEFDXW (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )ZRE181..G,N ; (1306- )ZRE181..RHD; (1306- )ZRE181..6F..D ; (1306-

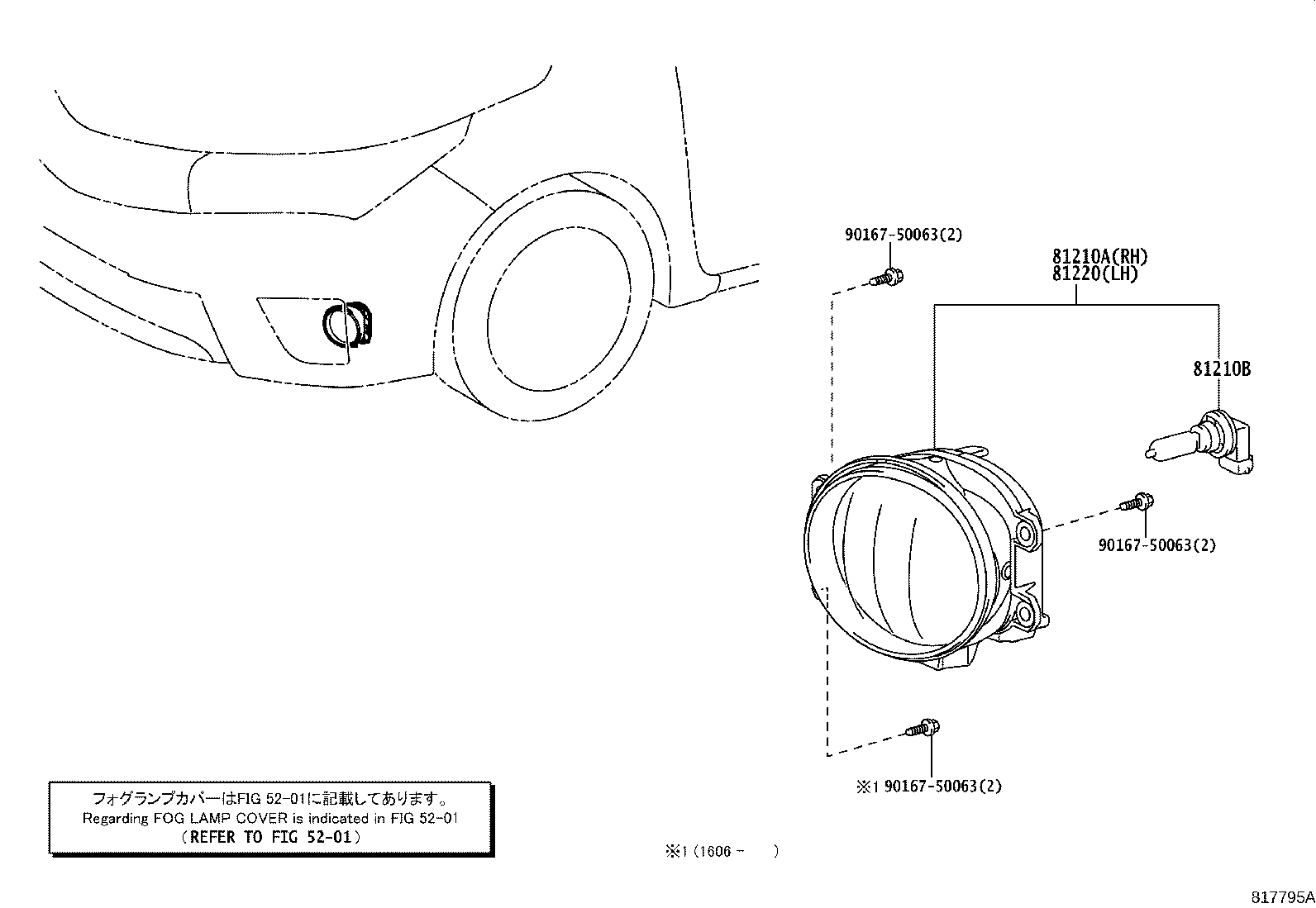

Click highlighted areas on diagram

diagram 5201 81210A 81210B 81220 9016750063 9016750063 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-02110

ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N

FRONT FOG LAMP-WITH

 1
81210B - BULB, FOG LAMP
90981-WD016

ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N

12V 19W,FRONT FOG LAMP-WITH

 2
81220 - LAMP ASSY, FOG, LH
81220-02110

ZRE181..6F..N;ZRE181..CVT..HTWVM;NDE180,NRE180..RHD;ZRE181..CVT..N..HTWC;NDE180,NRE180,ZRE182..N

FRONT FOG LAMP-WITH

 1
Common parts
90167-50063
Linked diagrams
5201
