NDE180L-DEFDXW (2013)

Toyota Corolla

Production Jun 2013 - May 2016
Engine 1NDTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

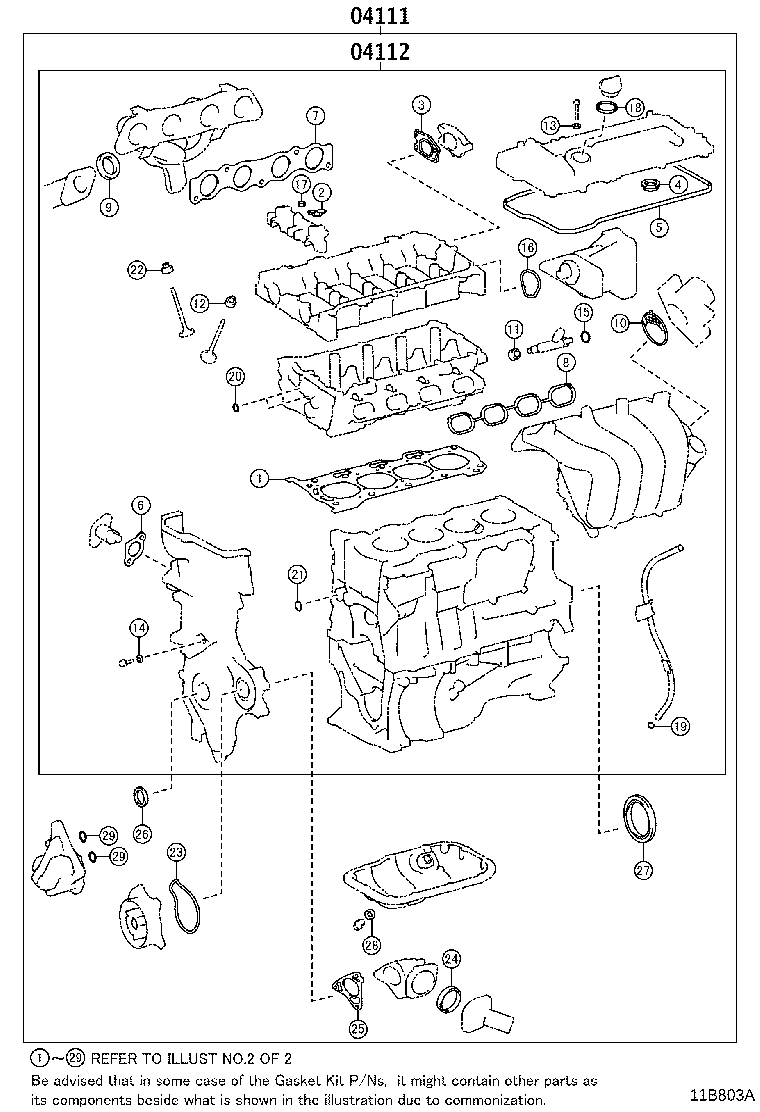

ILLUST NO. 1 OF 2(1306- )1NDTV

Click highlighted areas on diagram

EXCEPT EURO6

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-33220

1NDTV..NDE180..6F

 1
04111-33230

1NDTV..NDE180..6F

 1
04111-33182

1NDTV..NDE180

 1
04111-33181

1NDTV..NDE180

 1
04111-33230

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-33182

1NDTV..NDE180

 1
04112-33210

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112-33200

1NDTV..NDE180..6F

 1
04112-33210

1NDTV..NDE180..6F

 1
04112-33181

1NDTV..NDE180

 1

ILLUST NO. 1 OF 2(1505- )1NDTV..D,N ; (1505- )1NDTV..6F..G

Click highlighted areas on diagram

EURO6

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-33220

1NDTV..NDE180..6F

 1
04111-33230

1NDTV..NDE180..6F

 1
04111-33182

1NDTV..NDE180

 1
04111-33181

1NDTV..NDE180

 1
04111-33230

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-33182

1NDTV..NDE180

 1
04112-33210

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112-33200

1NDTV..NDE180..6F

 1
04112-33210

1NDTV..NDE180..6F

 1
04112-33181

1NDTV..NDE180

 1

ILLUST NO. 1 OF 2(1306- )1ZRFAE..G,N ; (1306- )1ZRFAE..RHD; (1306- )1ZRFAE..6F..D ; (1711-

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-33220

1NDTV..NDE180..6F

 1
04111-33230

1NDTV..NDE180..6F

 1
04111-33182

1NDTV..NDE180

 1
04111-33181

1NDTV..NDE180

 1
04111-33230

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-33182

1NDTV..NDE180

 1
04112-33210

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112-33200

1NDTV..NDE180..6F

 1
04112-33210

1NDTV..NDE180..6F

 1
04112-33181

1NDTV..NDE180

 1

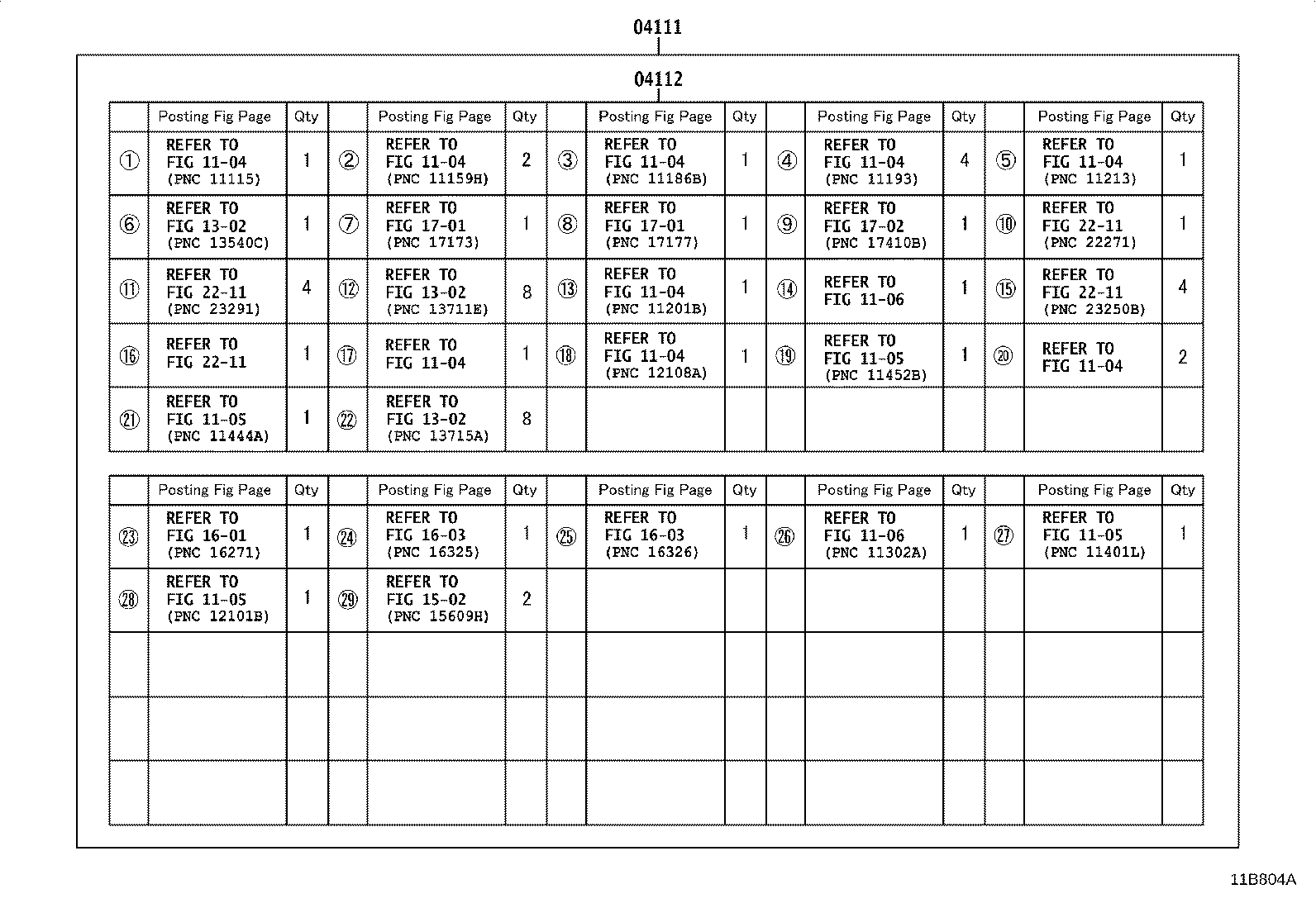

ILLUST NO. 2 OF 2(1306- )1ZRFAE..G,N ; (1306- )1ZRFAE..RHD; (1306- )1ZRFAE..6F..D ; (1711-

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1104 1104 1105 1105 1105 1105 1106 1106 1302 1302 1302 1502 1601 1603 1603 1701 1701 1702 2211 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-33220

1NDTV..NDE180..6F

 1
04111-33230

1NDTV..NDE180..6F

 1
04111-33182

1NDTV..NDE180

 1
04111-33181

1NDTV..NDE180

 1
04111-33230

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-33182

1NDTV..NDE180

 1
04112-33210

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112-33200

1NDTV..NDE180..6F

 1
04112-33210

1NDTV..NDE180..6F

 1
04112-33181

1NDTV..NDE180

 1
Linked diagrams
1104
1105
1106
1302
1502
1601
1603
1701
1702
2211

ILLUST NO. 2 OF 2(1306- )1NDTV

Click highlighted areas on diagram

EXCEPT EURO6

diagram 04111 04112 1104 1104 1104 1105 1105 1105 1106 1302 1302 1501 1502 1503 1503 1601 1603 1603 1603 1603 1701 1701 1701 1701 1701 1701 1701 1701 1702 2201 2202 2501 2501 2501 2501 2501 2606
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-33220

1NDTV..NDE180..6F

 1
04111-33230

1NDTV..NDE180..6F

 1
04111-33182

1NDTV..NDE180

 1
04111-33181

1NDTV..NDE180

 1
04111-33230

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-33182

1NDTV..NDE180

 1
04112-33210

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112-33200

1NDTV..NDE180..6F

 1
04112-33210

1NDTV..NDE180..6F

 1
04112-33181

1NDTV..NDE180

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
1702
2201
2202
2501
2606

ILLUST NO. 2 OF 2(1505- )1NDTV..D,N ; (1505- )1NDTV..6F..G

Click highlighted areas on diagram

EURO 6

diagram 04111 04112 1104 1104 1104 1105 1105 1105 1106 1302 1302 1501 1502 1503 1503 1601 1603 1603 1603 1603 1701 1701 1701 1701 1701 1701 1701 1702 2201 2202 2202 2501 2501 2501 2501 2501 2606
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-33220

1NDTV..NDE180..6F

 1
04111-33230

1NDTV..NDE180..6F

 1
04111-33182

1NDTV..NDE180

 1
04111-33181

1NDTV..NDE180

 1
04111-33230

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-33182

1NDTV..NDE180

 1
04112-33210

1NDTV..NDE180..LHD..6F

TURKEY SPEC

 1
04112-33200

1NDTV..NDE180..6F

 1
04112-33210

1NDTV..NDE180..6F

 1
04112-33181

1NDTV..NDE180

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
1702
2201
2202
2501
2606
