CE70RG-EWMDSW (1985)
Toyota Corolla
Production
Jan 1985
-
Jul 1987
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8501- )CE70..RHD

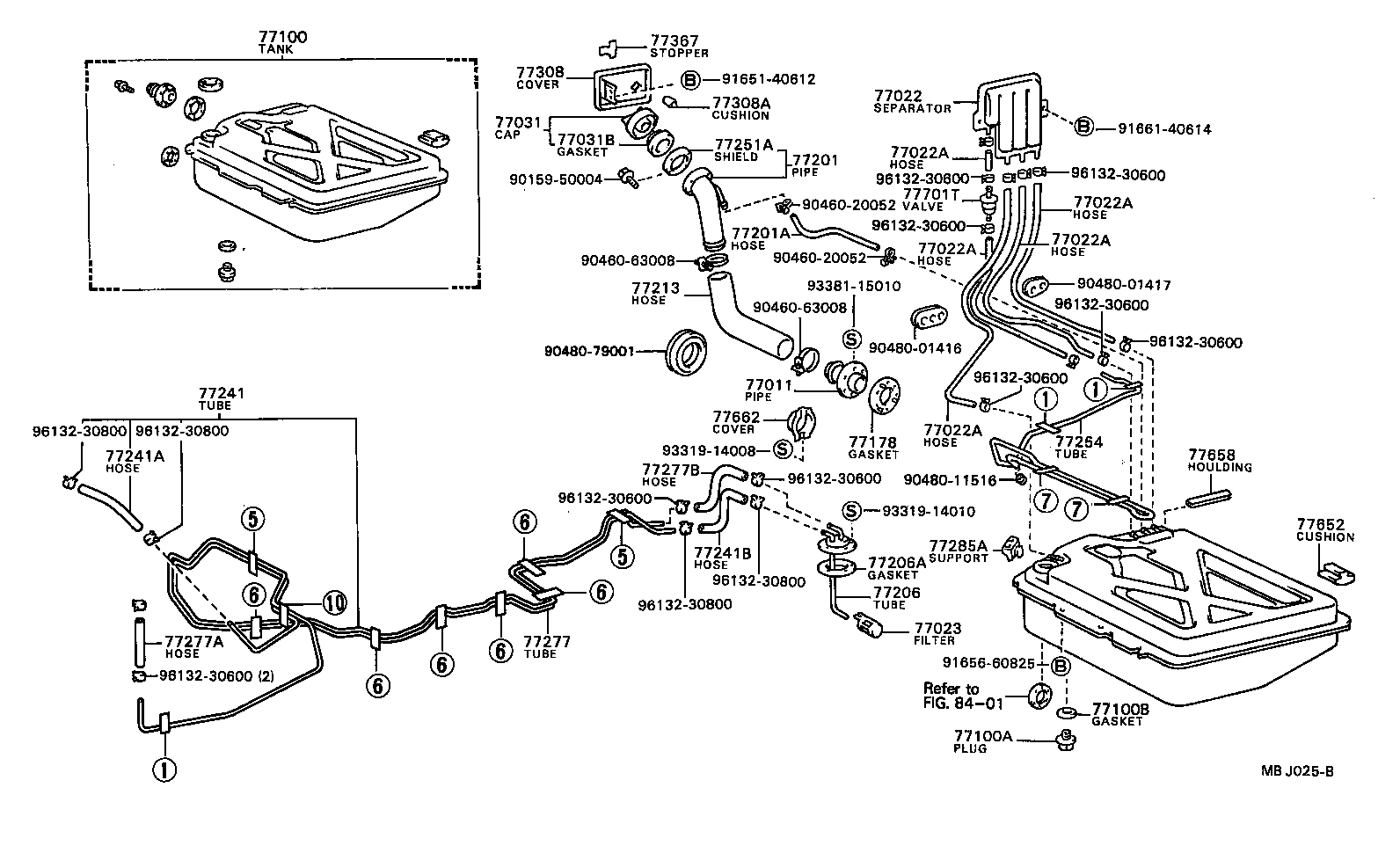

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-13010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-13010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06060 |
AE71,CE70,KE70,TE71..DV,WG *H,L=500 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AE71,CE70,KE70,TE7# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-13090 |
CE70,KE70..EUR |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
AE71,CE70,KE70,TE7# |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-13040 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-13110 |
CE70..RHD |
1 | ||
| 77251A - SHIELD, FUEL TANK, INLET, NO.2 | ||||
| 77291-22010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-13110 |
CE70..RHD |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12040 |
CE70..RHD |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06001 |
AE71,CE70,KE70,TE71..DV,WG |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-13020 |
AE71,CE70,KE70,TE71..DV,WG |
3 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-12010 |
AE71,CE70,KE70,TE7# |
2 | ||
| 77662 - COVER, FUEL TANK GAGE | ||||
| 77662-13010 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA |
1 | ||
| Common parts | ||||
| 90159-50004 | ||||
| 90460-20052 | ||||
| 90460-63008 | ||||
| 90480-01416 | ||||
| 90480-01417 | ||||
| 90480-11516 | ||||
| 90480-79001 | ||||
| 91651-40612 | ||||
| 91656-60825 | ||||
| 91661-40614 | ||||
| 93319-14008 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
