CE70R-EEMDSW (1982)

Toyota Corolla

Production Oct 1982 - May 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )CE70

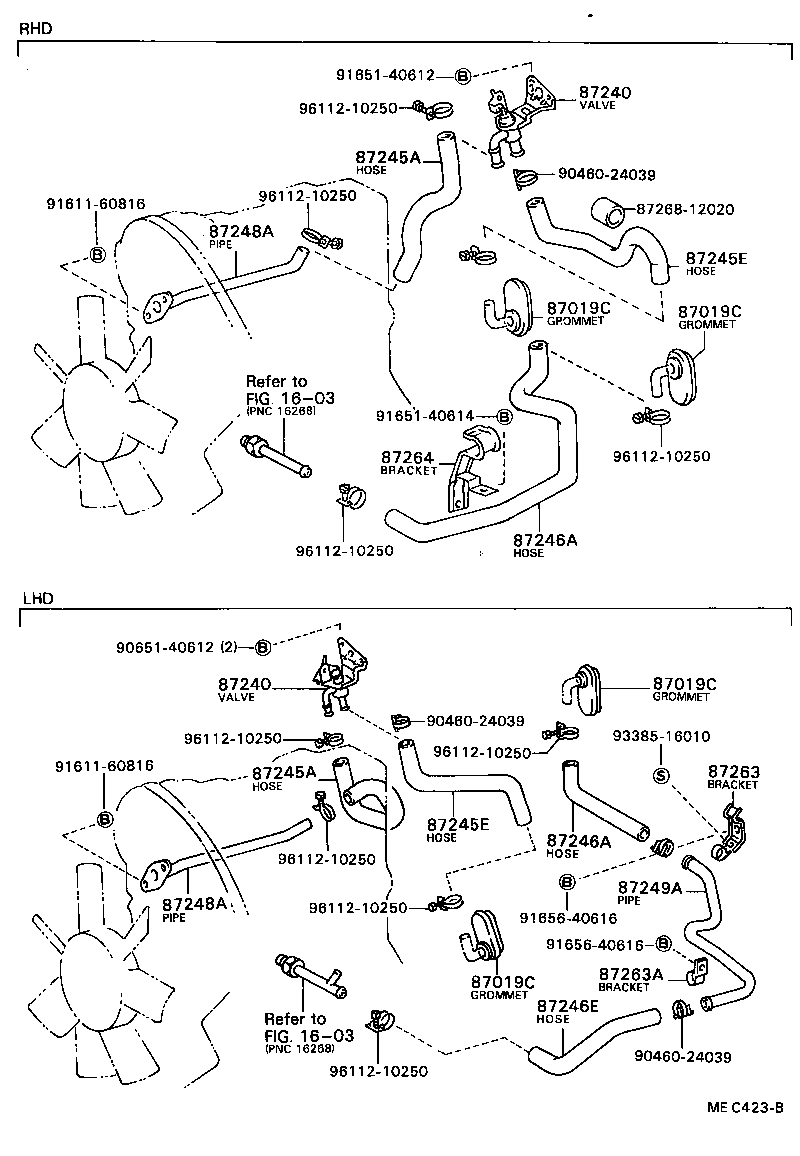

Click highlighted areas on diagram

diagram 1603 1603 87019C 87019C 87019C 87019C 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87246E 87248A 87248A 87249A 87263 87263A 87264 8726812020 9046024039 9046024039 9046024039 9065140612 9161160816 9161160816 9165140612 9165140614 9165640616 9165640616 9338516010 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87240 - VALVE ASSY, HEATER WATER
87240-12100

CE70,KE70..RHD..EUG

 1
87240 - VALVE ASSY, HEATER WATER
87240-12100

CE70,KE70..RHD..EUG

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12600

CE70..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12600

CE70..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12350

AE71,CE70,KE70..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12350

AE71,CE70,KE70..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12610

CE70..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12610

CE70..RHD

 1
87264 - BRACKET, HEATER WATER HOSE
87263-12190

CE70..RHD

 1
Common parts
87268-12020
90460-24039
90651-40612
91611-60816
91651-40612
91651-40614
91656-40616
93385-16010
96112-10250
Linked diagrams
1603
