CE70R-EEMDSW (1982)
Toyota Corolla
Production
Oct 1982
-
May 1983
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8305)1C

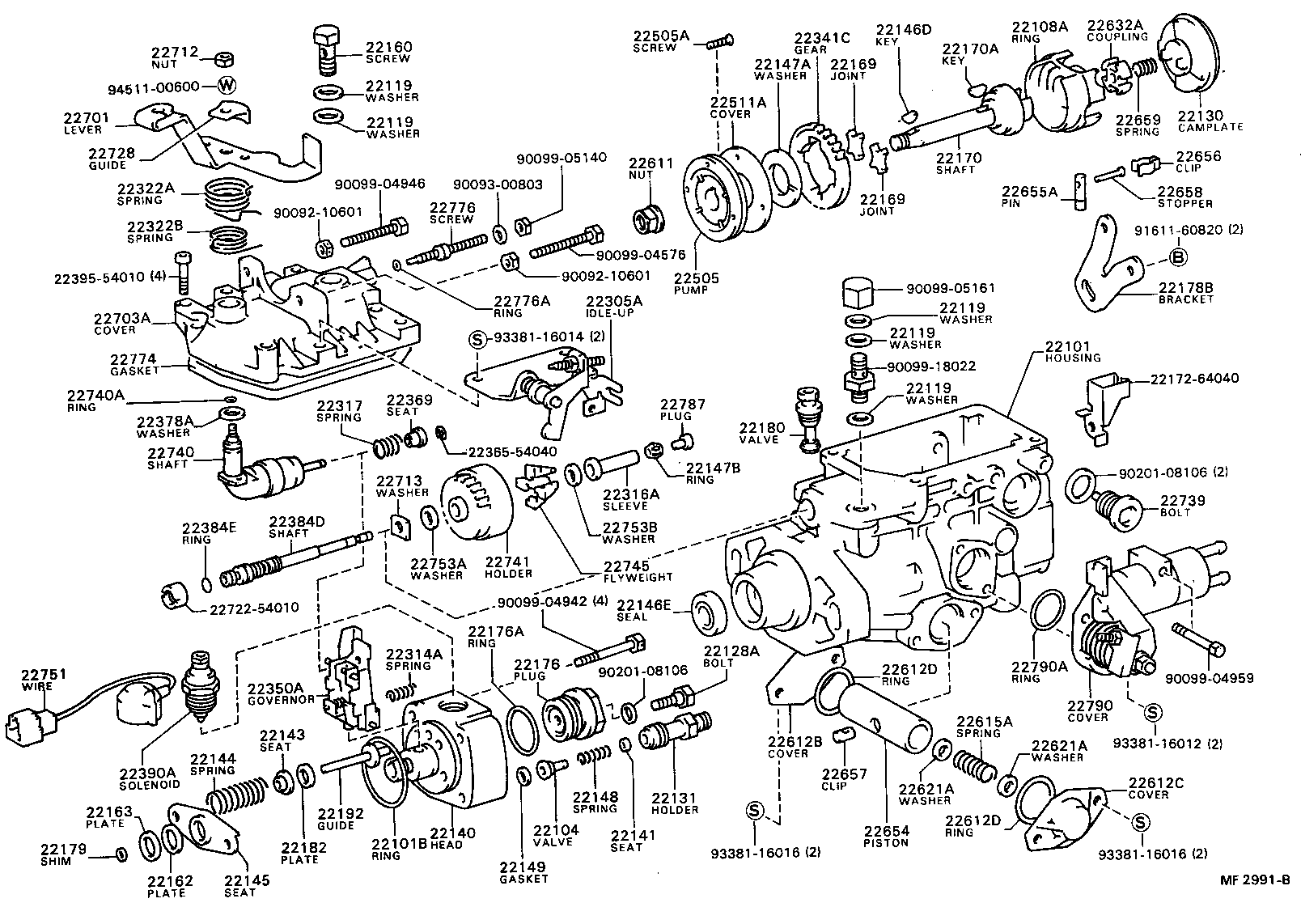

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64010 |
1C..CE70 |
1 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
1C..CE70 |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-64010 |
1C..CE70 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-64010 |
1C..CE70 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-64030 |
1C..CE70 K=0.2,L=6.0 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-64010 |
1C..CE70 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-64010 |
1C..CE70 K=3.30,L=37.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-54010 |
1C..CE70 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54080 |
1C..CE70 |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22302-64010 |
1C..CE70 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-64010 |
1C..CE70 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1C..CE70 |
1 | ||
| Common parts | ||||
| 22172-64040 | ||||
| 22365-54040 | ||||
| 22395-54010 | ||||
| 22722-54010 | ||||
| 90092-10601 | ||||
| 90093-00803 | ||||
| 90099-04576 | ||||
| 90099-04942 | ||||
| 90099-04946 | ||||
| 90099-04959 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| 90201-08106 | ||||
| 91611-60820 | ||||
| 93381-16012 | ||||
| 93381-16014 | ||||
| 93381-16016 | ||||
| 94511-00600 | ||||
