CE70LG-EYMRSW (1983)

Toyota Corolla

Production May 1983 - Jul 1987
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )CE70

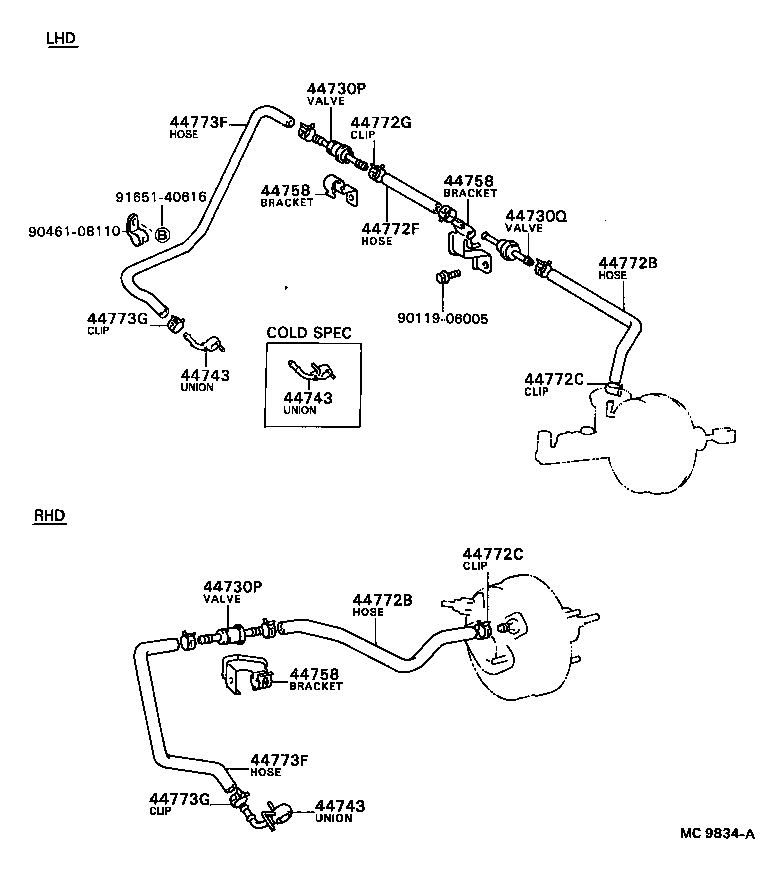

Click highlighted areas on diagram

diagram 44730P 44730P 44730Q 44743 44743 44743 44758 44758 44758 44772B 44772B 44772C 44772C 44772F 44772G 44773F 44773F 44773G 44773G 9011906005 9046108110 9165140616
Part # Description Qty Price
44743 - UNION(FOR VACUUM PUMP)
90405-09048

CE70..LHD

COLD SPEC

 1
90405-09047

CE70

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09048

CE70..LHD

COLD SPEC

 1
90405-09047

CE70

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09048

CE70..LHD

COLD SPEC

 1
90405-09047

CE70

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

KE70..RHD;KE70..SAA;AE71,CE70,TE7#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

KE70..RHD;KE70..SAA;AE71,CE70,TE7#

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-12320

CE70..LHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12320

CE70..LHD

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

AE71,CE70,KE70,TE7#

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

AE71,CE70,KE70,TE7#

 2
Common parts
90119-06005
90461-08110
91651-40616
