CE70LG-EYMRSW (1983)

Toyota Corolla

Production May 1983 - Jul 1987
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )STD..EUG ; (8305- )5F..STD..SA ; (8305- )DX,XL..GEN,SA

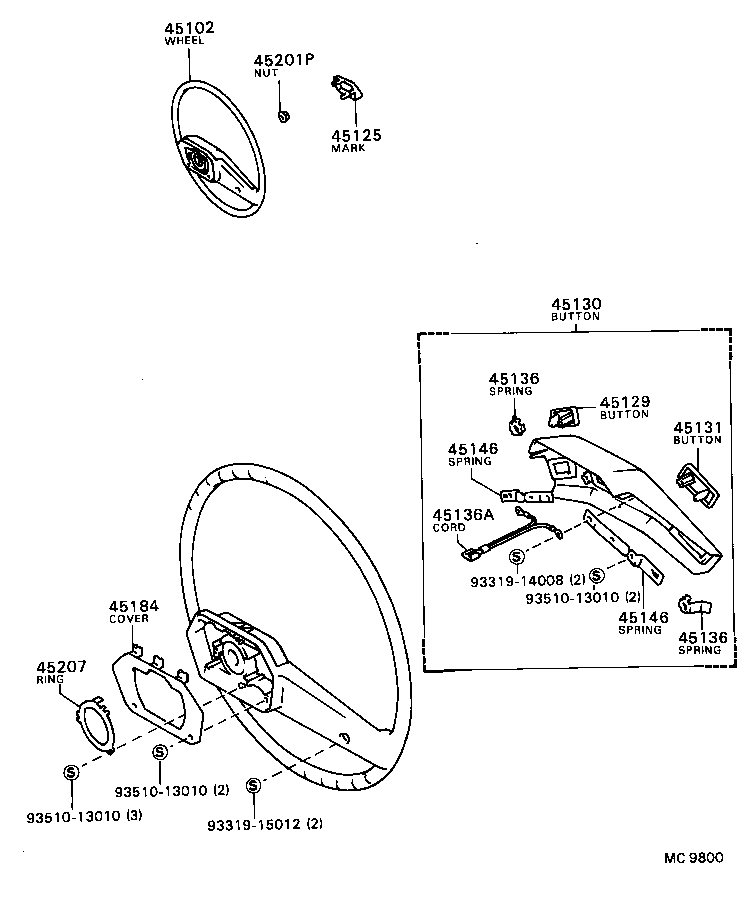

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45136 45136 45136A 45146 45146 45184 45201P 45207 9331914008 9331915012 9351013010 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-1234103

CE70,KE70..STD..EUG

GRAY,GRAY,TRIM1#

 1
45100-1234102

CE70,KE70..STD..EUG

MAROON,RED/MAROON,TRIM3#

 1
45100-1234116

CE70,KE70..STD..EUG

BROWN,BROWN,TRIM4#

 1
45125 - MARK, STEERING WHEEL PAD
45125-1230101

CE70,KE70..STD..EUG

BLACK,BLACK,TRIM2#,4#,8#

 1
45129 - BUTTON, HORN, NO.2
45131-12210

CE70,KE70..STD..EUG

 1
45130 - BUTTON ASSY, HORN
45130-1221202

CE70,KE70..STD..EUG

MAROON,RED/MAROON,TRIM3#

 1
45130-1221203

CE70,KE70..STD..EUG

GRAY,GRAY,TRIM1#

 1
45130-1221216

CE70,KE70..STD..EUG

BROWN,BROWN,TRIM4#

 1
45131 - BUTTON, HORN, NO.1
45129-12110

CE70,KE70..STD..EUG

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-12090

CE70,KE70..STD..EUG

 2
45136 - PLATE, HORN BUTTON CONTACT
45136-12090

CE70,KE70..STD..EUG

 2
45136A - CORD(FOR HORN CONTACT RING)
90945-02026

CE70,KE70..STD..EUG

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-12060

CE70,KE70..STD..EUG

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-12060

CE70,KE70..STD..EUG

 2
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-1205003

CE70,KE70..STD..EUG

GRAY,GRAY,TRIM1#

 1
45184-1205002

CE70,KE70..STD..EUG

MAROON,RED/MAROON,TRIM3#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AE71,CE70,KE70,TE7#

 1
Common parts
93319-14008
93319-15012
93510-13010
