CE70LG-EYMRSW (1983)

Toyota Corolla

Production May 1983 - Jul 1987
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8508)AE71,CE70,TE7#..MTM ; (8508- )AE71..SA

Click highlighted areas on diagram

diagram 33103 33103 33103A 33103A 33103C 33103F 33103Q 33103R 33103R 33142 33142 33146 33146 33283H 9011910066 9011910142 9011910143 9011910161
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-22090

CE70

 1
33103-20101

CE70

 1
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-22090

CE70

 1
33103-20101

CE70

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

CE70

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

CE70

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38040

CE70

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38040

CE70

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-22010

CE70

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-22010

CE70

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-10065

CE70

 1
Common parts
90119-10066
90119-10142
90119-10143
90119-10161

(8508- )CE70

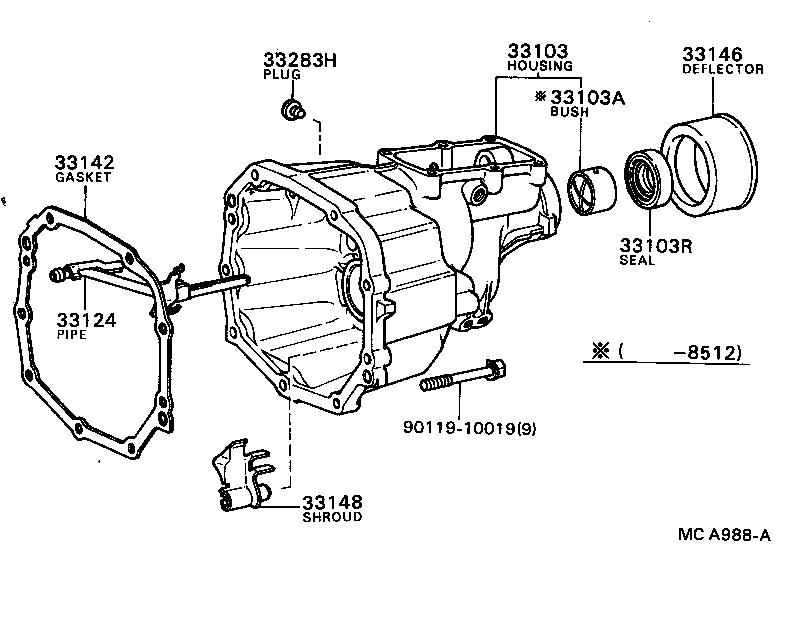

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33124 33142 33146 33148 33283H 9011910019
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-22090

CE70

 1
33103-20101

CE70

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

CE70

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38040

CE70

 1
33124 - PIPE, OIL RECEIVER(MTM)
33106-22010

CE70

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-22010

CE70

 1
33148 - SHROUD, GEAR, NO.1
33148-22010

CE70

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-10065

CE70

 1
Common parts
90119-10019
