CE70LG-EYMRSW (1983)

Toyota Corolla

Production May 1983 - Jul 1987
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8606- )1C

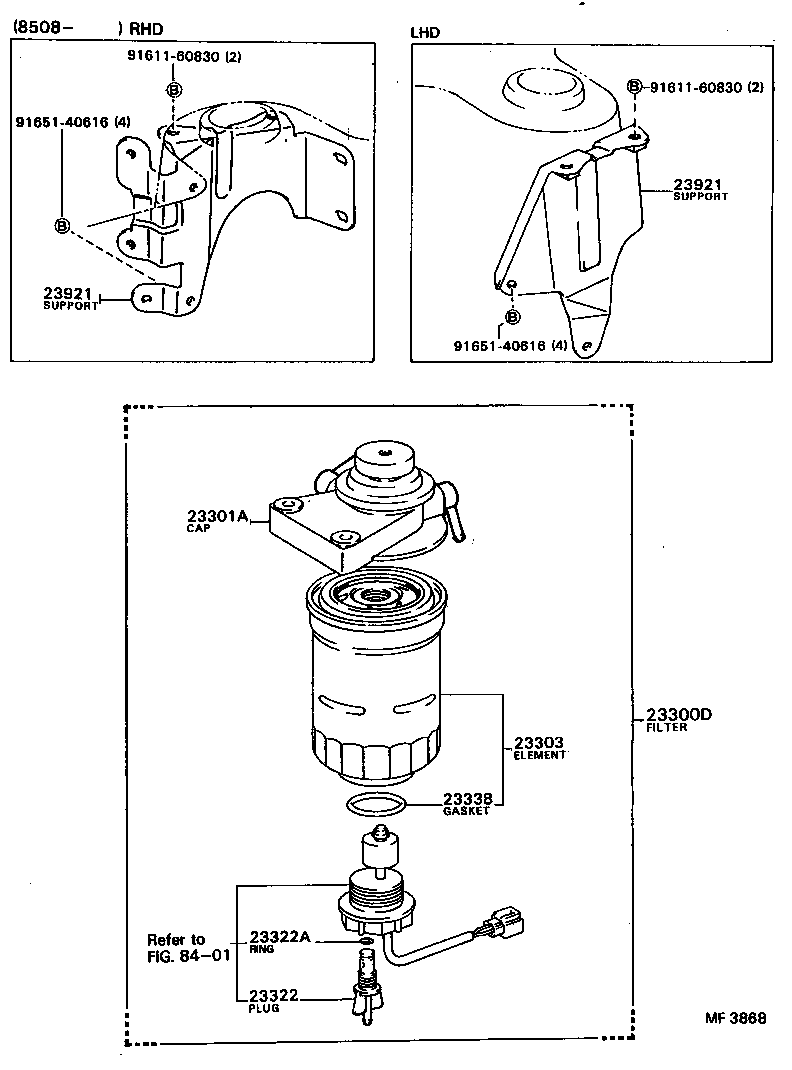

Click highlighted areas on diagram

diagram 23300D 23301A 23303 23322 23322A 23338 23921 8401 9161160830 9161160830 9165140616 9165140616
Part # Description Qty Price
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-64051

1C..CE70..LHD

 1
23301A - CAP ASSY, FUEL FILTER
23301-64060

1C..CE70..LHD

 1
Common parts
91611-60830
91651-40616
Linked diagrams
8401
