CE70LG-EYMRSW (1983)
Toyota Corolla
(8309- )1C

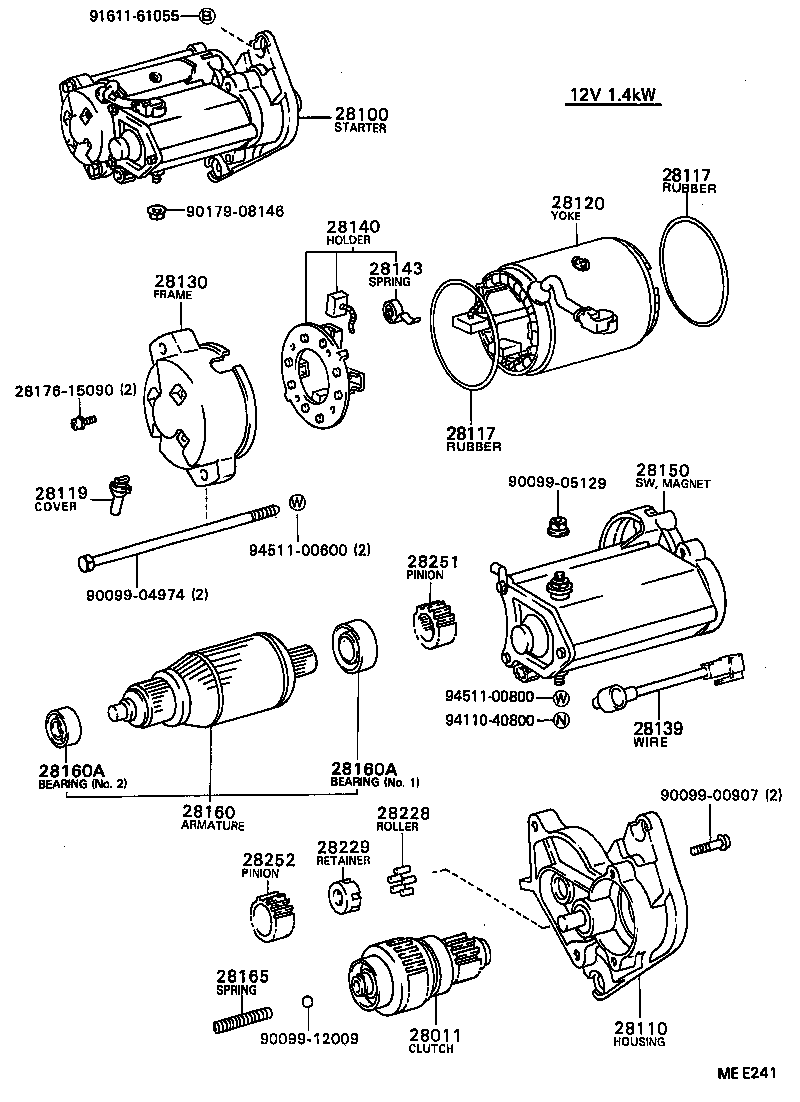

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64020 |
1C..CE70..LHD 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64020 |
1C..CE70..LHD 12V 2.0KW,12V 2.0KW |
1 | ||
| 28100-64100 |
1C..CE70 12V 1.4KW,12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-64070 |
1C..CE70 12V 1.4KW |
1 | ||
| 28115-64020 |
1C..CE70..LHD 12V 2.0KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 90099-14058 |
1C..CE70 12V 2.0KW |
1 | ||
| 90099-14064 |
1C..CE70 12V 1.4KW |
2 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 90099-14058 |
1C..CE70 12V 2.0KW |
1 | ||
| 90099-14064 |
1C..CE70 12V 1.4KW |
2 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-72020 |
1C..CE70 12V 1.4KW |
1 | ||
| 28119-54070 |
1C..CE70..LHD 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64020 |
1C..CE70..LHD 12V 2.0KW |
1 | ||
| 28120-15090 |
1C..CE70 12V 1.4KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-64100 |
1C..CE70 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54070 |
1C..CE70..LHD 12V 2.0KW |
1 | ||
| 28140-15090 |
1C..CE70 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
1C..CE70..LHD 12V 2.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64070 |
1C..CE70 12V 1.4KW |
1 | ||
| 28150-64020 |
1C..CE70..LHD 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
1C..CE70..LHD 12V 2.0KW |
1 | ||
| 28160-15090 |
1C..CE70 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10131 |
1C..CE70..LHD 12V 2.0KW,NO.1 |
1 | ||
| 28253-54070 |
1C..CE70..LHD 12V 2.0KW,NO.2 |
1 | ||
| 90099-10143 |
1C..CE70 12V 1.4KW,NO.1 |
1 | ||
| 90099-10144 |
1C..CE70 12V 1.4KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10131 |
1C..CE70..LHD 12V 2.0KW,NO.1 |
1 | ||
| 28253-54070 |
1C..CE70..LHD 12V 2.0KW,NO.2 |
1 | ||
| 90099-10143 |
1C..CE70 12V 1.4KW,NO.1 |
1 | ||
| 90099-10144 |
1C..CE70 12V 1.4KW,NO.2 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
1C..CE70..LHD 12V 2.0KW |
1 | ||
| 28251-15090 |
1C..CE70 12V 1.4KW |
1 | ||
| 28251-54070 |
1C..CE70..LHD 12V 2.0KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
