CE70L-EEMDSW (1982)

Toyota Corolla

Production Oct 1982 - May 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )CE70

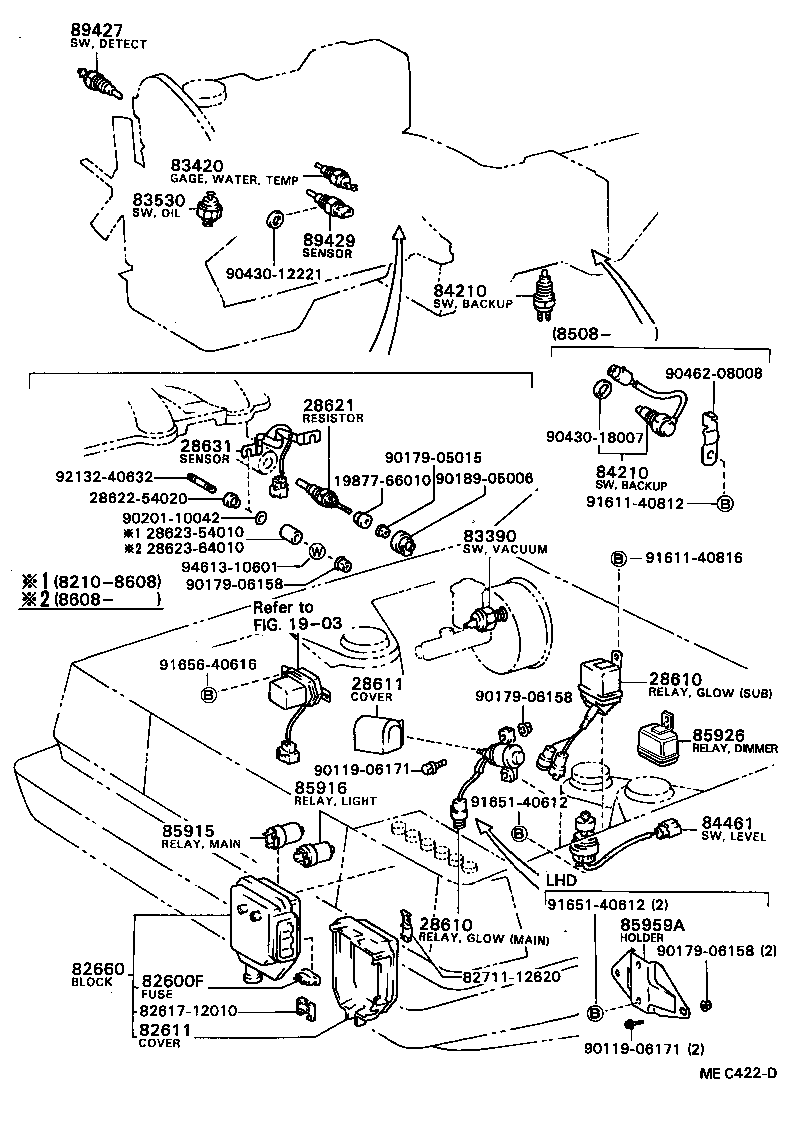

Click highlighted areas on diagram

diagram 1903 1987766010 28610 28610 28611 28621 2862254020 2862354010 2862364010 28631 82600F 82611 8261712010 82660 8271112620 83390 83420 83530 84210 84210 84461 85915 85916 85926 85959A 89427 89429 9011906171 9011906171 9017905015 9017906158 9017906158 9017906158 9018905006 9020110042 9043012221 9043018007 9046208008 9161140812 9161140816 9165140612 9165140612 9165640616 9213240632 9461310601
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09004

AE71,CE70,KE70,TE7#

20A,YELLOW,20A

 1
90982-09003

AE71,CE70,KE70,TE7#

15A,15A

 12
90982-09002

AE71,CE70,KE70,TE7#

10A,10A

 13
82611 - COVER, FUSE BLOCK
82661-12022

CE70..LHD

ENGINE ROOM,*FRG

 1
Common parts
19877-66010
28622-54020
28623-54010
28623-64010
82617-12010
82711-12620
90119-06171
90179-05015
90179-06158
90189-05006
90201-10042
90430-12221
90430-18007
90462-08008
91611-40812
91611-40816
91651-40612
91656-40616
92132-40632
94613-10601
Linked diagrams
1903
