CE70L-EEMDSW (1982)

Toyota Corolla

Production Oct 1982 - May 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C..LHD

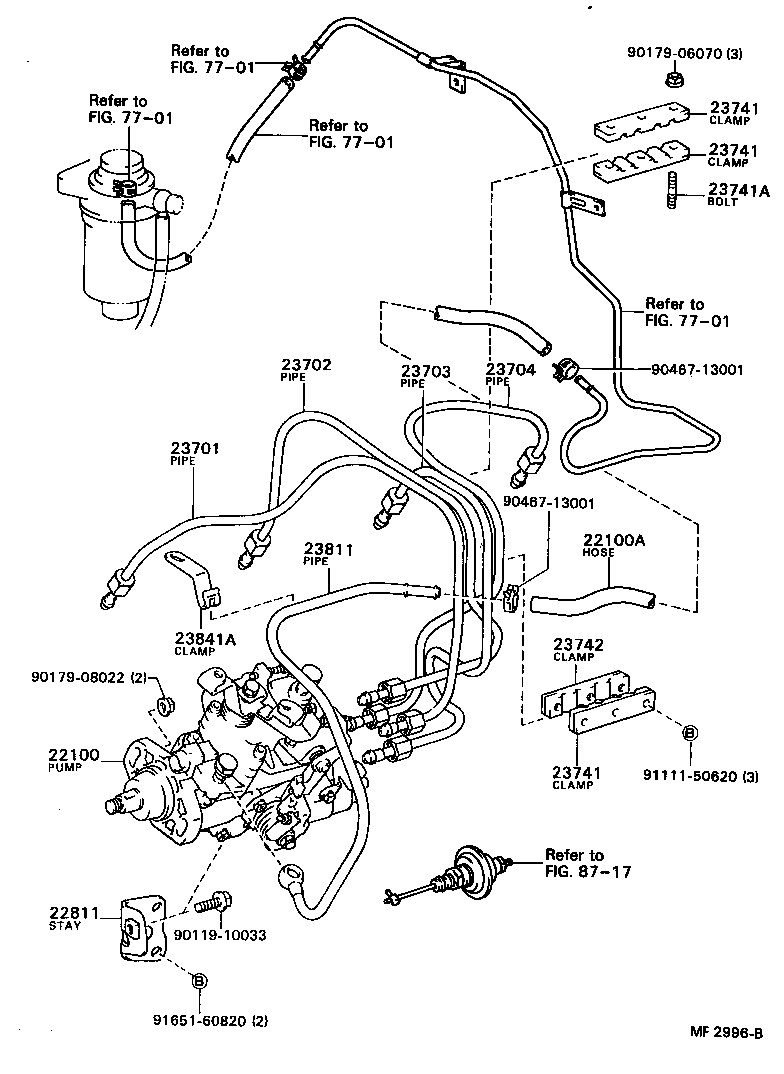

Click highlighted areas on diagram

diagram 22100 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741A 23742 23811 23841A 7701 7701 7701 7701 8717 9011910033 9017906070 9017908022 9046713001 9046713001 9111150620 9165160820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-64090

1C..CE70

 1
22100-64110

1C..CE70..LHD

COLD SPEC

 1
Common parts
90119-10033
90179-06070
90179-08022
90467-13001
91111-50620
91651-60820
Linked diagrams
7701
8717
