CE70L-EEMDSW (1982)

Toyota Corolla

Production Oct 1982 - May 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C

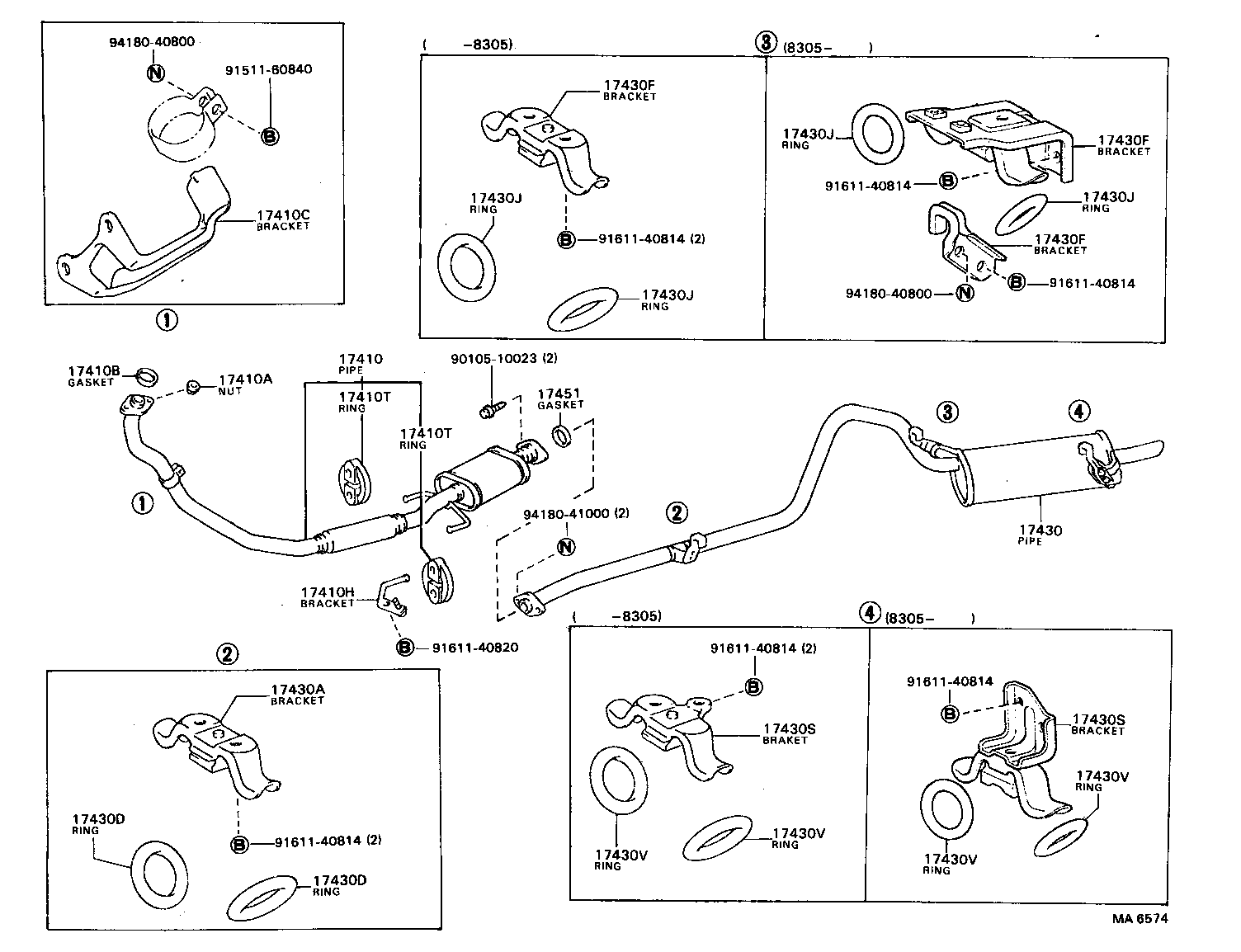

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410H 17410T 17410T 17430 17430A 17430D 17430D 17430F 17430F 17430F 17430J 17430J 17430J 17430J 17430S 17430S 17430V 17430V 17430V 17430V 17451 9010510023 9151160840 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140820 9418040800 9418040800 9418041000
Part # Description Qty Price
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

4AC,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

4A#,1C,3TC..AE71,CE70,TE72

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64040

1C..CE70

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-13020

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17506-13020

4AC,1C,4K#,2T#,3TC..AE71,CE70,KE70,TE7#..CP,LB,SED

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17506-13020

4AC,1C,4K#,2T#,3TC..AE71,CE70,KE70,TE7#..CP,LB,SED

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17506-13020

4AC,1C,4K#,2T#,3TC..AE71,CE70,KE70,TE7#..CP,LB,SED

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-13010

4AC,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#..CP,LB,SED

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-13010

4AC,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#..CP,LB,SED

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

4A#,1C,4K#,2T#,3T#..AE71,CE70,KE70,TE7#

 2
Common parts
90105-10023
91511-60840
91611-40814
91611-40820
94180-40800
94180-41000
