CE70L-EEMDSW (1982)

Toyota Corolla

Production Oct 1982 - May 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C

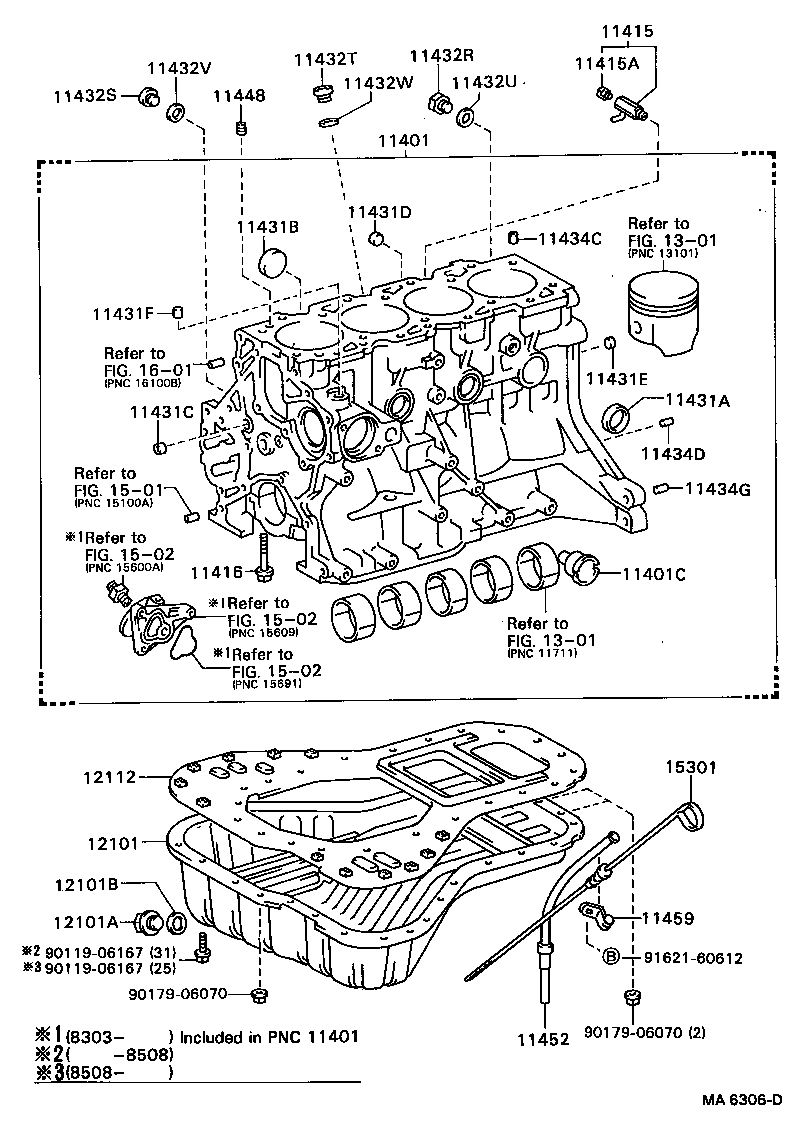

Click highlighted areas on diagram

diagram 11401 11401C 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11431F 11432R 11432S 11432T 11432U 11432V 11432W 11434C 11434D 11434G 11448 11452 11459 12101 12101A 12101B 12112 1301 1301 1501 1502 1502 1502 15301 1601 9011906167 9011906167 9017906070 9017906070 9162160612
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69096

1C..CE70

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1C..CE70

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1C..CE70

 1
Common parts
90119-06167
90179-06070
91621-60612
Linked diagrams
1301
1501
1502
1601
