CE70L-EDMDSW (1982)

Toyota Corolla

Production Oct 1982 - May 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C

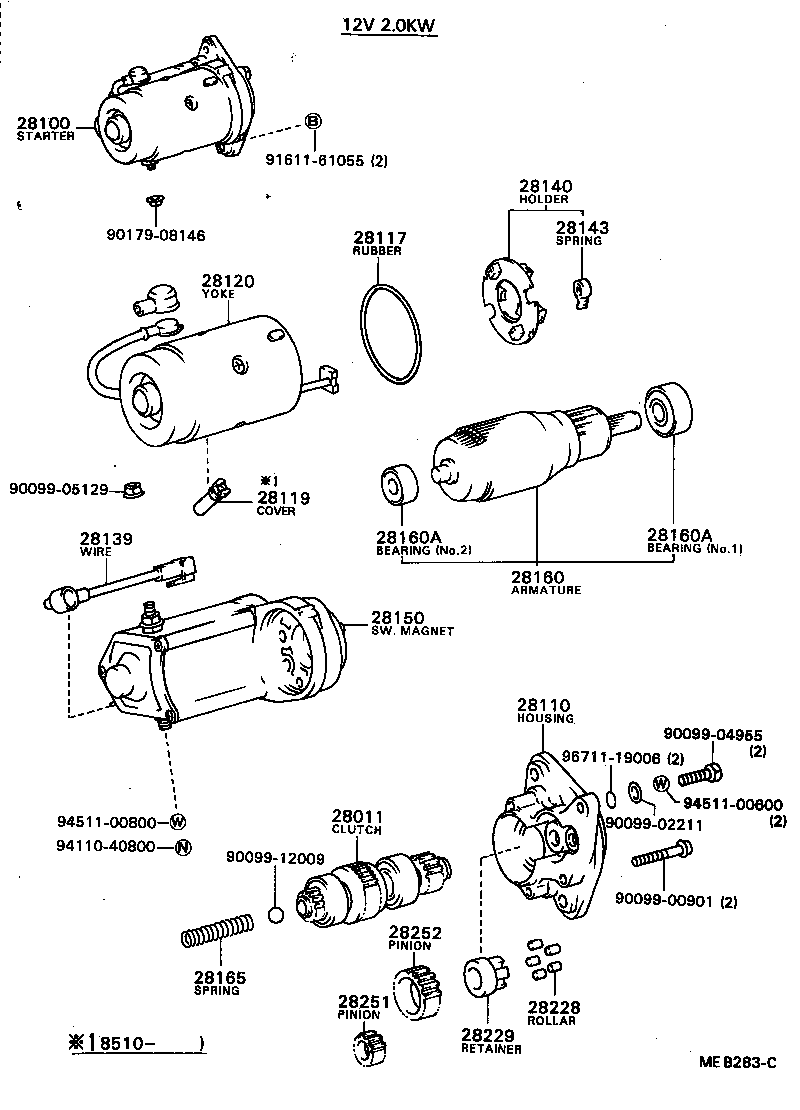

Click highlighted areas on diagram

diagram 28011 28100 28110 28117 28119 28120 28139 28140 28143 28150 28160 28160A 28160A 28165 28228 28229 28251 28252 9009900901 9009902211 9009904955 9009905129 9009912009 9017908146 9161161055 9411040800 9451100600 9451100800 9671119006
Part # Description Qty Price
Common parts
90099-00901
90099-02211
90099-04955
90099-05129
90099-12009
90179-08146
91611-61055
94110-40800
94511-00600
94511-00800
96711-19006
