AE71R-EEMDCQ (1983)
Toyota Corolla
(7908-8508)AE71,CE70,KE70,TE72..RHD ; (7908-8508)KE70..DV,SED..LHD..GL,STD ; (7908-

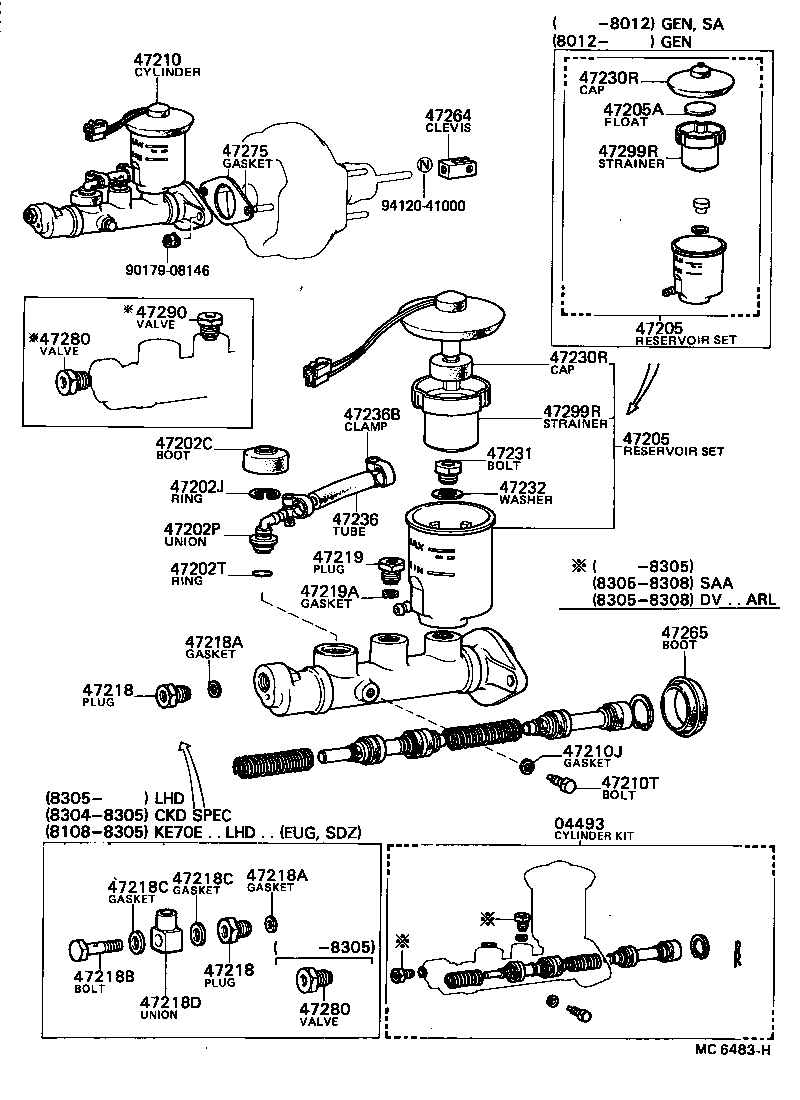

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-20100 |
AE71,KE70..ARL |
1 | ||
| 04493-20100 |
AE71,KE70..ARL |
1 | ||
| 04493-20100 |
AE71,KE70..ARL |
1 | ||
| 04493-20100 |
AE71,KE70..ARL |
1 | ||
| 04493-20100 |
AE71,KE70..4D..ARL |
1 | ||
| 04493-20100 |
AE71,KE70..4D..ARL |
1 | ||
| 04493-20100 |
AE71,KE70..4D..ARL |
1 | ||
| 04493-20100 |
AE71,KE70..4D..ARL |
1 | ||
| 47202C - BOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 47265-20060 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47265-20060 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47265-20060 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47265-20060 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 96151-02000 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 96151-02000 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 96151-02000 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 96151-02000 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90407-10003 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 90407-10003 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 90407-10003 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 90407-10003 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) | ||||
| 90301-14001 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 90301-14001 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 90301-14001 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 90301-14001 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-12230 |
AE71,KE70..ARL |
1 | ||
| 47201-12230 |
AE71,KE70..ARL |
1 | ||
| 47201-12230 |
AE71,KE70..ARL |
1 | ||
| 47201-12230 |
AE71,KE70..ARL |
1 | ||
| 47201-12230 |
AE71,KE70..4D..ARL |
1 | ||
| 47201-12230 |
AE71,KE70..4D..ARL |
1 | ||
| 47201-12230 |
AE71,KE70..4D..ARL |
1 | ||
| 47201-12230 |
AE71,KE70..4D..ARL |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-06104 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-06104 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-06104 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90109-06008 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90109-06008 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90109-06008 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 90430-09253 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47231-30010 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47231-30010 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47231-30010 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47232-30010 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47232-30010 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47232-30010 |
KE70..RHD;TE72..GL,SE,XE;AE71,CE70,TE71;KE70..SED..LHD..4F..DX..EUG;KE70..(DV,SED)..LHD..(GL,STD);KE70..(CP,LB,WG)..LHD..(GEN,SAA);KE70..SED..LHD..(2FC,3FC,5F)..DX;KE70..(CP,LB,WG)..LHD..(EUG,SDZ);KE70..SED..LHD..4F..DX..(GEN,SAA) |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47234-14010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47234-14010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47234-14010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47265-20050 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47265-20050 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47265-20050 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47275-14010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47275-14010 |
AE71,CE70,KE70,TE7# |
1 | ||
| 47275-14010 |
AE71,CE70,KE70,TE7# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
