AE71R-EEMDCQ (1983)
Toyota Corolla
Production
May 1983
-
Oct 1984
Engine
4AC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )4A#

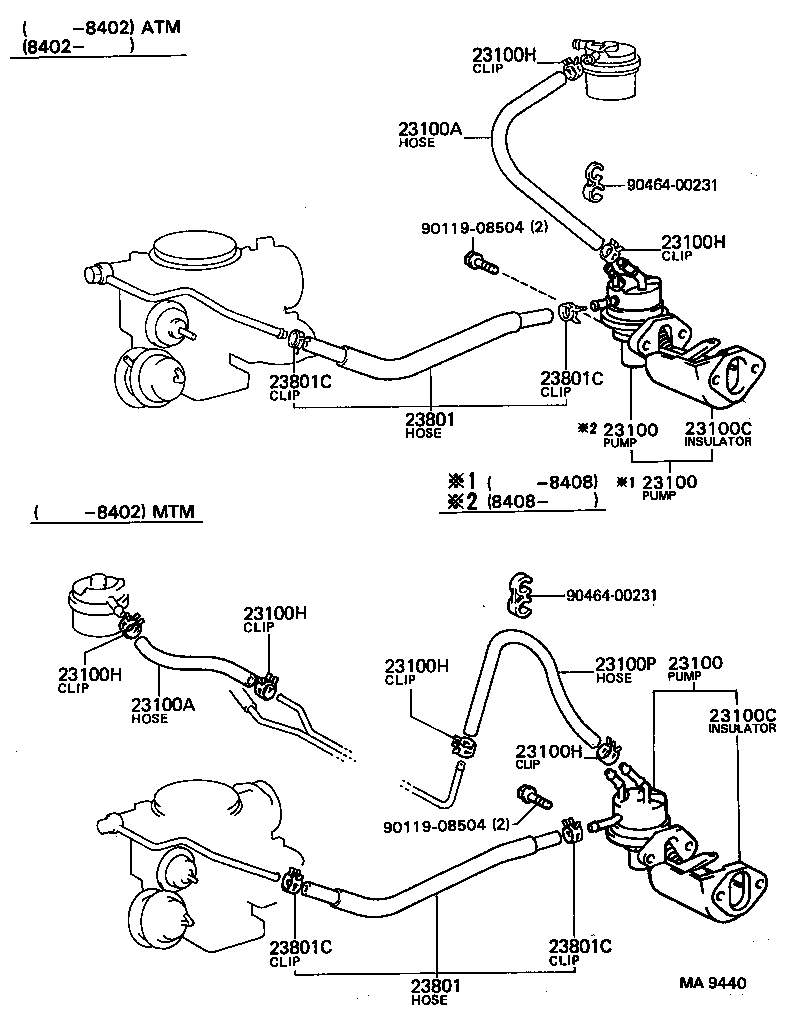

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-19146 |
4AC..AE71 |
1 | ||
| 23100-19145 |
4AC..AE71 |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-19146 |
4AC..AE71 |
1 | ||
| 23100-19145 |
4AC..AE71 |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-19146 |
4AC..AE71 |
1 | ||
| 23100-19145 |
4AC..AE71 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06020 |
4AC..AE71..MTM *H,L=150 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06020 |
4AC..AE71..MTM *H,L=150 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
4 | ||
| 23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE) | ||||
| 95332-06030 |
4AC..AE71..MTM *H,L=280 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4A#..AE71 |
2 | ||
| Common parts | ||||
| 90119-08504 | ||||
| 90464-00231 | ||||
