AE71LG-EWHDS (1985)

Toyota Corolla

Production Aug 1985 - Jul 1987
Engine 4A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )AE71..GEN

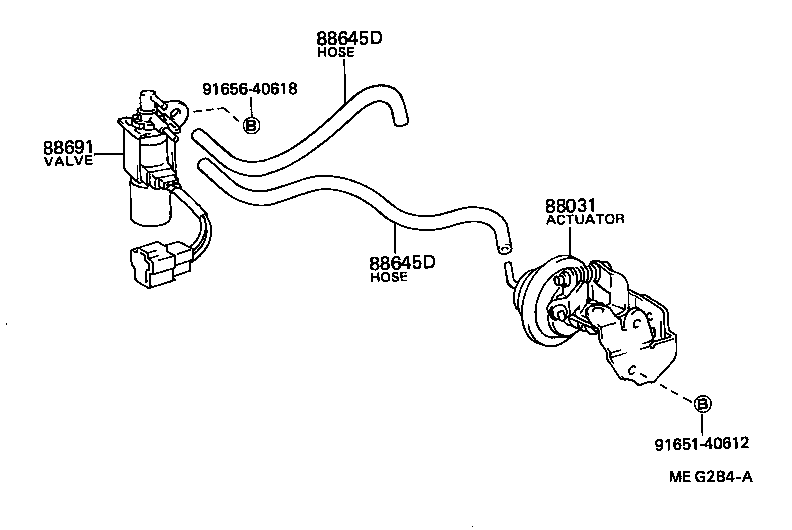

Click highlighted areas on diagram

diagram 88031 88645D 88645D 88691 9165140612 9165640618
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AE71

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

AE71..GEN

*H,L=450,MARK=#*

 1
95411-10030

AE71..GEN

L=300,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19960

AE71..GEN

*H,L=450,MARK=#*

 1
95411-10030

AE71..GEN

L=300,MARK=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-30430

AE71..GEN

 1
Common parts
91651-40612
91656-40618
