AE71LG-EWHDS (1985)

Toyota Corolla

Production Aug 1985 - Jul 1987
Engine 4A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )AE71..GEN

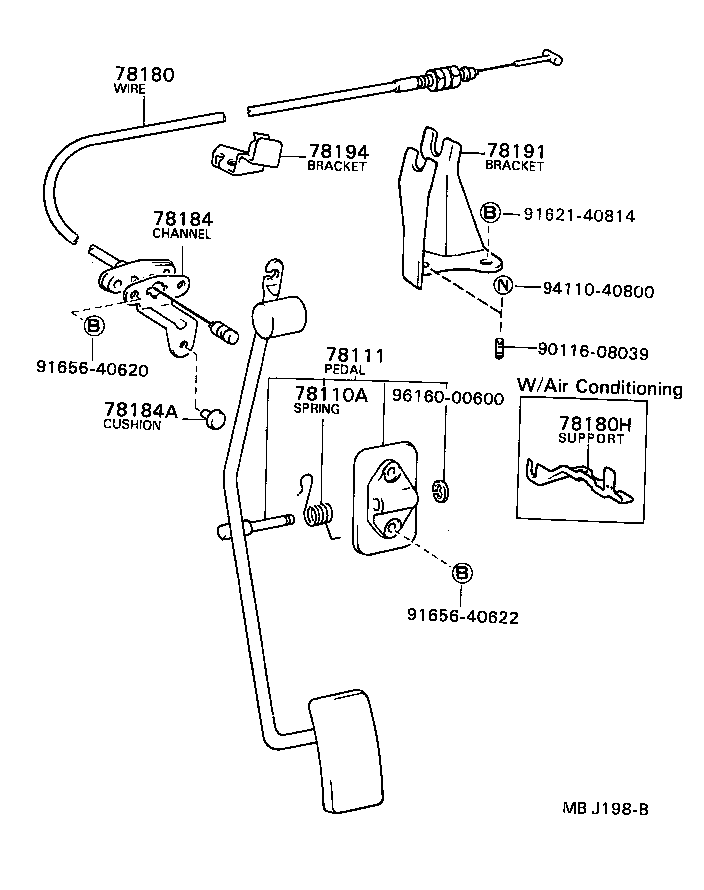

Click highlighted areas on diagram

diagram 78110A 78111 78180 78180H 78184 78184A 78191 78194 9011608039 9162140814 9165640620 9165640622 9411040800 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18398

KE70..RHD;AE71,CE70,TE7#

 1
78111 - PEDAL, ACCELERATOR
78010-12070

AE71..GEN

 1
78180 - WIRE ASSY, ACCELERATOR
78180-12400

AE71..GEN

 1
78180H - BRACKET, ACCELERATOR CONTROL CABLE
21524-16110

AE71..GEN

W/AIR CONDITIONING

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

KE70..RHD;AE71,CE70,TE7#

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-12140

AE71..GEN

 1
78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2
78186-12140

AE71..GEN

 1
Common parts
90116-08039
91621-40814
91656-40620
91656-40622
94110-40800
96160-00600
