AE71LG-EWHDS (1985)

Toyota Corolla

Production Aug 1985 - Jul 1987
Engine 4A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )AE71..GEN

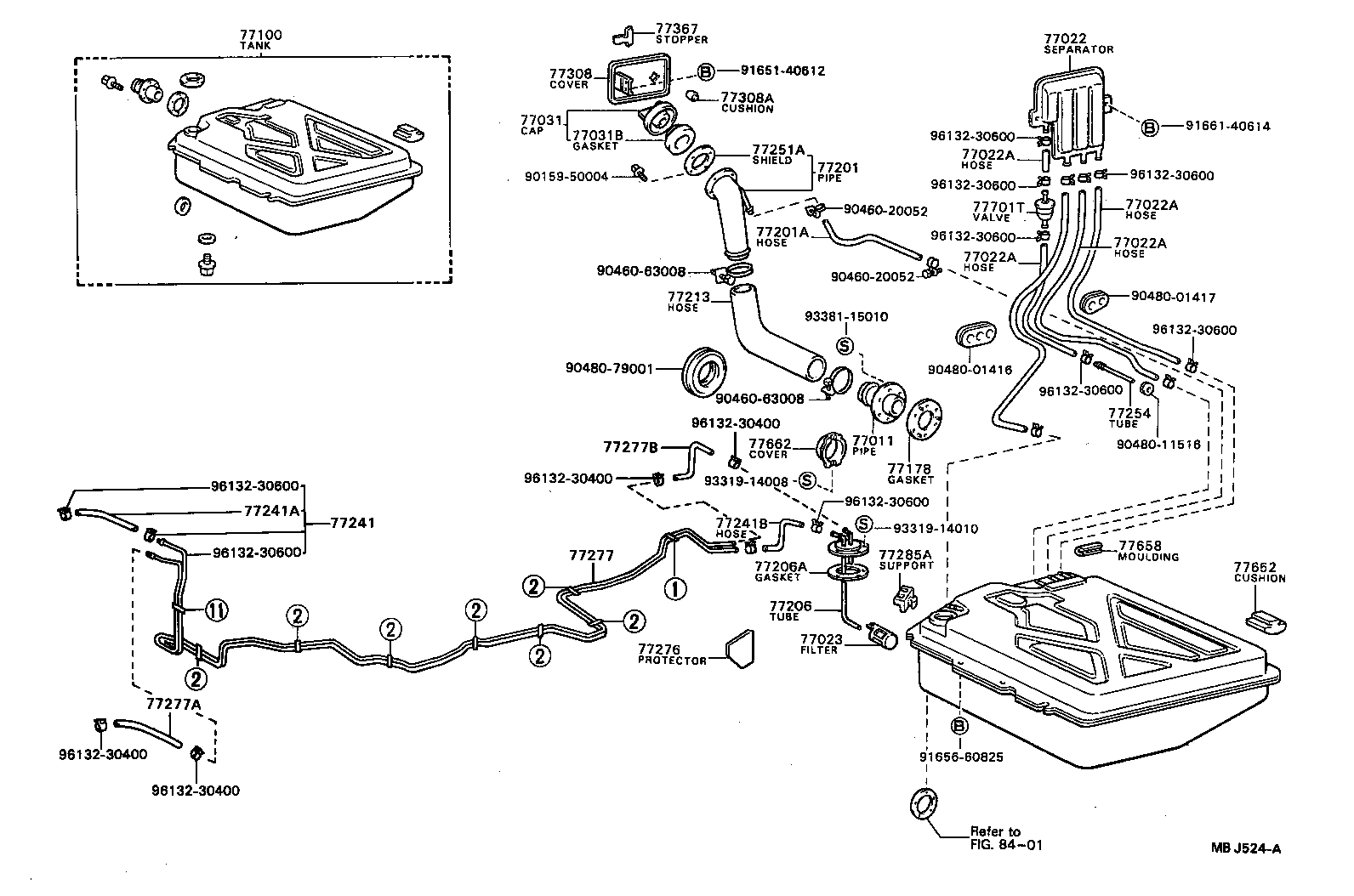

Click highlighted areas on diagram

diagram 77011 77022 77022A 77022A 77022A 77022A 77023 77031 77031B 77100 77178 77201 77201A 77206 77206A 77213 77241 77241A 77241B 77251A 77254 77276 77277 77277A 77277B 77285A 77308 77308A 77367 77652 77658 77662 77701T 8401 9015950004 9046020052 9046020052 9046063008 9046063008 9048001416 9048001417 9048011516 9048079001 9165140612 9165660825 9166140614 9331914008 9331914010 9338115010 9613230400 9613230400 9613230400 9613230400 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-13010

AE71,CE70,KE70,TE71..DV,WG

 1
77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77271-13010

AE71,CE70,KE70,TE71..DV,WG

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06060

AE71,CE70,KE70,TE71..DV,WG

*H,L=500

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06060

AE71,CE70,KE70,TE71..DV,WG

*H,L=500

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06060

AE71,CE70,KE70,TE71..DV,WG

*H,L=500

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06060

AE71,CE70,KE70,TE71..DV,WG

*H,L=500

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

AE71,KE70,TE7#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

AE71,CE70,KE70,TE7#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-13020

AE71,CE70,KE70,TE71..DV,WG

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-13071

AE71,KE70..GEN,SA

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-13060

AE71..GEN

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

AE71,CE70,KE70,TE7#

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-13040

AE71,CE70,KE70,TE71..DV,WG

 1
77241 - TUBE, FUEL MAIN, NO.1
77205-13110

AE71..GEN

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06020

AE71,KE70,TE7#

*H,L=150

 1
77259-13020

AE71..GEN

 1
77251A - SHIELD, FUEL TANK, INLET, NO.2
77291-22010

AE71,CE70,KE70,TE71..DV,WG

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-13120

AE71..GEN

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-04024

AE71

*H,L=240

 1
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-13020

AE71,KE70,TE71..DV,WG

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-06001

AE71,CE70,KE70,TE71..DV,WG

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-13020

AE71,CE70,KE70,TE71..DV,WG

 3
77658 - MOULDING, FUEL TANK EDGE
77658-12010

AE71,CE70,KE70,TE7#

 2
77662 - COVER, FUEL TANK GAGE
77662-13010

AE71,CE70,KE70,TE71..DV,WG

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA

 1
Common parts
90159-50004
90460-20052
90460-63008
90480-01416
90480-01417
90480-11516
90480-79001
91651-40612
91656-60825
91661-40614
93319-14008
93319-14010
93381-15010
96132-30400
96132-30600
Linked diagrams
8401
